Arcol HS50F 10K F, 10 kΩ 50 W Aluminium Chassis Mount Resistor ±1 %
- RS Stock No.:
- 185-9367
- Mfr. Part No.:
- HS50F 10K F
- Brand:
- Arcol
Bulk discount available
Subtotal (1 pack of 5 units)*
£57.25
(exc. VAT)
£68.70
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 185 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £11.45 | £57.25 |
| 25 - 45 | £11.152 | £55.76 |
| 50 - 95 | £10.866 | £54.33 |
| 100 + | £10.59 | £52.95 |
*price indicative
- RS Stock No.:
- 185-9367
- Mfr. Part No.:
- HS50F 10K F
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol | |
| Resistance | 10kΩ | |
| Product Type | Chassis Mount Resistor | |
| Power Rating | 50W | |
| Series | HS50F | |
| Package/Case | Aluminium | |
| Temperature Coefficient | 25 ppm/°C | |
| Tolerance | ±1 % | |
| Technology | Aluminium | |
| Automotive Standard | No | |
| Termination Style | Wire | |
| Overall Length | 49.1mm | |
| Maximum Operating Temperature | 200°C | |
| Pin Count | 2 | |
| Overall Width | 14.2mm | |
| Standards/Approvals | RoHS | |
| Overall Height | 14.8mm | |
| Select all | ||
|---|---|---|
Brand Arcol | ||
Resistance 10kΩ | ||
Product Type Chassis Mount Resistor | ||
Power Rating 50W | ||
Series HS50F | ||
Package/Case Aluminium | ||
Temperature Coefficient 25 ppm/°C | ||
Tolerance ±1 % | ||
Technology Aluminium | ||
Automotive Standard No | ||
Termination Style Wire | ||
Overall Length 49.1mm | ||
Maximum Operating Temperature 200°C | ||
Pin Count 2 | ||
Overall Width 14.2mm | ||
Standards/Approvals RoHS | ||
Overall Height 14.8mm | ||

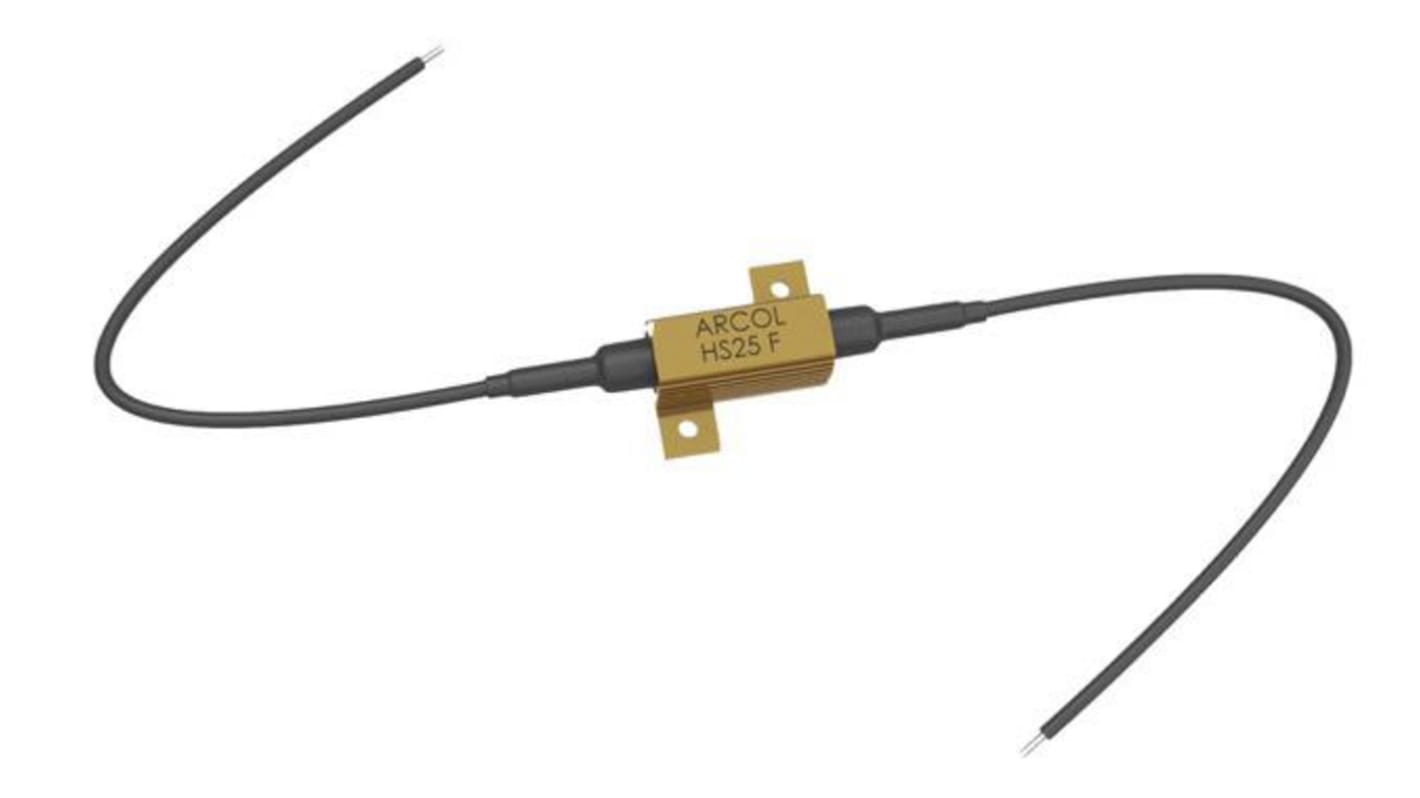

Leaded version of ARCOL’s aluminium housed resistor, comes with factory fitted cable terminations for ease of assembly into your application.
High Power to volume
Wound to maximise High Pulse Capability
200 mm flying lead terminations
Radox 1800V Traction Cable
Values from R005 to 70K
