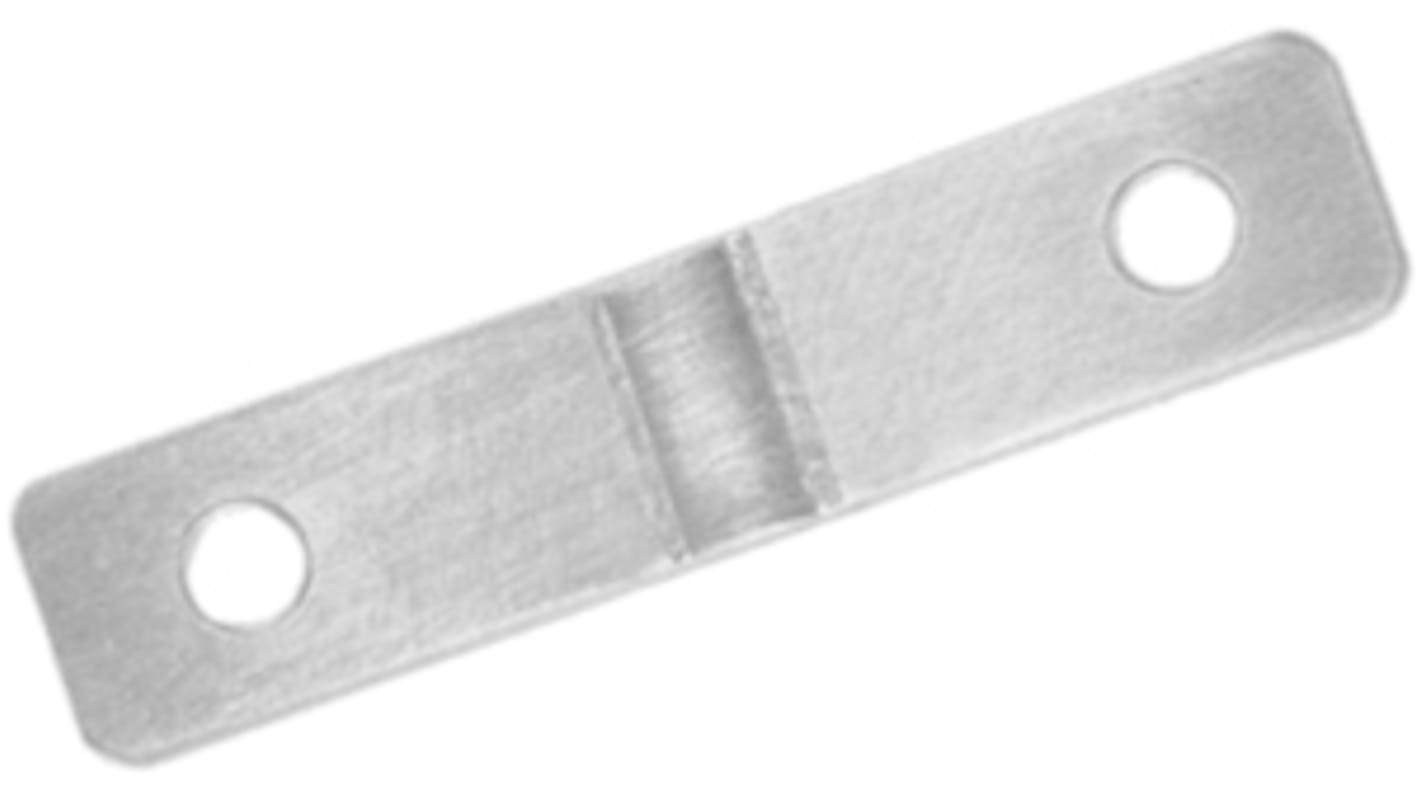

Vishay, 50μΩ 36W Metal Strip Chassis Mount Resistor WSBS8518L0500JK14 ±5%
- RS Stock No.:
- 177-1401
- Mfr. Part No.:
- WSBS8518L0500JK14
- Brand:
- Vishay
Subtotal (1 bag of 100 units)*
£652.00
(exc. VAT)
£782.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 + | £6.52 | £652.00 |
*price indicative
- RS Stock No.:
- 177-1401
- Mfr. Part No.:
- WSBS8518L0500JK14
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Resistance | 50µΩ | |
| Power Rating | 36W | |
| Series | WSBS8518 | |
| Package/Case | 8518 | |
| Tolerance | ±5% | |
| Technology | Metal Strip | |
| Termination Style | Screw | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +170°C | |
| Minimum Temperature Coefficient | -200ppm/°C | |
| Maximum Temperature Coefficient | +200ppm/°C | |
| Dimensions | 85 x 38.1 x 27.7mm | |
| Overall Width | 38.1mm | |
| Overall Length | 85mm | |
| Overall Height | 27.7mm | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Resistance 50µΩ | ||
Power Rating 36W | ||
Series WSBS8518 | ||
Package/Case 8518 | ||
Tolerance ±5% | ||
Technology Metal Strip | ||
Termination Style Screw | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +170°C | ||
Minimum Temperature Coefficient -200ppm/°C | ||
Maximum Temperature Coefficient +200ppm/°C | ||
Dimensions 85 x 38.1 x 27.7mm | ||
Overall Width 38.1mm | ||
Overall Length 85mm | ||
Overall Height 27.7mm | ||
- COO (Country of Origin):
- US
High power to resistor size ratio
Sn plating assists with PCB mounting and corrosion protection
Proprietary processing technique produces extremely low resistance values
Sn plating assists with PCB mounting and corrosion protection
Proprietary processing technique produces extremely low resistance values
