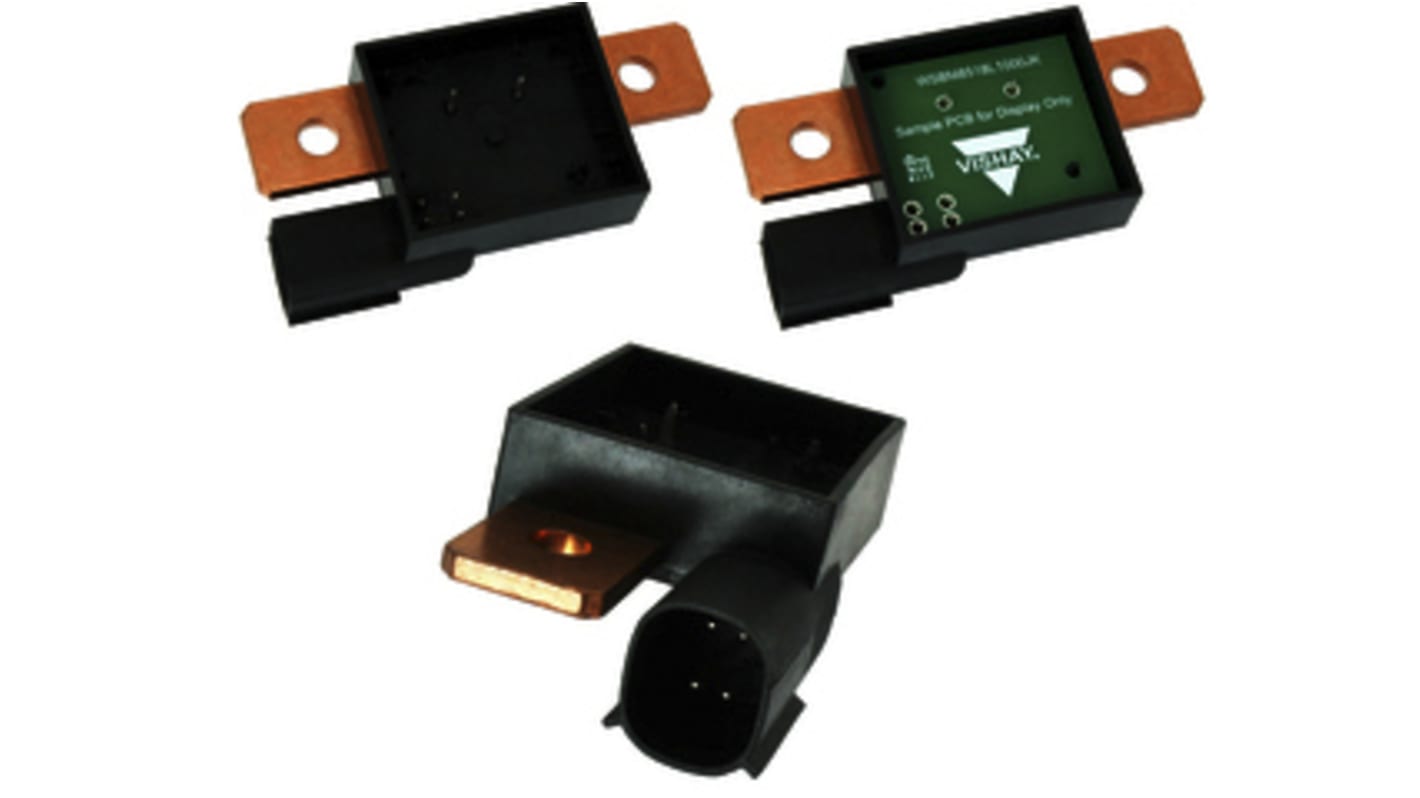

Vishay, 50μΩ 36W Metal Strip Chassis Mount Resistor WSBM8518L0500JK ±5%
- RS Stock No.:
- 177-1406
- Mfr. Part No.:
- WSBM8518L0500JK
- Brand:
- Vishay
Bulk discount available
Subtotal (1 bag of 10 units)*
£144.97
(exc. VAT)
£173.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 10 | £14.497 | £144.97 |
| 20 + | £13.773 | £137.73 |
*price indicative
- RS Stock No.:
- 177-1406
- Mfr. Part No.:
- WSBM8518L0500JK
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Resistance | 50µΩ | |
| Power Rating | 36W | |
| Series | WSBS8518 | |
| Package/Case | 8518 | |
| Tolerance | ±5% | |
| Technology | Metal Strip | |
| Termination Style | Screw | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +170°C | |
| Minimum Temperature Coefficient | -200ppm/°C | |
| Maximum Temperature Coefficient | +200ppm/°C | |
| Dimensions | 85 x 38.1 x 27.7mm | |
| Overall Length | 85mm | |
| Overall Width | 38.1mm | |
| Overall Height | 27.7mm | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Resistance 50µΩ | ||
Power Rating 36W | ||
Series WSBS8518 | ||
Package/Case 8518 | ||
Tolerance ±5% | ||
Technology Metal Strip | ||
Termination Style Screw | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +170°C | ||
Minimum Temperature Coefficient -200ppm/°C | ||
Maximum Temperature Coefficient +200ppm/°C | ||
Dimensions 85 x 38.1 x 27.7mm | ||
Overall Length 85mm | ||
Overall Width 38.1mm | ||
Overall Height 27.7mm | ||
- COO (Country of Origin):
- US
High power to resistor size ratio
Proprietary processing technique produces extremely low resistance values
All welded construction
Proprietary processing technique produces extremely low resistance values
All welded construction
