- RS Stock No.:
- 175-2454
- Brand:
- RS PRO
Available to back order for despatch 08/05/2024
Added
Price Each
£10.74
(exc. VAT)
£12.89
(inc. VAT)
Units | Per unit |
1 - 9 | £10.74 |
10 - 24 | £10.00 |
25 - 49 | £9.23 |
50 - 99 | £8.48 |
100 + | £7.63 |
- RS Stock No.:
- 175-2454
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

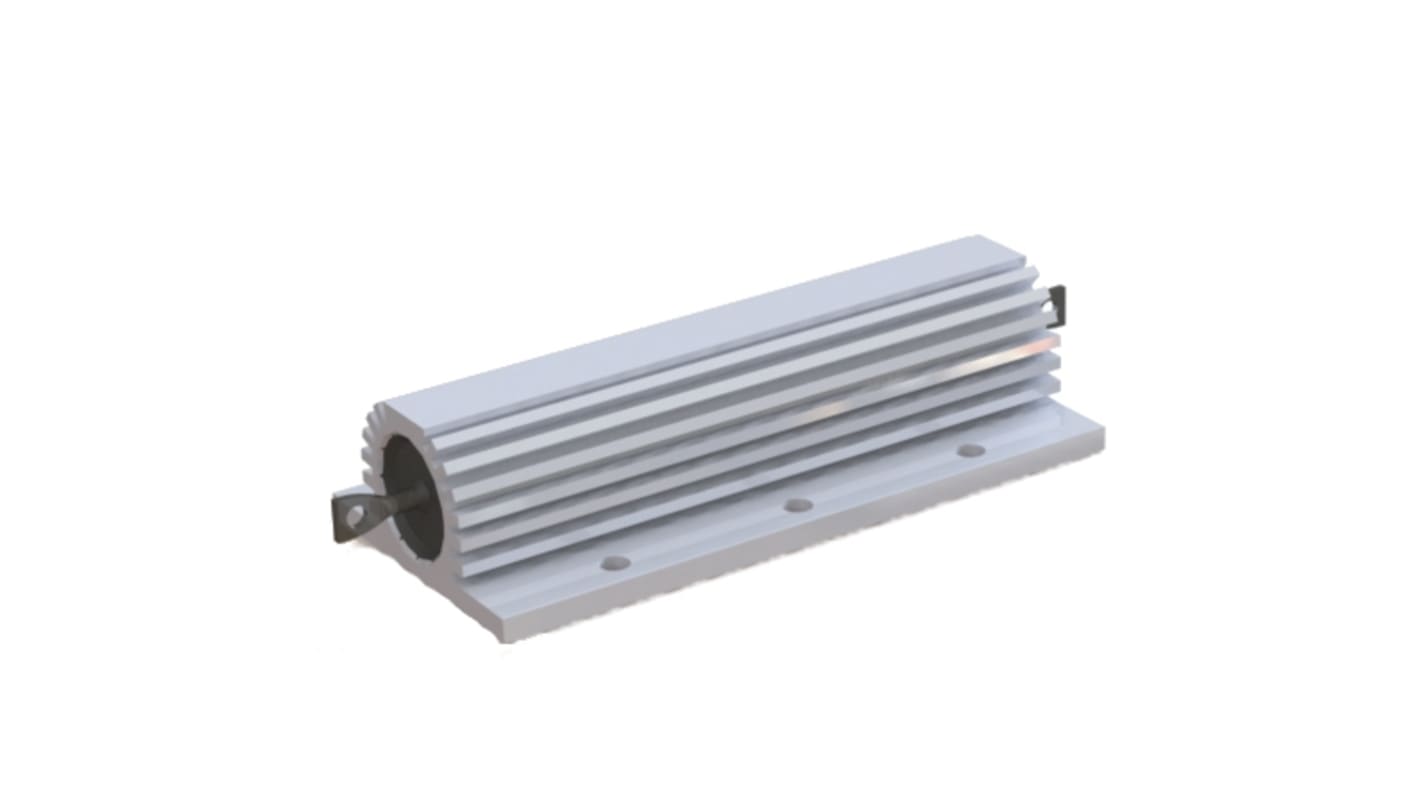

Designed for direct heatsink mounting with thermal compound to achieve maximum performance
High Power to Volume
Wound to maximize High Pulse Capability
Values from R01 to 100K
Wound to maximize High Pulse Capability
Values from R01 to 100K
Specifications
Attribute | Value |
---|---|
Resistance | 4.7Ω |
Power Rating | 150W |
Series | RS150 |
Package/Case | Aluminium Housed |
Tolerance | ±5% |
Technology | Wire Wound |
Maximum Operating Temperature | +200°C |
Dimensions | 97.7 x 47.5 x 24.1mm |
Overall Width | 47.5mm |
Overall Height | 24.1mm |
Overall Length | 97.7mm |
