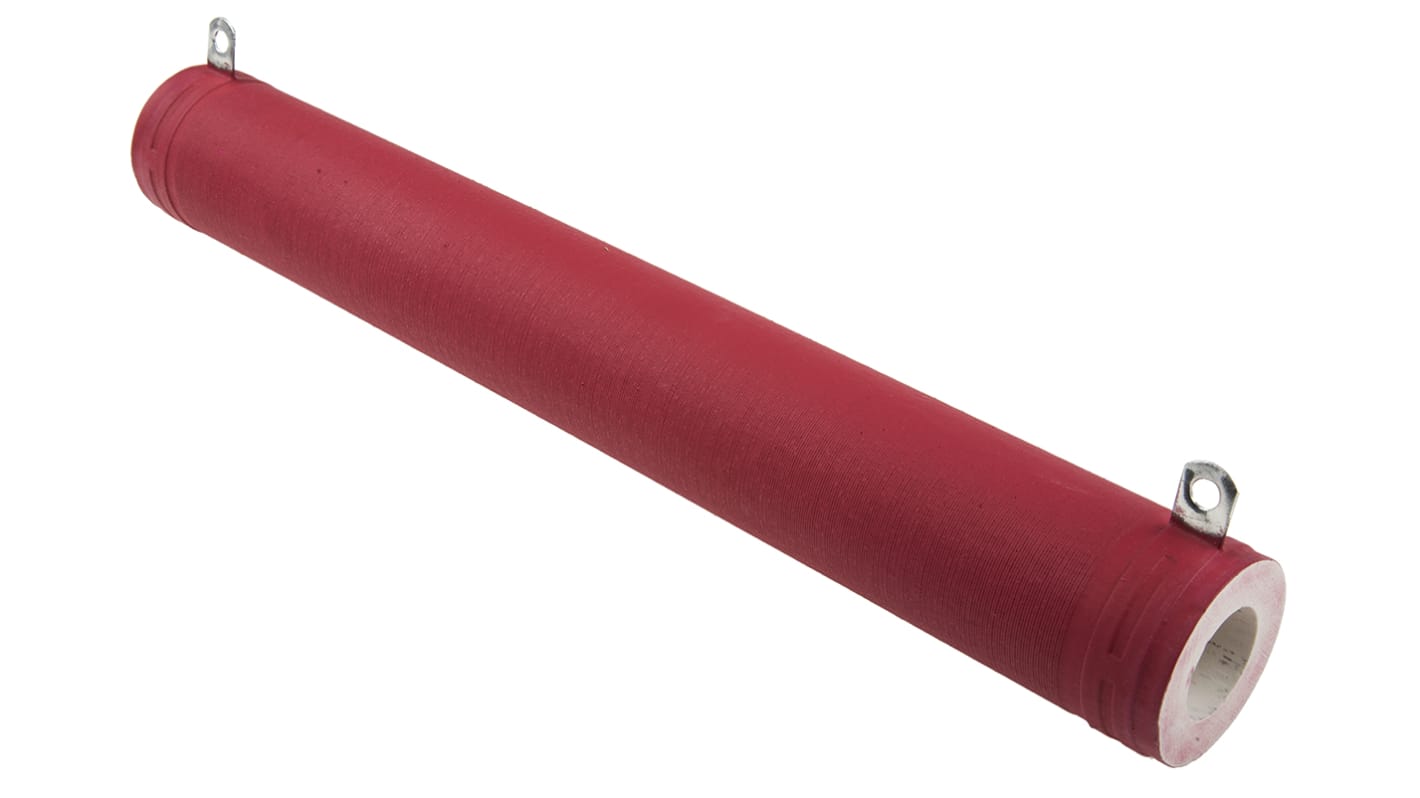

RS PRO, 470Ω 700W Wire Wound Chassis Mount Resistor ±5%
- RS Stock No.:
- 146-8325
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£150.43
(exc. VAT)
£180.52
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 19 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £150.43 |
| 5 - 9 | £146.37 |
| 10 - 24 | £142.46 |
| 25 - 49 | £138.85 |
| 50 + | £135.39 |
*price indicative
- RS Stock No.:
- 146-8325
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 470Ω | |
| Power Rating | 700W | |
| Series | RSSC | |
| Package/Case | Tubular | |
| Tolerance | ±5% | |
| Technology | Wire Wound | |
| Termination Style | Solder Lug | |
| Minimum Temperature Coefficient | -260ppm/°C | |
| Maximum Temperature Coefficient | +260ppm/°C | |
| Dimensions | 51 (Dia.) x 375mm | |
| Overall Diameter | 51mm | |
| Overall Length | 375mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 470Ω | ||
Power Rating 700W | ||
Series RSSC | ||
Package/Case Tubular | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Termination Style Solder Lug | ||
Minimum Temperature Coefficient -260ppm/°C | ||
Maximum Temperature Coefficient +260ppm/°C | ||
Dimensions 51 (Dia.) x 375mm | ||
Overall Diameter 51mm | ||
Overall Length 375mm | ||
- COO (Country of Origin):
- MX
The RS PRO Tubular wire wound resistors of RSSC series is a fixed resistors that are ideal for applications requiring wattage ratings from 72 to 1000 watts. The RSSC resistors are spot welded producing stronger mechanical and electrical connections for rugged applications.
Lead free vitreous enamel
Very large models (700 watts and up) are supplied in Silicone Ceramic
Tubular ceramic
Very large models (700 watts and up) are supplied in Silicone Ceramic
Tubular ceramic
