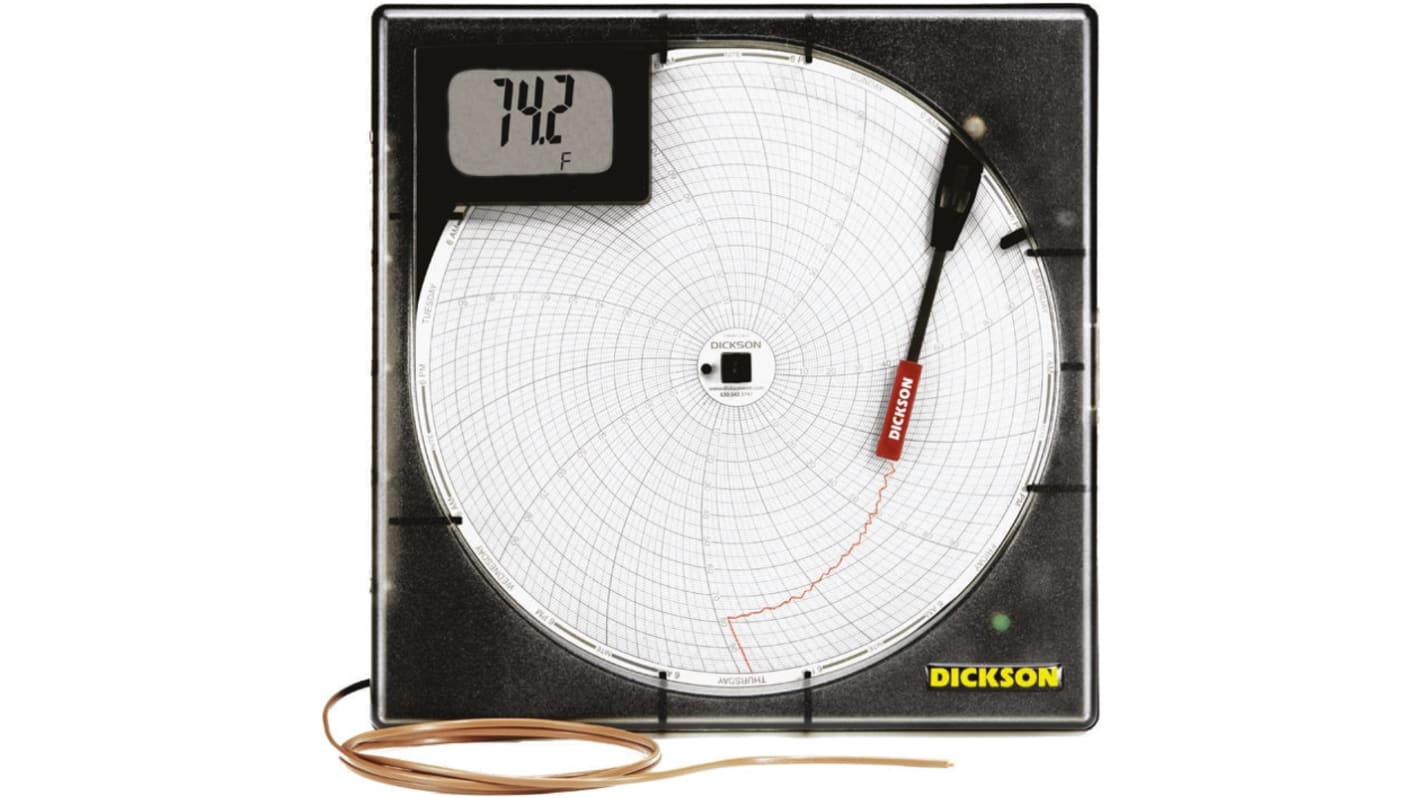

Dickson KT803, 1 Input Channels, 8 Inch Rotary Chart Recorder Measures Temperature
- RS Stock No.:
- 619-3192
- Mfr. Part No.:
- KT803
- Brand:
- Dickson
Stock information currently inaccessible
- RS Stock No.:
- 619-3192
- Mfr. Part No.:
- KT803
- Brand:
- Dickson
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Dickson | |
| Chart Type | 8 Inch Rotary | |
| Number of Inputs | 1 | |
| Parameter Measured | Temperature | |
| Maximum Temperature Measurement | +100 °F, +100 °C, +150 °F, +150 °C, +250 °C, +250 °F, +50 °C, +50 °F, +500 °C, +500 °F | |
| Maximum Operating Voltage | 120V ac | |
| Recorder Input Type | Thermocouple | |
| Model Number p | KT803 | |
| IP Rating | IP20 | |
| Best Temperature Measurement Accuracy | ±1 °C | |
| Temperature Measurement Resolution | 0.1 °C, 0.1 °F, 1 °C, 1 °F | |
| Weight | 1.8kg | |
| Battery Life | 1 wk | |
| Height | 79mm | |
| Power Source | Battery, Mains | |
| Length | 234mm | |
| Dimensions | 234 x 234 x 79mm | |
| Width | 234mm | |
| Select all | ||
|---|---|---|
Brand Dickson | ||
Chart Type 8 Inch Rotary | ||
Number of Inputs 1 | ||
Parameter Measured Temperature | ||
Maximum Temperature Measurement +100 °F, +100 °C, +150 °F, +150 °C, +250 °C, +250 °F, +50 °C, +50 °F, +500 °C, +500 °F | ||
Maximum Operating Voltage 120V ac | ||
Recorder Input Type Thermocouple | ||
Model Number p KT803 | ||
IP Rating IP20 | ||
Best Temperature Measurement Accuracy ±1 °C | ||
Temperature Measurement Resolution 0.1 °C, 0.1 °F, 1 °C, 1 °F | ||
Weight 1.8kg | ||
Battery Life 1 wk | ||
Height 79mm | ||
Power Source Battery, Mains | ||
Length 234mm | ||
Dimensions 234 x 234 x 79mm | ||
Width 234mm | ||
- COO (Country of Origin):
- US
