Jumo 70/00470073, 6 Input Channels, Graphical Paperless Chart Recorder Measures Current, Millivolt, Resistance,

View all Chart Recorders
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
612-9270
Mfr. Part No.:
706510/25-23/020,260,261
Brand:
Jumo
Find similar products by selecting one or more attributes.
Select all

Brand

Jumo

Chart Type

Graphical

Number of Inputs

6

Parameter Measured

Current, Millivolt, Resistance, Temperature, Voltage

Model Number p

70/00470073

IP Rating

IP20, IP54

COO (Country of Origin):
DE

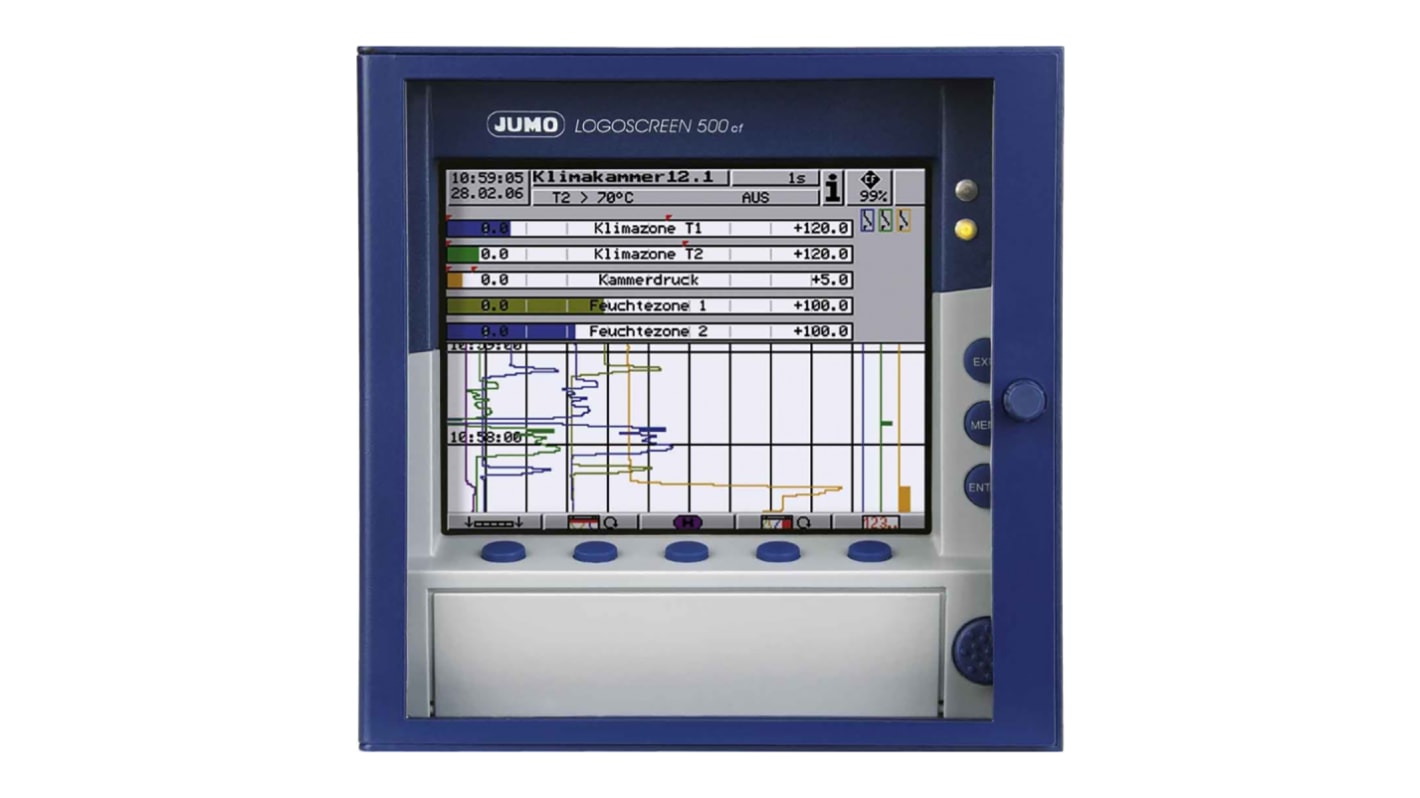

LOGOSCREEN 500 cf Advanced - paperless recorder


For recording, visualising, storing and analysing measured data
Integrated lifecycle data management
5" STN colour screen
6 galvanically separated, freely programmable measurement inputs for thermocouples, resistance thermometers, current, voltage
Minimum scanning rate 250 ms
Data storage on CF memory card
Device configuration via keyboard or PC setup software
Analysis program for displaying measurement data on PC
Data export to spreadsheet programs
Supplied complete with set-up and analysis software
Mathematical functions
4 binary inputs
3 relay outputs for alarm or switching operations
Interface for measurement data transfer
Auxiliary voltage for sensors
