Jumo Logoscreen 600, 3 (Analogue), 6 (Digital) Input Channels, 1 Output Channels, Videographic Chart Recorder Measures

View all Chart Recorders
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Jumo Logoscreen 601, 6 analog, 12 digital Input Channels, 2 analog Output Channels, Graphical Chart Recorder
RS Stock No.
225-8674

Each

£1,849.06

(exc. VAT)

£2,218.87

(inc. VAT)

RS Stock No.:
144-5939
Mfr. Part No.:
00647845
Brand:
Jumo
Find similar products by selecting one or more attributes.
Select all

Brand

Jumo

Chart Type

Videographic

Number of Inputs

3 (Analogue), 6 (Digital)

Parameter Measured

Current, Resistance, Temperature, Voltage

Maximum Humidity Measurement

≤85%RH

Maximum Temperature Measurement

+200 (Cu100) °C, +200 (Cu50) °C, +250 (Ni100) °C, +850 (PT 1000) °C, +850 (PT100) °C, +850 (PT50) °C

Number of Outputs

1

Maximum Current Measurement

20mA

Maximum Operating Voltage

240V ac

Maximum Resistance Measurement

0 ￫ 4000Ω

Maximum Voltage Measurement

1V

Recorder Input Type

Analogue, Digital

Model Number p

Logoscreen 600

IP Rating

IP20, IP20D, IP65

Best Temperature Measurement Accuracy

≤0.1 %

Minimum Operating Voltage

110V ac

Power Source

Battery, Mains

Battery Type

Lithium

Best Resistance Measurement Accuracy

≤0.1 %

Best Voltage Measurement Accuracy

≤0.1 %

Height

144mm

Width

119mm

Length

144mm

Weight

1.6kg

Best Current Measurement Accuracy

≤0.1 %

Battery Life

7 yr

COO (Country of Origin):
FR

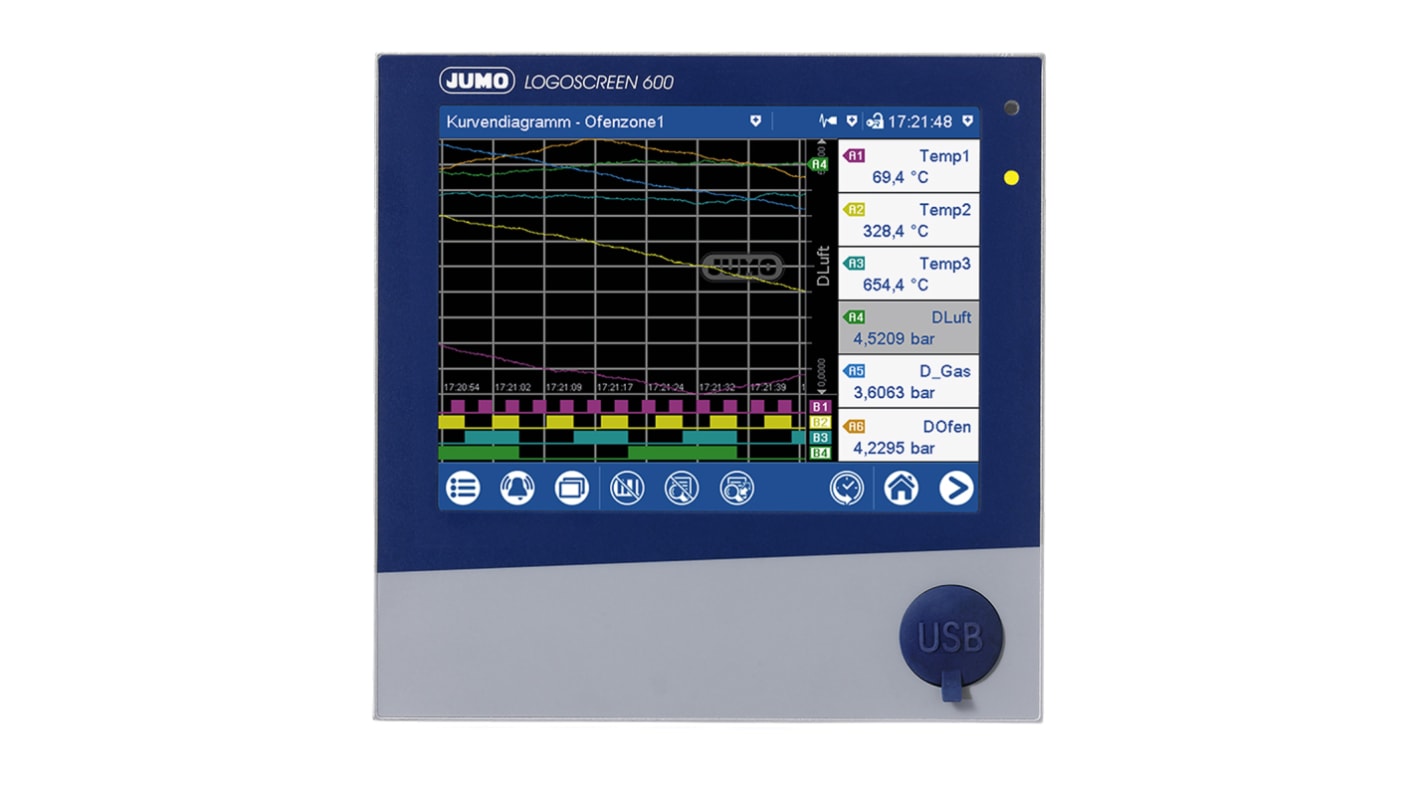

Logoscreen 600 Paperless Chart Recorder


Logoscreen 600 series paperless touchscreen chart recorder features an intuitive, icon-based operation and visualisation model that makes it easy to handle and use. Various versions are available for process data recording. The chart recorder displays data using the default visualisations, such as curve diagram, bar graph, text image or digital diagram. In addition, you can create up to six individual process screens with up to 100 objects per screen to fit any requirement.

Features and Benefits


Intuitive touchscreen operation
Excellent TFT screen (640 x 480)
1 GByte internal data memory
Up to 2 analogue outputs
24 External analogue and digital channels via all interfaces (Modbus master/slave)
Horizontal and vertical line graph
Up to 6 customer-specific process screens
Ethernet interface
Integrated web server for online visualisation
Bath report recording
Batch control (start, stop and texts) even via barcode scanner and interface
Modbus master function (even with Modbus/TCP)
Counters and integrators (6 channels)
Math and logic module (6 channels each) as extra code
Automatic data read-out via PCA communication software PCC
Data recording compliant with FDA 21 CFR Part 11 (extra code)
Manual detection by digital certificate (extra code)
