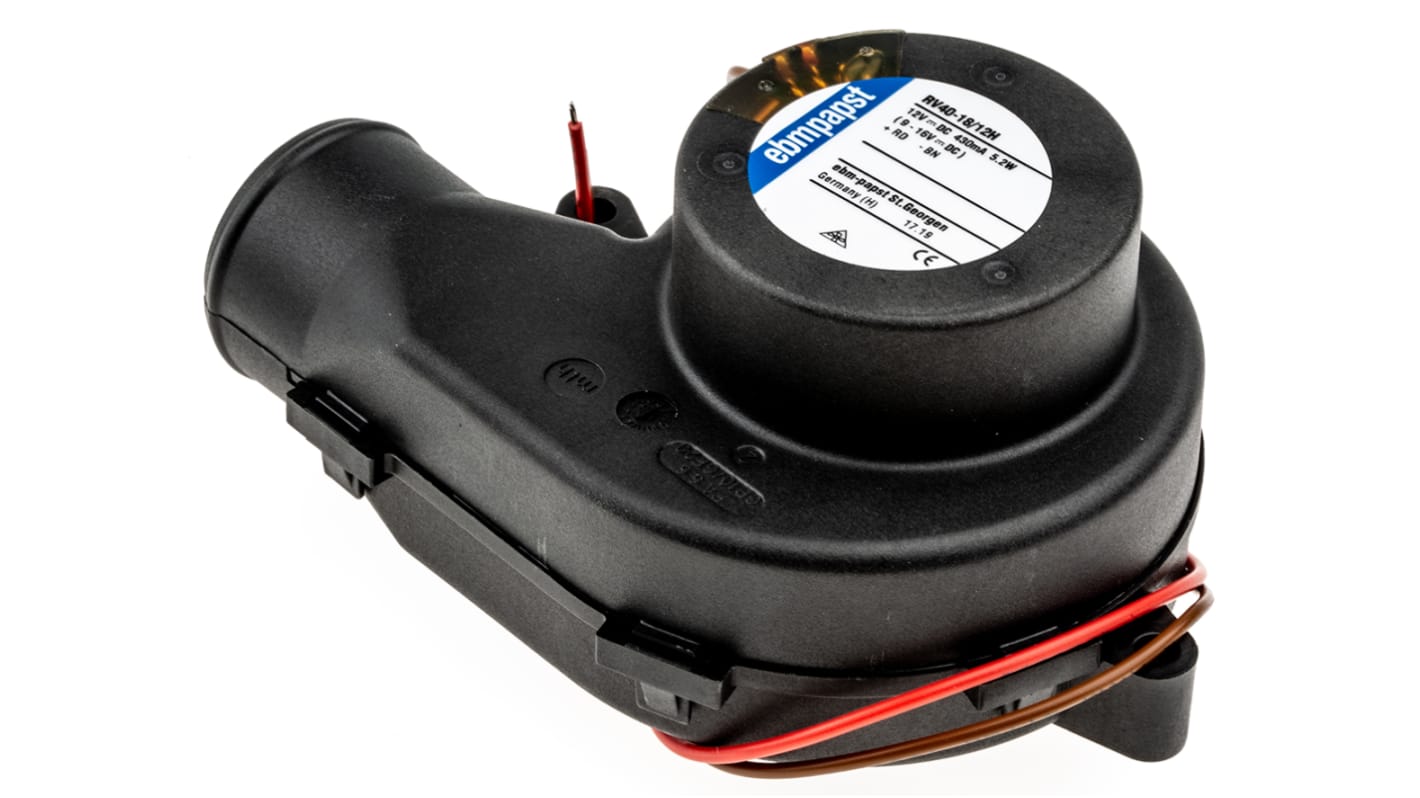

ebm-papst Centrifugal Fan 77.3 x 102.44 x 58.85mm, 24m³/h, 12 V dc DC (RV40 Series)

  • RS Stock No. 250-864
  • Mfr. Part No. RV40-18/12H
  • Brand ebm-papst
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

ebm-papst Centrifugal Fan

The ebm-papst centrifugal fan has an airflow of 24m³/h and a supply voltage rating of 12VDC. It has a scroll housing made of fibreglass-reinforced plastic and a fibreglass-reinforced plastic impeller. It is 77.3mm long, 102.44mm width and 58.8mm deep. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

Features and Benefits

Electronically commutated external rotor motor
Fully integrated commutation electronics
Electronic protection against reverse polarity
Ball bearing construction
Moisture protection
Direction of flow axial intake

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic Products
Medical Treatment
Household
Ventilation
Air Conditioning
Refrigeration System

Certifications

CE certified

Specifications
Attribute Value
Supply Voltage 12 V dc
Blower Type Centrifugal
AC or DC Operation DC
Air Flow 24m³/h
Series RV40
Height 77.3mm
Width 102.44mm
Depth 58.8mm
Dimensions 77.3 x 102.44 x 58.85mm
Fan Speed 4800rpm
Noise Level 50dB
Bearing Type Ball
Commutation Type Electronic
Termination Type Lead Wire
Sensor Output Type PWM
IP Rating IP20
Direction of Curve Forward
Vertical Hole Spacing 87.82mm
Mounting Hole Diameter 4.2mm
257 In stock - FREE next working day delivery available
Price Each
£ 36.33
(exc. VAT)
£ 43.60
(inc. VAT)
Units
Per unit
1 - 4
£36.33
5 - 9
£31.79
10 - 19
£29.06
20 +
£26.34
