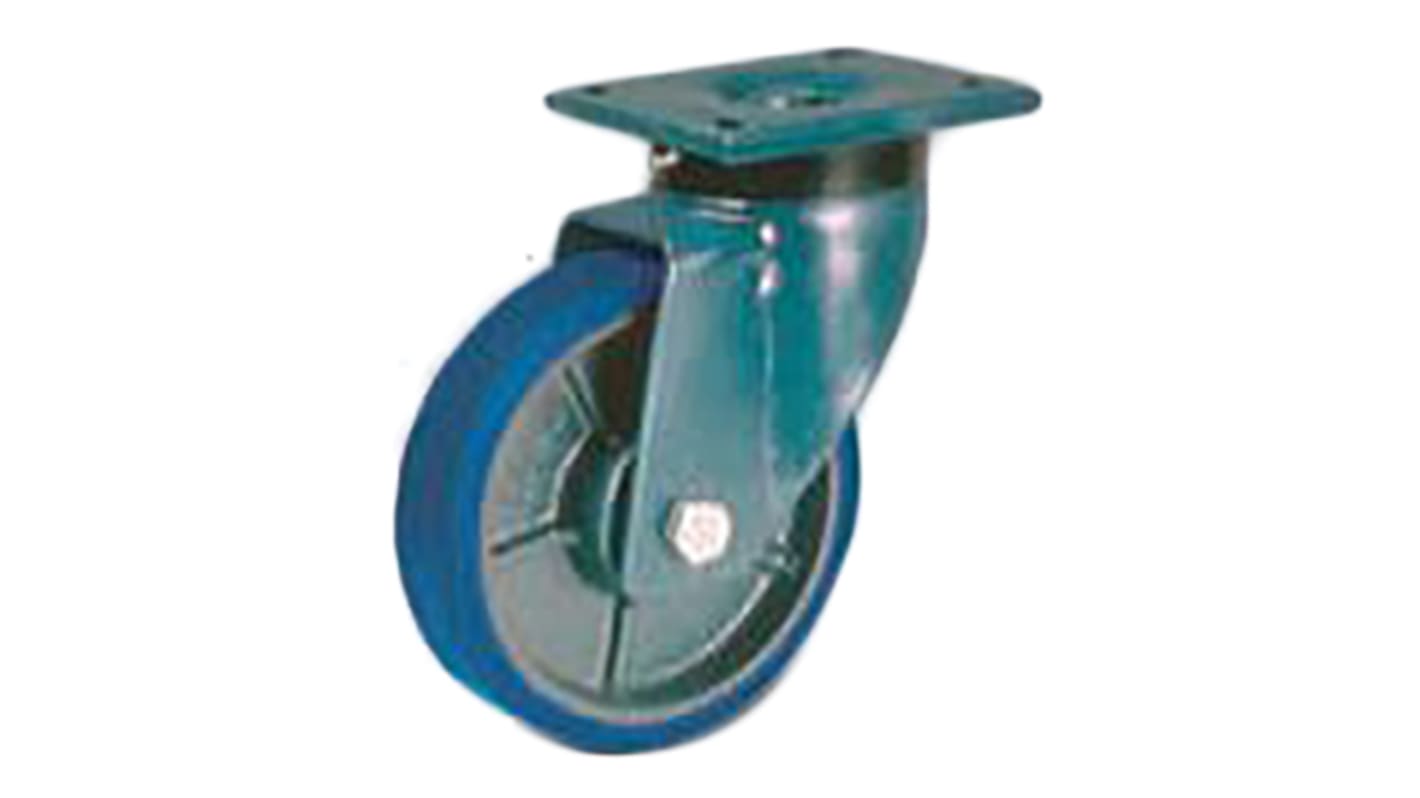

LAG Swivel Castor Wheel, 400kg Capacity, 125mm Wheel
- RS Stock No.:
- 837-1240
- Mfr. Part No.:
- 37509
- Brand:
- LAG
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 837-1240
- Mfr. Part No.:
- 37509
- Brand:
- LAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | LAG | |
Wheel Diameter | 125mm | |
Load Capacity | 400kg | |
Includes Brake | No | |
Overall Height | 172mm | |
Wheel Width | 40mm | |
Rotation | Swivel | |
Tyre Material | Polyurethane | |
Fixing Centres | 80 x 105mm | |
Fixing Plate Dimensions | 110 x 135mm | |
Number of Fixing Holes | 4 | |
Fixing Hole Size | 10mm | |
Weight Class | Heavy Duty | |
Hub Material | Cast Iron | |
Hub Bearing Type | Ball Bearing | |
Select all | ||
---|---|---|
Brand LAG | ||
Wheel Diameter 125mm | ||
Load Capacity 400kg | ||
Includes Brake No | ||
Overall Height 172mm | ||
Wheel Width 40mm | ||
Rotation Swivel | ||
Tyre Material Polyurethane | ||
Fixing Centres 80 x 105mm | ||
Fixing Plate Dimensions 110 x 135mm | ||
Number of Fixing Holes 4 | ||
Fixing Hole Size 10mm | ||
Weight Class Heavy Duty | ||
Hub Material Cast Iron | ||
Hub Bearing Type Ball Bearing | ||
- COO (Country of Origin):
- IT
Polyurethane Tyre, Cast Iron Hub, Extra Heavy Duty, E70 Series, ZS Series Wheel
The ZS series of heavy-duty wheels and castors by LAG are used to move heavy loads. Therefore, they have a much sturdier design and are under certain circumstances suitable for higher travelling speeds. These castors ensure safe and permanent mobility, for example, for storage and industrial trucks as well as for special assembly and transport systems.
Features and Benefits
• Cast soft polyurethane coating, hardness 87±3 Shore A
• Core in cast iron painted
• High load capacity, smooth and noiseless running; high resistance to abrasion, wear and tear, oils and greases; shock absorbing
• Temperature range: -30°C / +80°C (-22°F / +176°F)
• Hub with: shielded precision ball bearings
• Heavy gauge top plate
• Thermoplastic dust protection ring
• Swivel fork and dust cover in pressed steel sheet
• Tapered roller bearing
• Core in cast iron painted
• High load capacity, smooth and noiseless running; high resistance to abrasion, wear and tear, oils and greases; shock absorbing
• Temperature range: -30°C / +80°C (-22°F / +176°F)
• Hub with: shielded precision ball bearings
• Heavy gauge top plate
• Thermoplastic dust protection ring
• Swivel fork and dust cover in pressed steel sheet
• Tapered roller bearing
Polyurethane tyred wheels have high tear strength and abrasion resistance which gives them a life of up to 10 times that of rubber under similar operating conditions. Polyurethane is able to carry loads approaching that of cast iron. Polyurethane has a lower tractive resistance than rubber for the same load so is better for manual handling of very heavy loads. Polyurethane is not affected by greases and mineral oils.
