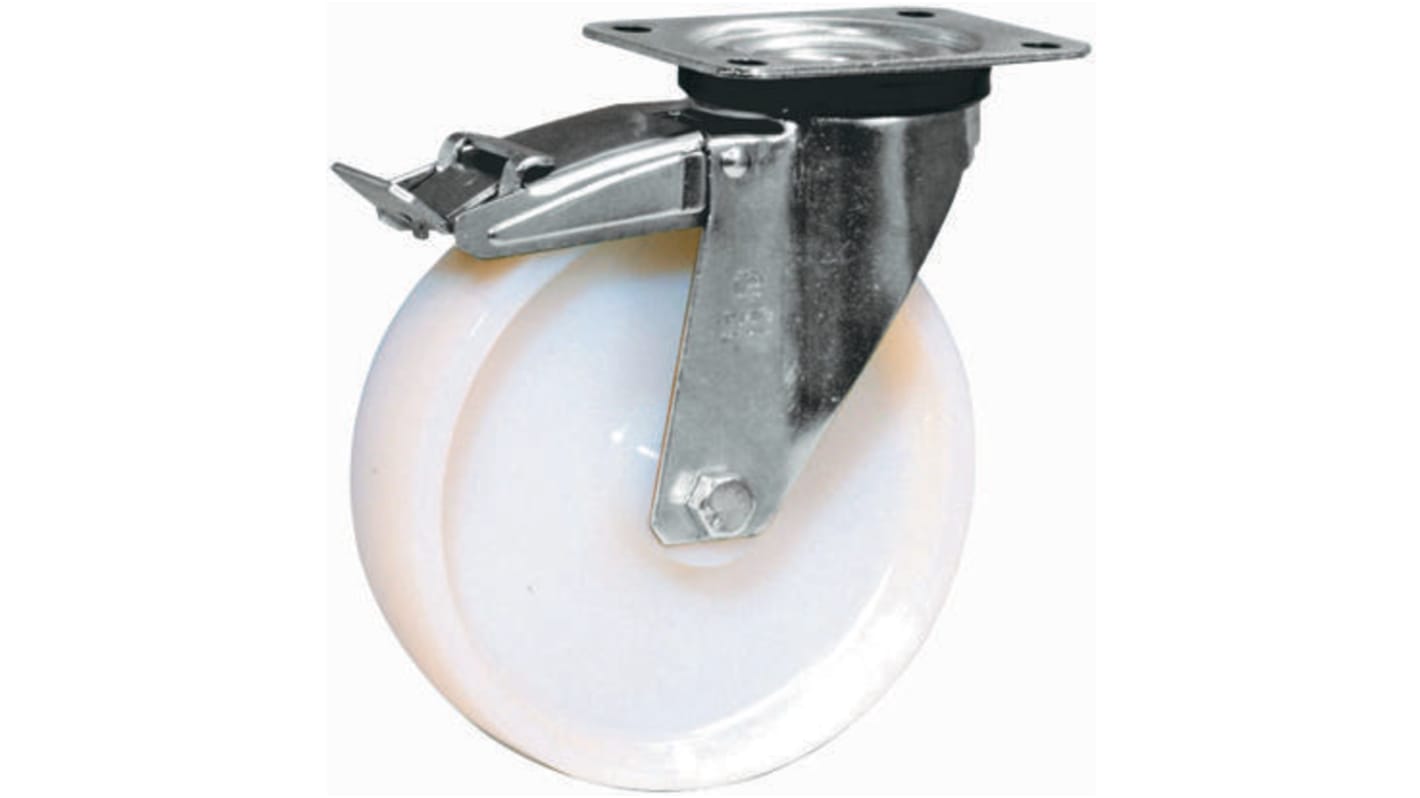

LAG Braked Swivel Castor Wheel, 200kg Capacity, 150mm Wheel
- RS Stock No.:
- 667-9624
- Mfr. Part No.:
- 18771 FR
- Brand:
- LAG
Image representative of range
Bulk discount available
Subtotal (1 unit)*
£30.03
(exc. VAT)
£36.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 43 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £30.03 |
5 - 9 | £28.83 |
10 + | £28.22 |
*price indicative
- RS Stock No.:
- 667-9624
- Mfr. Part No.:
- 18771 FR
- Brand:
- LAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | LAG | |
Wheel Diameter | 150mm | |
Load Capacity | 200kg | |
Mounting Type | Plate | |
Includes Brake | Yes | |
Overall Height | 181mm | |
Wheel Width | 40mm | |
Rotation | Braked Swivel | |
Tyre Material | Polyamide | |
Fixing Centres | 105 x 80mm | |
Housing Material | Zinc Plated Steel | |
Fixing Plate Dimensions | 135 x 110mm | |
Number of Fixing Holes | 4 | |
Fixing Hole Size | 10mm | |
Weight Class | Medium Duty | |
Hub Material | Polyamide | |
Hub Bearing Type | Plain Bore | |
Select all | ||
---|---|---|
Brand LAG | ||
Wheel Diameter 150mm | ||
Load Capacity 200kg | ||
Mounting Type Plate | ||
Includes Brake Yes | ||
Overall Height 181mm | ||
Wheel Width 40mm | ||
Rotation Braked Swivel | ||
Tyre Material Polyamide | ||
Fixing Centres 105 x 80mm | ||
Housing Material Zinc Plated Steel | ||
Fixing Plate Dimensions 135 x 110mm | ||
Number of Fixing Holes 4 | ||
Fixing Hole Size 10mm | ||
Weight Class Medium Duty | ||
Hub Material Polyamide | ||
Hub Bearing Type Plain Bore | ||
- COO (Country of Origin):
- IT
Nylon Polyamide Wheel, RoHS Steel Fork, Medium Duty, Series M22 - Plate Mounted
Swivel and fixed forks are electro-zinc plated, white RoHS compliant, top plate mounting
Low rolling resistance, excellent resistance to shock, abrasion and corrosion
Easy to clean
Double ball race swivel head castor
Temperature range -30°C to +80°C
Wheels with plain bearings
Wheel series P
Low rolling resistance, excellent resistance to shock, abrasion and corrosion
Easy to clean
Double ball race swivel head castor
Temperature range -30°C to +80°C
Wheels with plain bearings
Wheel series P
Hard Tread - Polyamide / Nylon Wheel
Hard tread wheels are the easiest to push and offer the easiest movement and mobility. Solid Nylon is a floor-friendly alternative to cast iron, which is unaffected by water and has a load capacity approaching that of cast iron. Solid Nylon wheels are the most popular choice as they will not damage solid compacted floors such as cement or tile etc and have good load carrying capacity. Nylon wheels are used widely in food processing areas.
