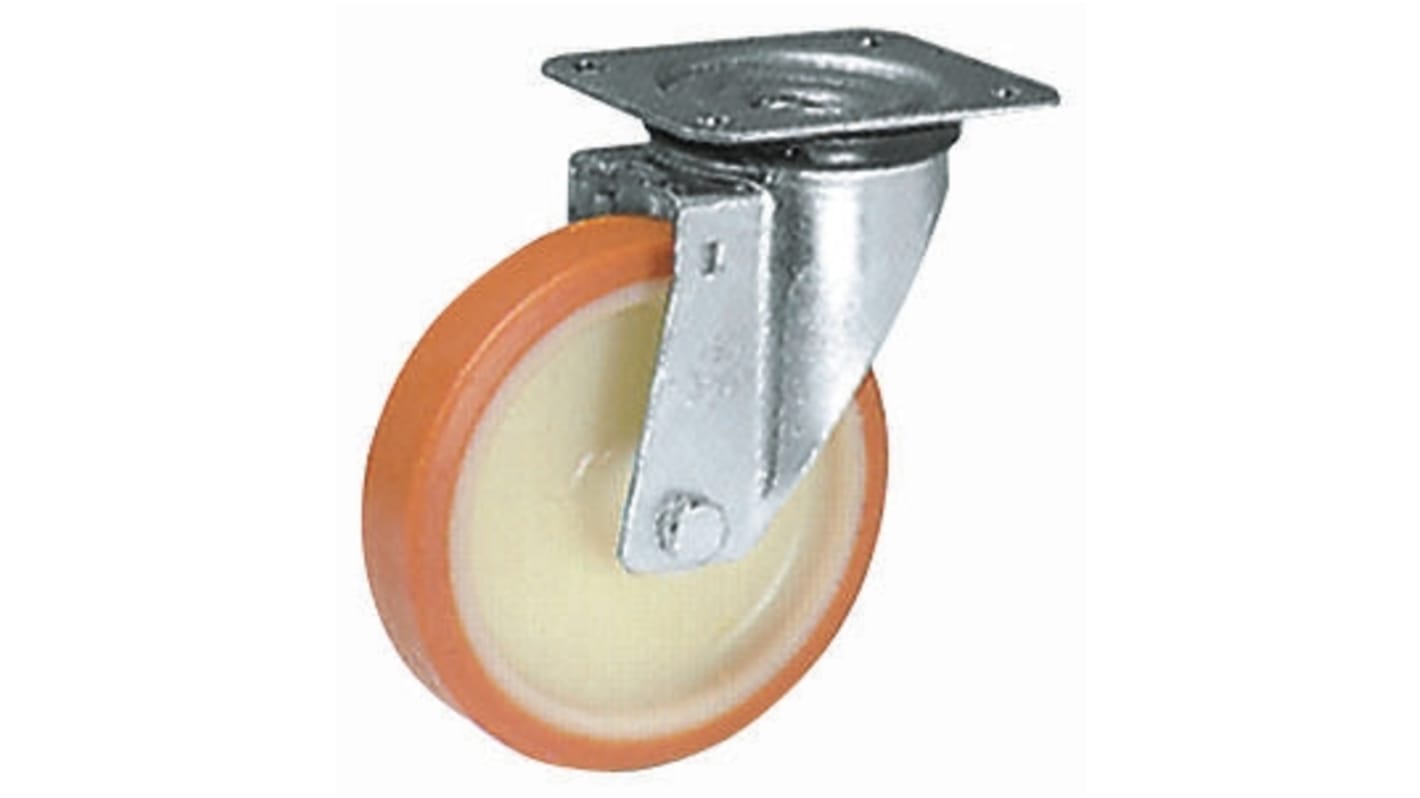

LAG Swivel Castor Wheel, 200kg Capacity, 100mm Wheel
- RS Stock No.:
- 667-9551
- Mfr. Part No.:
- 313555
- Brand:
- LAG
Bulk discount available
Subtotal (1 unit)*
£22.76
(exc. VAT)
£27.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 16 unit(s) shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £22.76 |
5 - 9 | £21.83 |
10 + | £21.39 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£30.22
(exc. VAT)
£36.26
(inc. VAT)
- RS Stock No.:
- 667-9551
- Mfr. Part No.:
- 313555
- Brand:
- LAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | LAG | |
Wheel Diameter | 100mm | |
Load Capacity | 200kg | |
Mounting Type | Plate | |
Includes Brake | No | |
Overall Height | 129mm | |
Wheel Width | 30mm | |
Rotation | Swivel | |
Tyre Material | Polyurethane | |
Fixing Centres | 80 x 60mm | |
Housing Material | Zinc Plated Steel | |
Fixing Plate Dimensions | 102 x 83mm | |
Number of Fixing Holes | 4 | |
Fixing Hole Size | 8mm | |
Weight Class | Medium Duty | |
Hub Bearing Type | Roller Bearing | |
Hub Material | Polyamide | |
Select all | ||
---|---|---|
Brand LAG | ||
Wheel Diameter 100mm | ||
Load Capacity 200kg | ||
Mounting Type Plate | ||
Includes Brake No | ||
Overall Height 129mm | ||
Wheel Width 30mm | ||
Rotation Swivel | ||
Tyre Material Polyurethane | ||
Fixing Centres 80 x 60mm | ||
Housing Material Zinc Plated Steel | ||
Fixing Plate Dimensions 102 x 83mm | ||
Number of Fixing Holes 4 | ||
Fixing Hole Size 8mm | ||
Weight Class Medium Duty | ||
Hub Bearing Type Roller Bearing | ||
Hub Material Polyamide | ||
- COO (Country of Origin):
- IT
Polyurethane Tyre, RoHS, Nylon Hub, Medium Duty, Series M22 - Plate Mounted
Swivel and fixed forks are electro-zinc plated, white RoHS compliant, top plate mounting
Quiet and smooth running
PA6 hub with cast poly tyre and roller bearing
Corrosion, abrasion and shock resistant
Double ball race swivel head castor
Temperature range -30°C to +80°C
Hardness 95+/-3 Shore A
Wheel series A
Quiet and smooth running
PA6 hub with cast poly tyre and roller bearing
Corrosion, abrasion and shock resistant
Double ball race swivel head castor
Temperature range -30°C to +80°C
Hardness 95+/-3 Shore A
Wheel series A
Polyurethane tyred wheels have high tear strength and abrasion resistance which gives them a life of up to 10 times that of rubber under similar operating conditions. Polyurethane is able to carry loads approaching that of cast iron. Polyurethane has a lower tractive resistance than rubber for the same load so is better for manual handling of very heavy loads. Polyurethane is not affected by greases and mineral oils.
