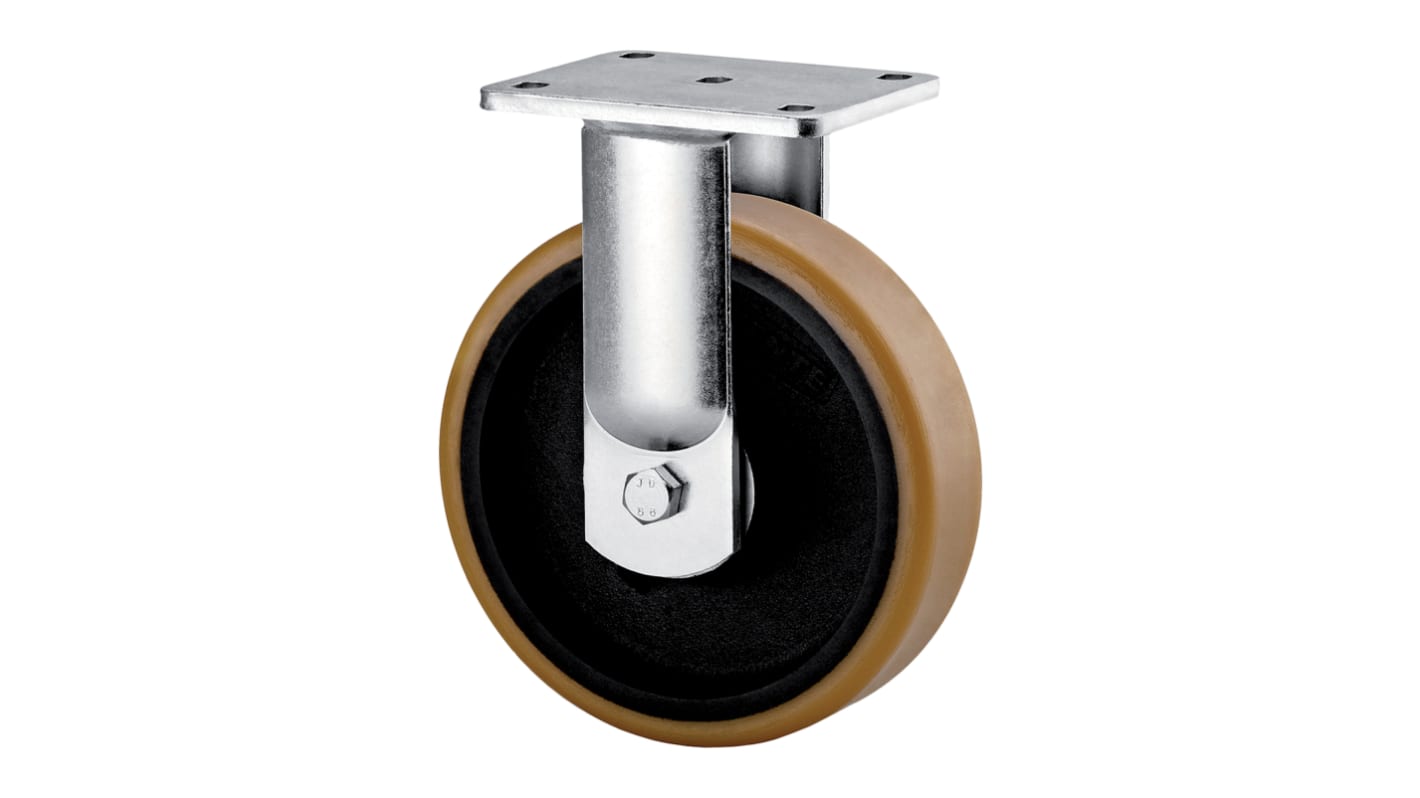

Tente Fixed Castor Wheel, 750kg Capacity, 160mm Wheel
- RS Stock No.:
- 454-1577
- Mfr. Part No.:
- 9682FTP160P63
- Brand:
- Tente
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£69.68
(exc. VAT)
£83.62
(inc. VAT)
- RS Stock No.:
- 454-1577
- Mfr. Part No.:
- 9682FTP160P63
- Brand:
- Tente
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tente | |
| Wheel Diameter | 160mm | |
| Load Capacity | 750kg | |
| Overall Height | 205mm | |
| Rotation | Fixed | |
| Wheel Width | 50mm | |
| Fixing Plate Dimensions | 135 x 110mm | |
| Tyre Material | PUR | |
| Fixing Centres | 105 x 80mm | |
| Weight Class | Heavy Duty | |
| Number of Fixing Holes | 4 | |
| Hub Bearing Type | Ball Bearing | |
| Hub Material | Cast Iron | |
| Fixing Hole Size | 11mm | |
Select all | ||
|---|---|---|
Brand Tente | ||
Wheel Diameter 160mm | ||
Load Capacity 750kg | ||
Overall Height 205mm | ||
Rotation Fixed | ||
Wheel Width 50mm | ||
Fixing Plate Dimensions 135 x 110mm | ||
Tyre Material PUR | ||
Fixing Centres 105 x 80mm | ||
Weight Class Heavy Duty | ||
Number of Fixing Holes 4 | ||
Hub Bearing Type Ball Bearing | ||
Hub Material Cast Iron | ||
Fixing Hole Size 11mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Industrial Heavy Duty Castor Series 9650
Cast Iron wheel with forged steel bracket, zinc chromated
High abrasion resistance
Ideally suited to moving heavy loads
High abrasion resistance
Ideally suited to moving heavy loads
Polyurethane tyred wheels have high tear strength and abrasion resistance which gives them a life of up to 10 times that of rubber under similar operating conditions. Polyurethane is able to carry loads approaching that of cast iron. Polyurethane has a lower tractive resistance than rubber for the same load so is better for manual handling of very heavy loads. Polyurethane is not affected by greases and mineral oils.
