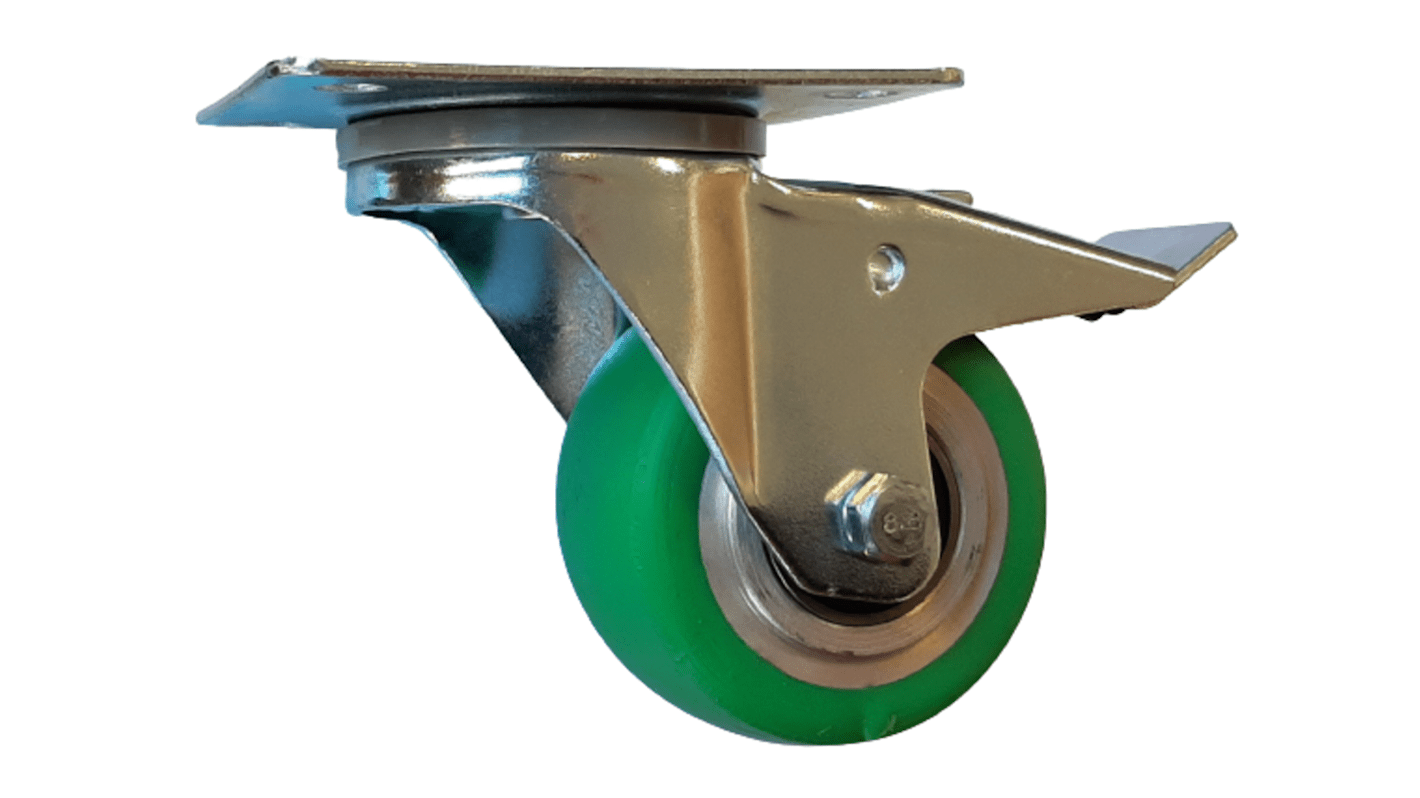

Guitel Hervieu Braked Swivel Castor Wheel, 180kg Capacity, 80mm Wheel
- RS Stock No.:
- 243-0385
- Mfr. Part No.:
- EP4BD080-215B
- Brand:
- Guitel Hervieu
Subtotal (1 unit)*
£66.86
(exc. VAT)
£80.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £66.86 |
*price indicative
- RS Stock No.:
- 243-0385
- Mfr. Part No.:
- EP4BD080-215B
- Brand:
- Guitel Hervieu
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Guitel Hervieu | |
Wheel Diameter | 80mm | |
Load Capacity | 180kg | |
Mounting Type | Plate | |
Includes Brake | Yes | |
Overall Height | 108mm | |
Wheel Width | 40mm | |
Rotation | Braked Swivel | |
Tyre Material | Polyurethane | |
Housing Material | Zinc Plated Steel | |
Fixing Centres | 80 x 60mm | |
Fixing Plate Dimensions | 105 x 85mm | |
Number of Fixing Holes | 4 | |
Fixing Hole Size | 9mm | |
Weight Class | Heavy Duty | |
Hub Material | Aluminium | |
Hub Bearing Type | Ball Bearing | |
Select all | ||
---|---|---|
Brand Guitel Hervieu | ||
Wheel Diameter 80mm | ||
Load Capacity 180kg | ||
Mounting Type Plate | ||
Includes Brake Yes | ||
Overall Height 108mm | ||
Wheel Width 40mm | ||
Rotation Braked Swivel | ||
Tyre Material Polyurethane | ||
Housing Material Zinc Plated Steel | ||
Fixing Centres 80 x 60mm | ||
Fixing Plate Dimensions 105 x 85mm | ||
Number of Fixing Holes 4 | ||
Fixing Hole Size 9mm | ||
Weight Class Heavy Duty | ||
Hub Material Aluminium | ||
Hub Bearing Type Ball Bearing | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Guitel Point M is a zinc plated-pressed sheet steel caster with swivel plate mount. This castor have wide tread, good abrasion resistant and smooth and quiet working. The domed profile makes it easy to push and change direction. This castor is used in
180 Kg load capacity
80 mm wheel diameter
Exceptional resistance
Reduced tractive effort, even under heavy load
Smooth and quiet ride
Long term service
Easy handling: the convex profile of the tire allows very little effort when moving manually and reduce
80 mm wheel diameter
Exceptional resistance
Reduced tractive effort, even under heavy load
Smooth and quiet ride
Long term service
Easy handling: the convex profile of the tire allows very little effort when moving manually and reduce
