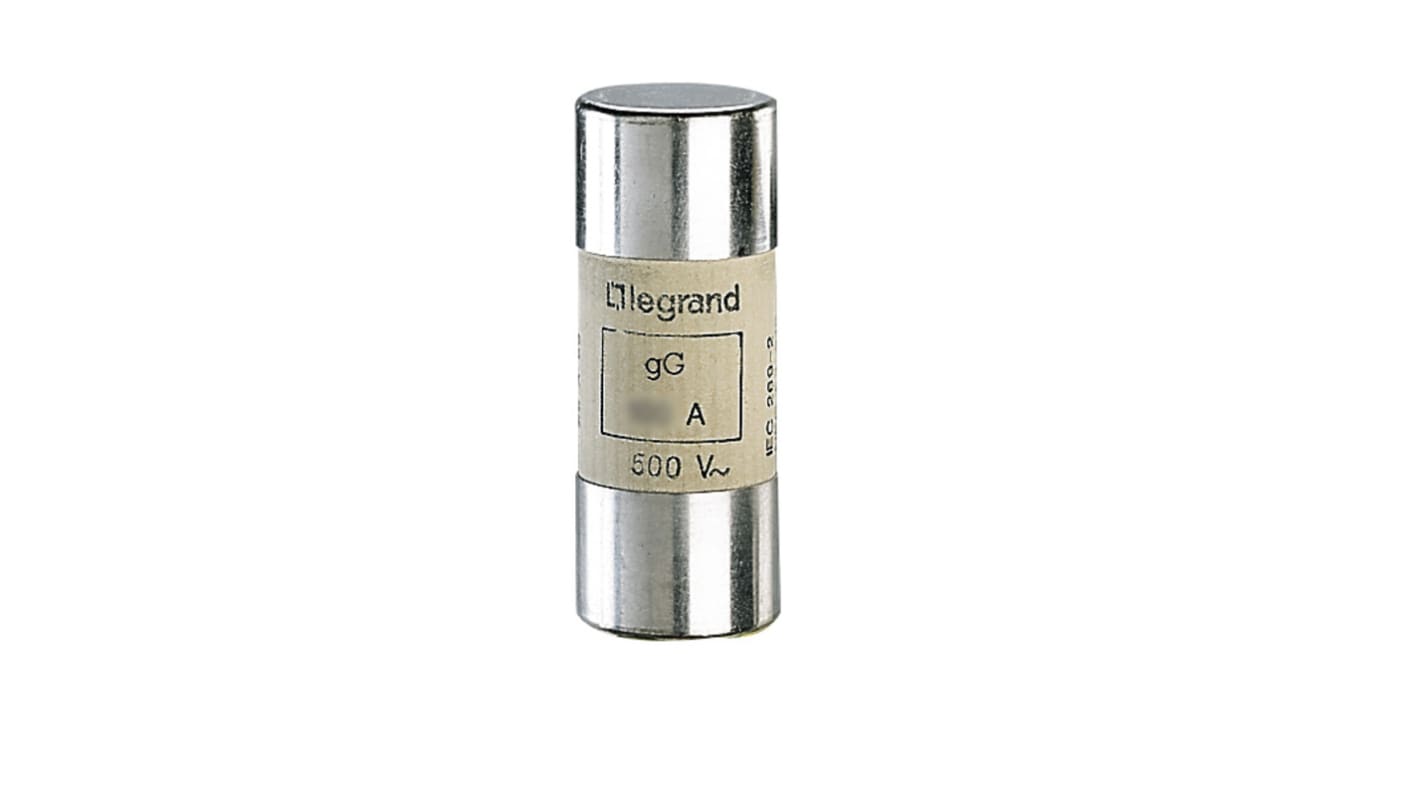

Legrand 125A Ceramic Cartridge Fuse, 22 x 58 mm

Name: Legrand 125A Ceramic Cartridge Fuse, 22 x 58 mm
Brand: Legrand
SKU: 266-3175
Price: 81.53 GBP
Availability: InStock

Subtotal (1 box of 10 units)*

£67.94

(exc. VAT)

£81.53

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Box(es)	Per Box	Per unit*
1 +	£67.94	£6.794

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Legrand
	Current Rating	125A
	Product Type	Cartridge Fuse
	Fuse Size	22 x 58 mm
	Voltage	400V
	Overall Length	58mm
	Body Material	Ceramic
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	40°C
	Diameter	22mm
	Standards/Approvals	EN 60269-1, IEC 60269-1 and 2

	Select all
	Brand Legrand
	Current Rating 125A
	Product Type Cartridge Fuse
	Fuse Size 22 x 58 mm
	Voltage 400V
	Overall Length 58mm
	Body Material Ceramic
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 40°C
	Diameter 22mm
	Standards/Approvals EN 60269-1, IEC 60269-1 and 2

RoHS Status: Exempt

The Legrand cylindrical industrial cartridge is cartridge for protection of electrical circuit conductors in the event of overload or short circuit.

Ceramic fuse

120 kA breaking power
