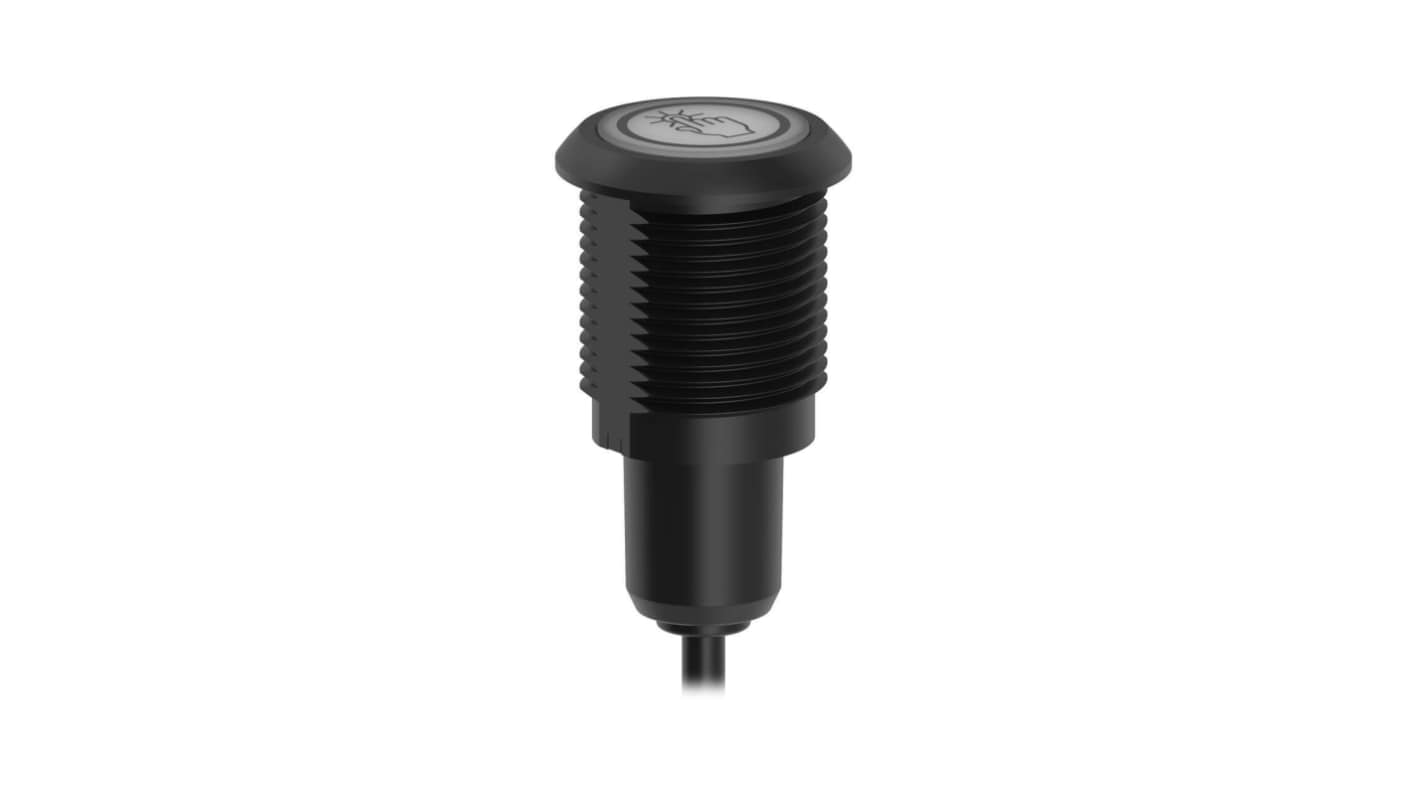

Banner Capacitive switch NO Momentary Illuminated, RGB, NPN/PNP, IP66, IP67, IP69K Polycarbonate
- RS Stock No.:
- 294-105
- Mfr. Part No.:
- S22AMTSGRY3
- Brand:
- Banner
Subtotal (1 unit)*
£82.86
(exc. VAT)
£99.43
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £82.86 |
*price indicative
- RS Stock No.:
- 294-105
- Mfr. Part No.:
- S22AMTSGRY3
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Switch Operation | NO | |
| Product Type | Capacitive switch | |
| Switch Type | Capacitive | |
| Switch Function | Momentary | |
| LED Colour | RGB | |
| Housing Material | Polycarbonate, Polyester | |
| Illuminated | Yes | |
| Maximum Input Voltage | 30V | |
| Output Type | NPN/PNP | |
| Housing Colour | Black | |
| Minimum Input Voltage | 10V | |
| IP Rating | IP66, IP67, IP69K | |
| Series | S22 Pro | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 50°C | |
| Contact Material | Polycarbonate | |
| Width | 27.3 mm | |
| Standards/Approvals | IEC 60068-2-6, IEC 60068-2-27, IEC IP67, IP69K per DIN 40050-9, IEC IP66 | |
| Depth | 27.3mm | |
| Height | 47.8mm | |
| Current Rating | 80 mA | |
| Select all | ||
|---|---|---|
Brand Banner | ||
Switch Operation NO | ||
Product Type Capacitive switch | ||
Switch Type Capacitive | ||
Switch Function Momentary | ||
LED Colour RGB | ||
Housing Material Polycarbonate, Polyester | ||
Illuminated Yes | ||
Maximum Input Voltage 30V | ||
Output Type NPN/PNP | ||
Housing Colour Black | ||
Minimum Input Voltage 10V | ||
IP Rating IP66, IP67, IP69K | ||
Series S22 Pro | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 50°C | ||
Contact Material Polycarbonate | ||
Width 27.3 mm | ||
Standards/Approvals IEC 60068-2-6, IEC 60068-2-27, IEC IP67, IP69K per DIN 40050-9, IEC IP66 | ||
Depth 27.3mm | ||
Height 47.8mm | ||
Current Rating 80 mA | ||
- COO (Country of Origin):
- MX
The Banner S22 Pro Touch Button is a rugged, cost effective, and easy to install multicolor indicator with a touch button design, ideal for industrial applications. It is programmable using Banner Pro Editor software and the Pro Converter Cable, ensuring flexibility for various settings and configurations across all S22 Pro models. The button offers excellent resistance to false triggering caused by water spray, detergents, oils, and other foreign materials, ensuring reliable performance in challenging environments. With a waterproof IP69K-rated construction per DIN 40050-9, it is well suited for washdown environments.
Up to 7 independent colors in one unit
22 mm threaded polycarbonate base
Can be actuated with bare hands or gloves
10 V DC to 30 V DC operation
Terminal connection models available for panel wiring applications
Bimodal inputs and outputs depending on source wiring
