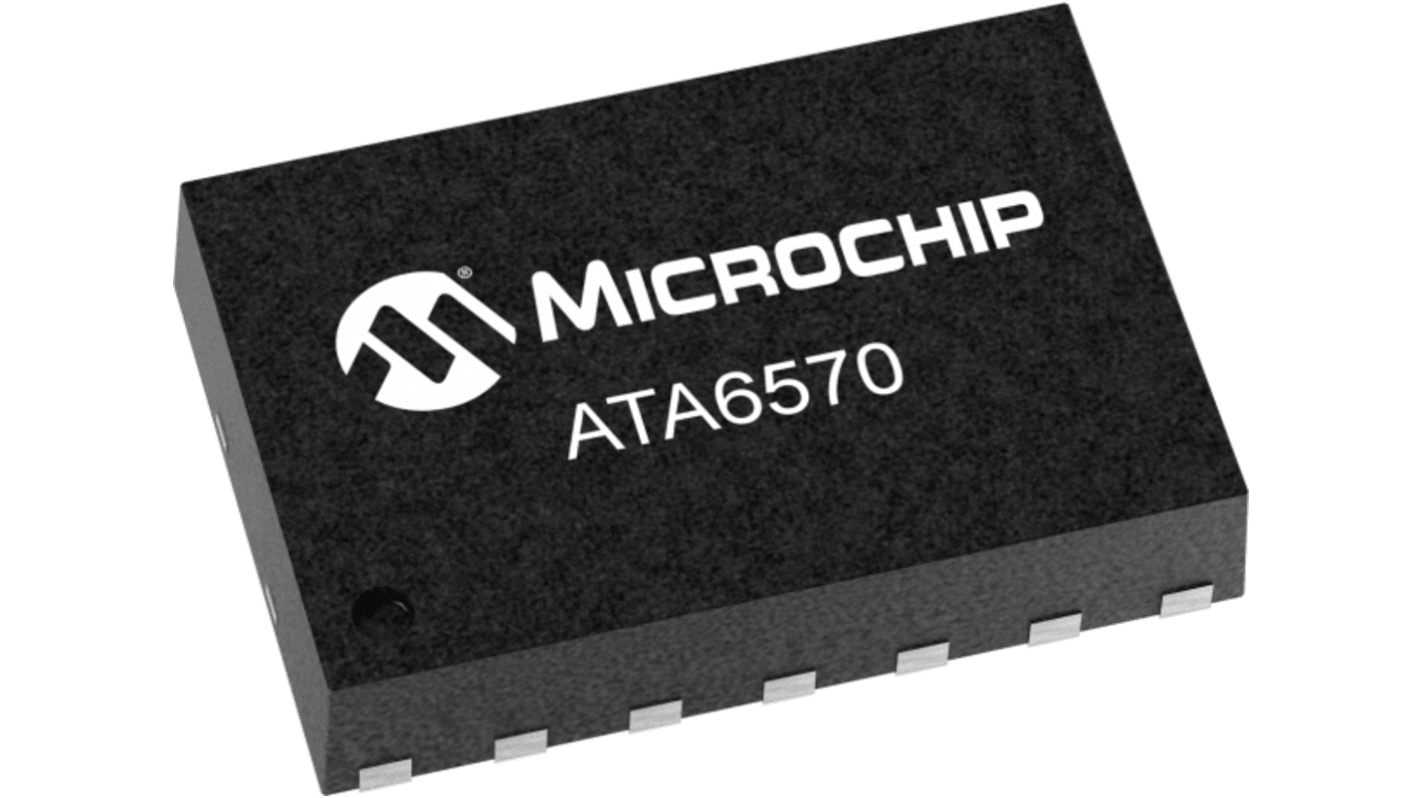

Microchip ATA6570-GCQW1, CAN Controller 5Mbps CAN, 14-Pin SOIC
- RS Stock No.:
- 631-536
- Mfr. Part No.:
- ATA6570-GCQW1
- Brand:
- Microchip
Subtotal (1 reel of 6000 units)*
£3,870.00
(exc. VAT)
£4,644.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
6000 + | £0.645 | £3,870.00 |
*price indicative
- RS Stock No.:
- 631-536
- Mfr. Part No.:
- ATA6570-GCQW1
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Maximum Data Rate | 5Mbps | |
Number of Transceivers | 1 | |
IC Type | Transceiver IC | |
Standard Supported | CAN | |
Power Down Mode | Yes | |
Maximum Supply Current | 50 mA | |
Package Type | SOIC | |
Pin Count | 14 | |
Select all | ||
---|---|---|
Brand Microchip | ||
Maximum Data Rate 5Mbps | ||
Number of Transceivers 1 | ||
IC Type Transceiver IC | ||
Standard Supported CAN | ||
Power Down Mode Yes | ||
Maximum Supply Current 50 mA | ||
Package Type SOIC | ||
Pin Count 14 | ||
The Microchip CAN Partial Networking (PN) transceiver that interfaces a Controller Area Network (CAN) protocol controller and the physical two wire CAN bus. It is designed for high speed CAN applications in the automotive environment. It provides local and enhanced remote wake-up capabilities. The Microchip ATA6570 has a very low power consumption in Standby and Sleep Mode.
Local wake up via pin WAKE
Remote wake up pattern according to ISO 11898 5
Wake up source recognition
3.3V to 5V microcontrollers can be interfaced directly via the VIO pin
Battery supply and CAN bus pins protected against transients according to ISO7637
High Electro Static Discharge (ESD) Handling Capability on the Bus Pins
Bus pins short circuit protected to GND and VCC
Remote wake up pattern according to ISO 11898 5
Wake up source recognition
3.3V to 5V microcontrollers can be interfaced directly via the VIO pin
Battery supply and CAN bus pins protected against transients according to ISO7637
High Electro Static Discharge (ESD) Handling Capability on the Bus Pins
Bus pins short circuit protected to GND and VCC
