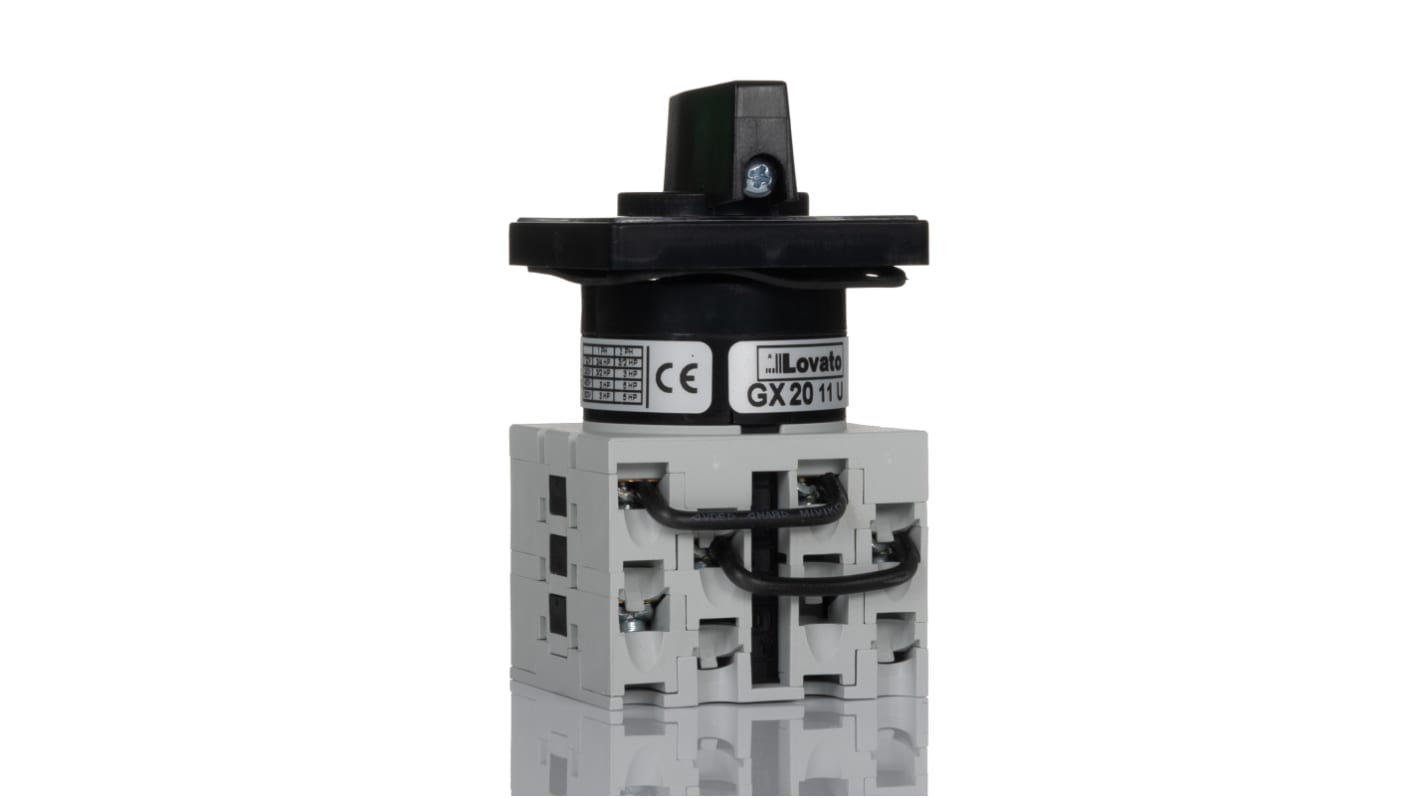

Lovato, 3PDT 3 Position 60° Motor Reversing Cam Switch, 20A, Knob Actuator
- RS Stock No.:
- 840-5624
- Mfr. Part No.:
- GX2011U
- Brand:
- Lovato
Bulk discount available
Subtotal (1 unit)*
£36.26
(exc. VAT)
£43.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 30 unit(s) shipping from 15 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £36.26 |
| 5 - 9 | £35.14 |
| 10 + | £33.66 |
*price indicative
- RS Stock No.:
- 840-5624
- Mfr. Part No.:
- GX2011U
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Pole and Throw Configuration | 3PDT | |
| Cam Switch Type | Motor Reversing Cam Switch | |
| Normal State Configuration | 3CO | |
| Electrical Phase | 1, 3 | |
| Maximum Current | 20A | |
| Number of Positions | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 60° | |
| Length | 48mm | |
| Width | 48mm | |
| Depth | 87.5mm | |
| Actuator Type | Knob | |
| Mounting Type | Front | |
| Dimensions | 48 x 48 x 87.5mm | |
Select all | ||
|---|---|---|
Brand Lovato | ||
Pole and Throw Configuration 3PDT | ||
Cam Switch Type Motor Reversing Cam Switch | ||
Normal State Configuration 3CO | ||
Electrical Phase 1, 3 | ||
Maximum Current 20A | ||
Number of Positions 3 | ||
Terminal Type Screw | ||
Angle of Throw 60° | ||
Length 48mm | ||
Width 48mm | ||
Depth 87.5mm | ||
Actuator Type Knob | ||
Mounting Type Front | ||
Dimensions 48 x 48 x 87.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Lovato Cam Switch, Motor Reversing, 3CO - GX2011U
This cam switch from Lovato is a versatile solution for various applications in automation, electronics, and electrical industries. With its motor reversing capability and 3PDT configuration, the cam switch offers reliable performance and precise control. The screw terminal design ensures easy installation and maintenance, making it ideal for both single phase and three phase applications.
Features & Benefits
• Knob actuator for easy manual operation
• 20A maximum current capacity for robust performance
• 3CO configuration for flexible switching options
• Compact dimensions of 48 x 48 x 87.5 mm for easy integration
• Screw terminal type for quick and secure connections
• 20A maximum current capacity for robust performance
• 3CO configuration for flexible switching options
• Compact dimensions of 48 x 48 x 87.5 mm for easy integration
• Screw terminal type for quick and secure connections
Applications
• Used for motor control in industrial machinery
• Ideal for reversing direction in conveyor systems
• Suitable for switching between star and delta configurations in electrical panels
• Perfect for applications requiring precise control over multiple positions
• Ideal for reversing direction in conveyor systems
• Suitable for switching between star and delta configurations in electrical panels
• Perfect for applications requiring precise control over multiple positions
Can it handle high electrical loads?
Yes, the cam switch is rated for a maximum current of 20A, making it suitable for various industrial applications.
Will it work with both single phase and three phase systems?
Yes, the cam switch supports both single phase and three phase configurations, offering versatility in different setups.
Is it easy to install?
The screw terminal design of the cam switch ensures a simple and secure installation process, saving time and effort for users.
