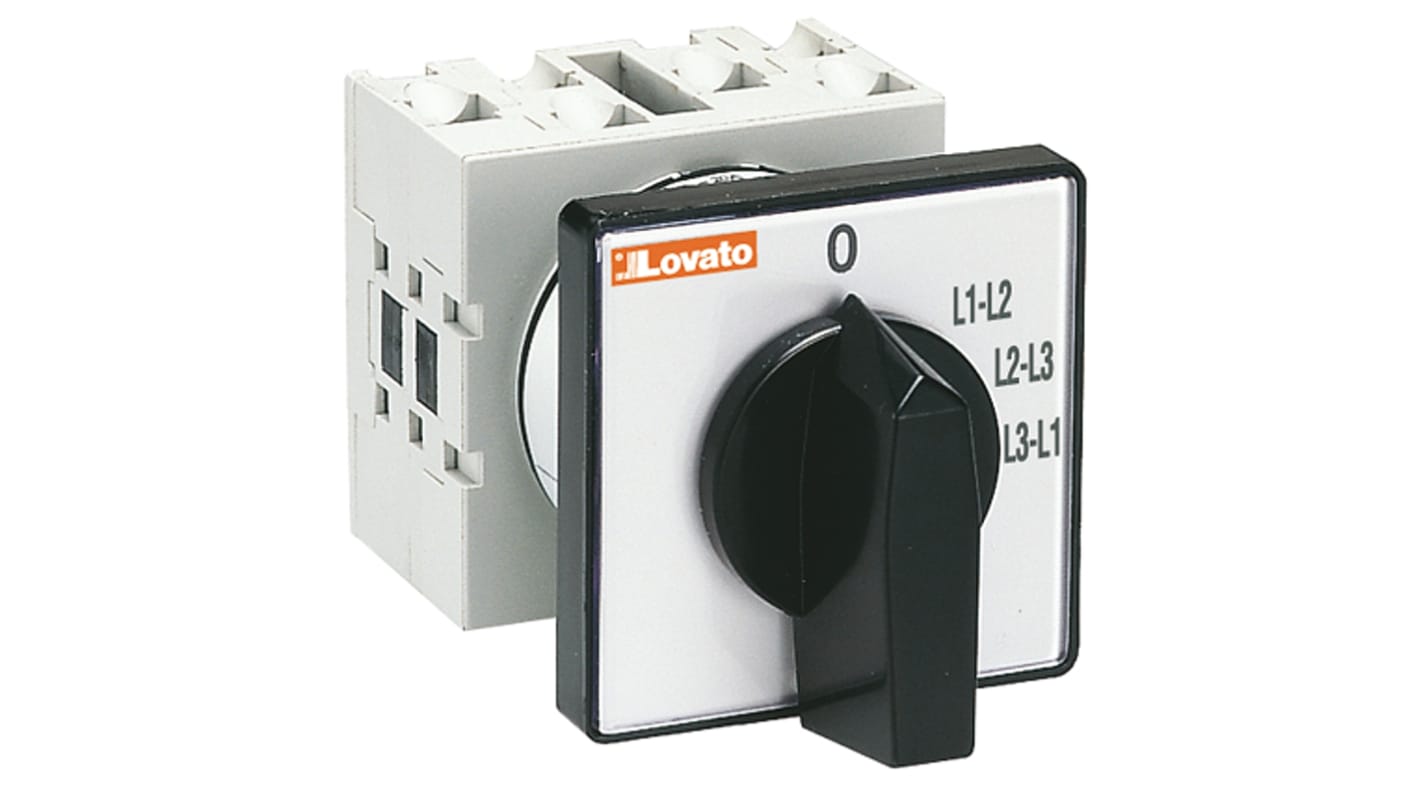

Lovato 4 Position 90° Ammeter Cam Switch, 16A, Knob Actuator
- RS Stock No.:
- 840-5605
- Mfr. Part No.:
- GX1698U
- Brand:
- Lovato
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 840-5605
- Mfr. Part No.:
- GX1698U
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Cam Switch Type | Ammeter Cam Switch | |
| Normal State Configuration | 2NO/3NC | |
| Electrical Phase | 1, 3 | |
| Maximum Current | 16A | |
| Number of Positions | 4 | |
| Terminal Type | Screw | |
| Angle of Throw | 90° | |
| Length | 48mm | |
| Width | 48mm | |
| Depth | 87.5mm | |
| Actuator Type | Knob | |
| Dimensions | 48 x 48 x 87.5mm | |
Select all | ||
|---|---|---|
Brand Lovato | ||
Cam Switch Type Ammeter Cam Switch | ||
Normal State Configuration 2NO/3NC | ||
Electrical Phase 1, 3 | ||
Maximum Current 16A | ||
Number of Positions 4 | ||
Terminal Type Screw | ||
Angle of Throw 90° | ||
Length 48mm | ||
Width 48mm | ||
Depth 87.5mm | ||
Actuator Type Knob | ||
Dimensions 48 x 48 x 87.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
GX Series Rotary Cam Switches
The Lovato GX rotary cam switches have been innovatively designed using advanced technology within the switching device field. Using the highest quality materials, the cam switches have a long life and high breaking capacity, as well as being quick and easy to install. The GX cam switches can be isolation in AC3 and AC23 duties and electromagnetic load switching, AC15 duty.
Compact Size
Dual breaking silver alloy contacts
Terminals have self-releasing cross-slotted captive screws
The switches are available in a variety of ratings and versions.
Dual breaking silver alloy contacts
Terminals have self-releasing cross-slotted captive screws
The switches are available in a variety of ratings and versions.
