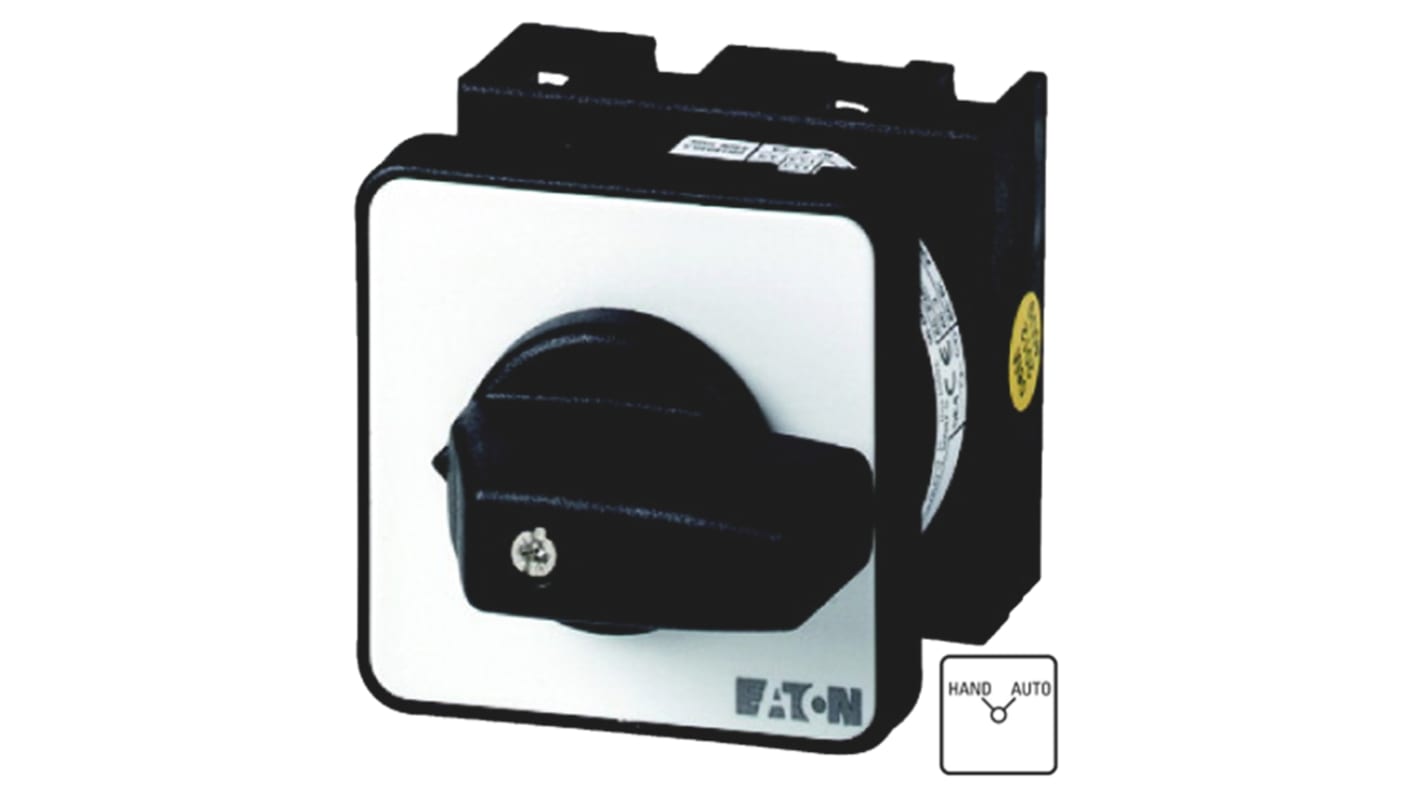

Eaton, 3P 2 Position 90° Changeover Cam Switch, 690V ac, 20A

RS Stock No.:: 295-2492
Mfr. Part No.:: 78628222 T0-3-15453/E/EZ-P1(RS295-2492)
Brand:: Eaton

Eaton, 3P 2 Position 90° Changeover Cam Switch, 690V ac, 20A

5 In stock - FREE next working day delivery available

Price Each

£30.58

(exc. VAT)

£36.70

(inc. VAT)

Units	Per unit
1 +	£30.58

RS Stock No.:: 295-2492
Mfr. Part No.:: 78628222 T0-3-15453/E/EZ-P1(RS295-2492)
Brand:: Eaton

Technical Reference

DS-015127-T0-3-15453_E-20140925

Legislation and Compliance

Product Details

Switches-22mm Single Hole or Standard Three-hole Flush Mounting

Black thumb-grip handle and silver escutcheon plate
Conform to IEC947/EN 60947
Maximum panel thickness 5mm
48 x 48mm switch front plate
Finger-proof terminals
IP65 for flush mounting three- hole mounting and IP55 for 22.5mm hole mounting (supplied with adaptor for single 22.5mm hole mounting)
Operating current: 20A
Operating temperature: –25 to +50°C

Approvals

UL, CSA

Note

Eaton formerly known as Moeller

Specifications

Attribute	Value
Series	Eaton Moeller
Pole and Throw Configuration	3P
Cam Switch Type	Changeover Cam Switch
Normal State Configuration	NO/NC
Maximum Current	20A
Maximum Voltage	690V ac
Number of Positions	2
Angle of Throw	90°
Length	48mm
Width	48mm
