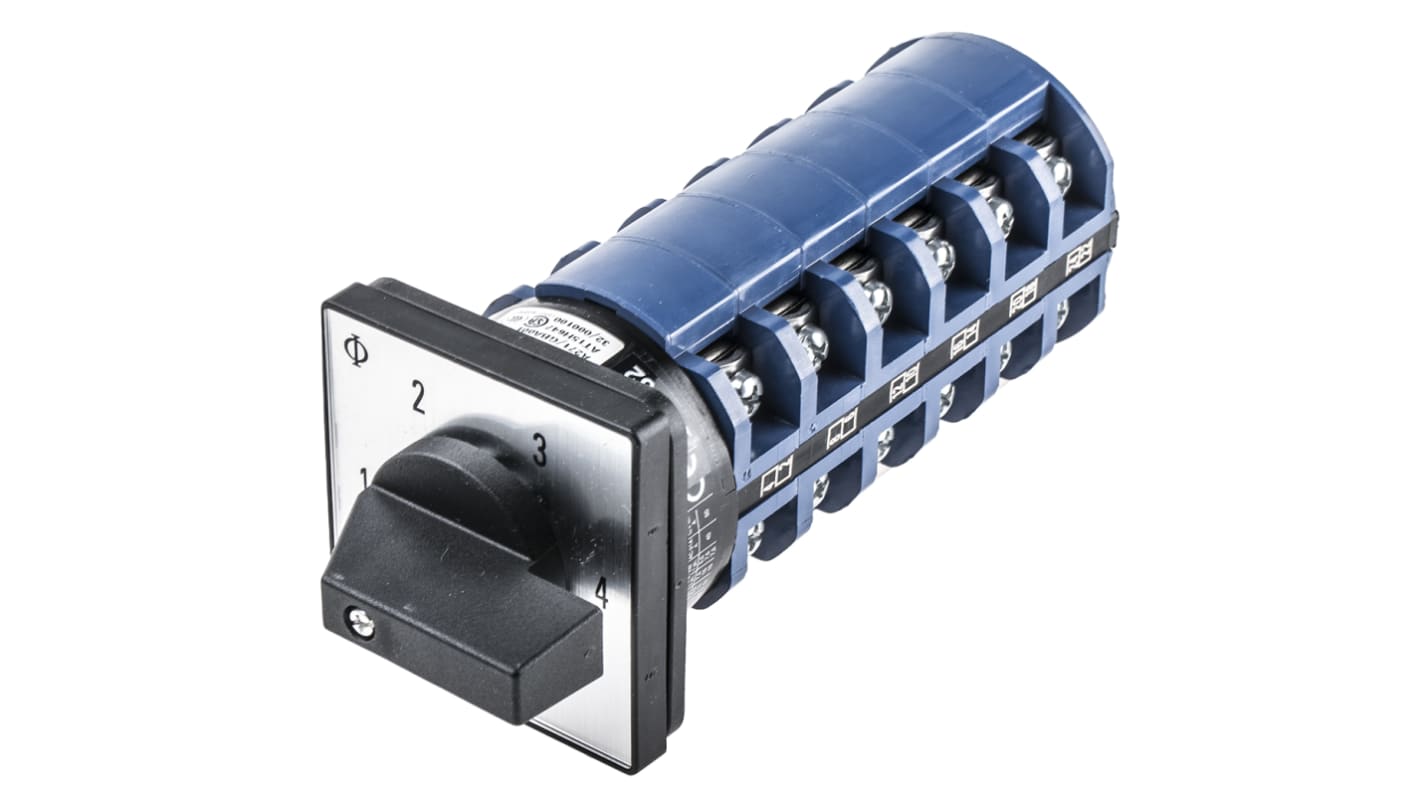

Kraus & Naimer 4 Position, Knob Actuator 50 A
- RS Stock No.:
- 293-7207
- Mfr. Part No.:
- C32.A271/GBA001.E
- Brand:
- Kraus & Naimer
Subtotal (1 unit)*
£186.00
(exc. VAT)
£223.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 7 unit(s) shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £186.00 |
*price indicative
- RS Stock No.:
- 293-7207
- Mfr. Part No.:
- C32.A271/GBA001.E
- Brand:
- Kraus & Naimer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kraus & Naimer | |
| Product Type | Cam Switch | |
| Mount Type | Panel | |
| Number of Positions | 4 | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 50A | |
| Maximum Operating Temperature | 55°C | |
| Actuator Type | Knob | |
| Contact Voltage | 690V | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | IEC 60947-3 | |
| Width | 64mm | |
| Length | 64mm | |
| Depth | 133.3mm | |
| Mechanical Life | 1000000Operations | |
| Select all | ||
|---|---|---|
Brand Kraus & Naimer | ||
Product Type Cam Switch | ||
Mount Type Panel | ||
Number of Positions 4 | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
IP Rating IP40 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 50A | ||
Maximum Operating Temperature 55°C | ||
Actuator Type Knob | ||
Contact Voltage 690V | ||
Hazardous Area Certification NO | ||
Standards/Approvals IEC 60947-3 | ||
Width 64mm | ||
Length 64mm | ||
Depth 133.3mm | ||
Mechanical Life 1000000Operations | ||
Multi-step Switches
Operational current to EN 60 947-3
Load break and motor ratings
Compact size with uniform mounting dimensions
Nominal voltage (all): 690V
Standards
EN 60 947, IEC 947-3, VDE 0660, EN 60204.1
