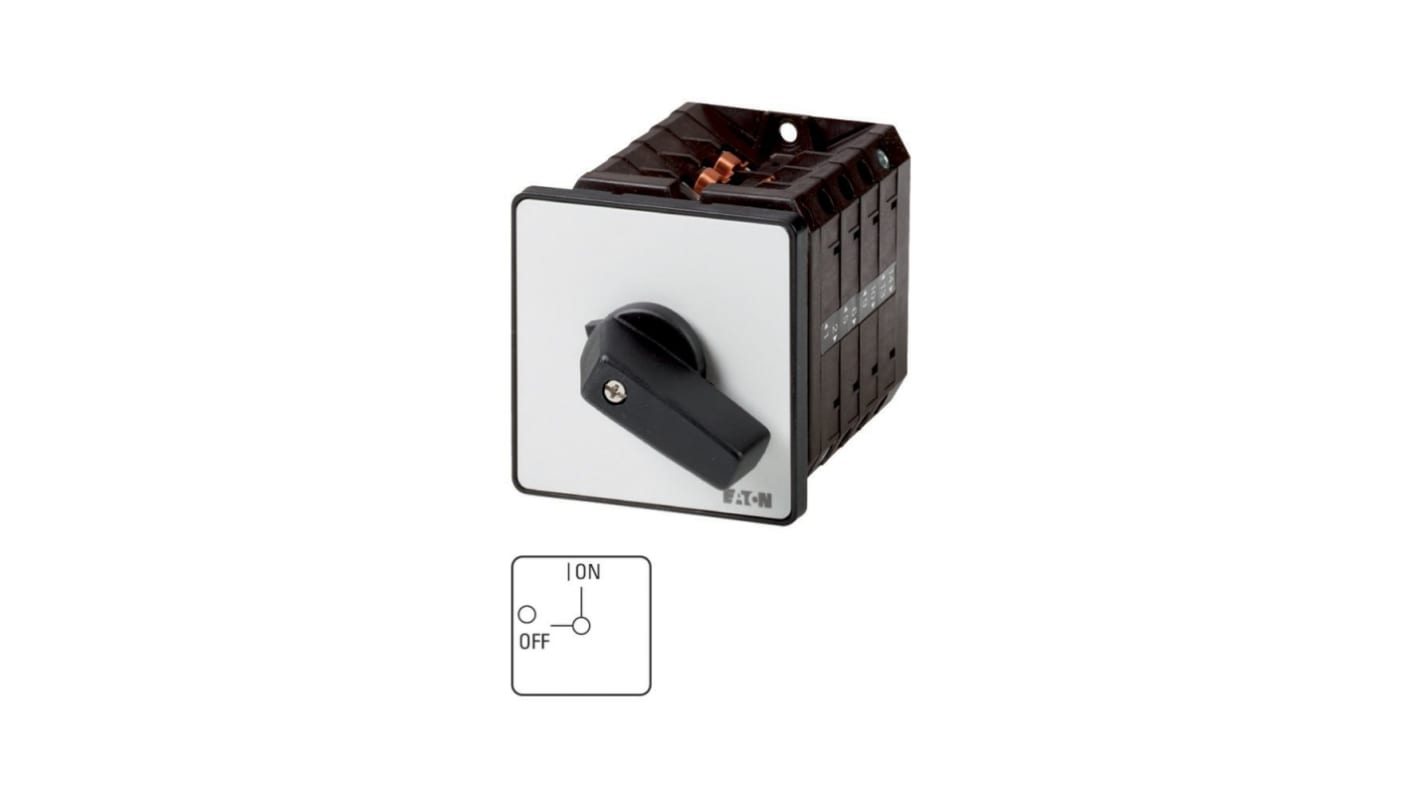

Eaton 2 Position 90 °, Short Thumb Grip Actuator 63 A
- RS Stock No.:
- 271-6078
- Mfr. Part No.:
- 094132 T5B-2-1/E
- Brand:
- Eaton
Subtotal (1 unit)*
£88.77
(exc. VAT)
£106.52
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £88.77 |
*price indicative
- RS Stock No.:
- 271-6078
- Mfr. Part No.:
- 094132 T5B-2-1/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Eaton Moeller | |
| Number of Positions | 2 | |
| Mount Type | Flush | |
| Terminal Type | Screw | |
| Number of Poles | 3 | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 63A | |
| Actuator Type | Short Thumb Grip | |
| Contact Voltage | 60V | |
| Maximum Operating Temperature | 50°C | |
| Width | 88mm | |
| Length | 108mm | |
| Depth | 88mm | |
| Standards/Approvals | IEC/EN 60947, IEC/EN 60947-3, VDE 0660, IEC/EN 60204 | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 500000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Eaton Moeller | ||
Number of Positions 2 | ||
Mount Type Flush | ||
Terminal Type Screw | ||
Number of Poles 3 | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 63A | ||
Actuator Type Short Thumb Grip | ||
Contact Voltage 60V | ||
Maximum Operating Temperature 50°C | ||
Width 88mm | ||
Length 108mm | ||
Depth 88mm | ||
Standards/Approvals IEC/EN 60947, IEC/EN 60947-3, VDE 0660, IEC/EN 60204 | ||
Hazardous Area Certification NO | ||
Mechanical Life 500000Cycles | ||
The Eaton On-Off switch can be used for many switching and control applications for example as ON-OFF, main, main/control or instrument switches. The switch disconnector has black thumb grip and front plate protective cover. Also it has maintain switching performance.
Part group reference T5B
Degree of protection front IP65
Design flush mounting
Note
Eaton formerly known as Moeller
