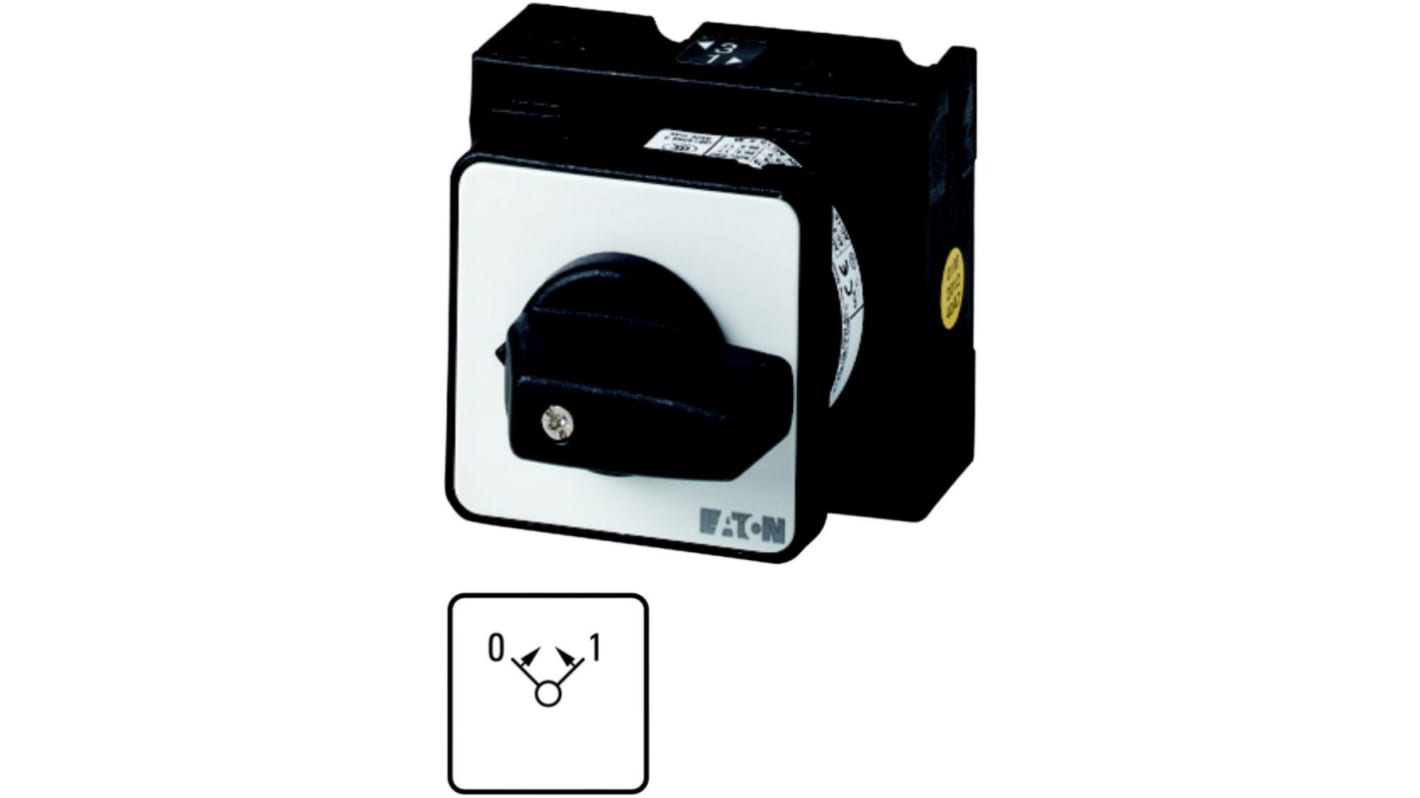

Eaton 2 Position 45 °, Toggle Actuator 20 A
- RS Stock No.:
- 271-5849
- Mfr. Part No.:
- 081572 T0-1-15366/E
- Brand:
- Eaton
Subtotal (1 unit)*
£22.70
(exc. VAT)
£27.24
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.70 |
*price indicative
- RS Stock No.:
- 271-5849
- Mfr. Part No.:
- 081572 T0-1-15366/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller | |
| Product Type | Cam Switch | |
| Mount Type | Flush | |
| Number of Positions | 2 | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Contact Voltage | 60V | |
| Actuator Type | Toggle | |
| Depth | 48mm | |
| Width | 48mm | |
| Standards/Approvals | CSA, VDE 0660, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL | |
| Hazardous Area Certification | No | |
| Length | 76mm | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller | ||
Product Type Cam Switch | ||
Mount Type Flush | ||
Number of Positions 2 | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Contact Voltage 60V | ||
Actuator Type Toggle | ||
Depth 48mm | ||
Width 48mm | ||
Standards/Approvals CSA, VDE 0660, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL | ||
Hazardous Area Certification No | ||
Length 76mm | ||
Mechanical Life 400000Cycles | ||
- COO (Country of Origin):
- GB
The Eaton ON OFF button is designed specifically for industrial use in hazardous area environments and are suitable for both indoor and outdoor installations. It has flush mounting and with spring-return from both directions.
Standards IEC/EN 60947
VDE approved
CSA approved
UL approved
Part group reference T0
Black thumb grip and front plate
Note
Eaton formerly known as Moeller
