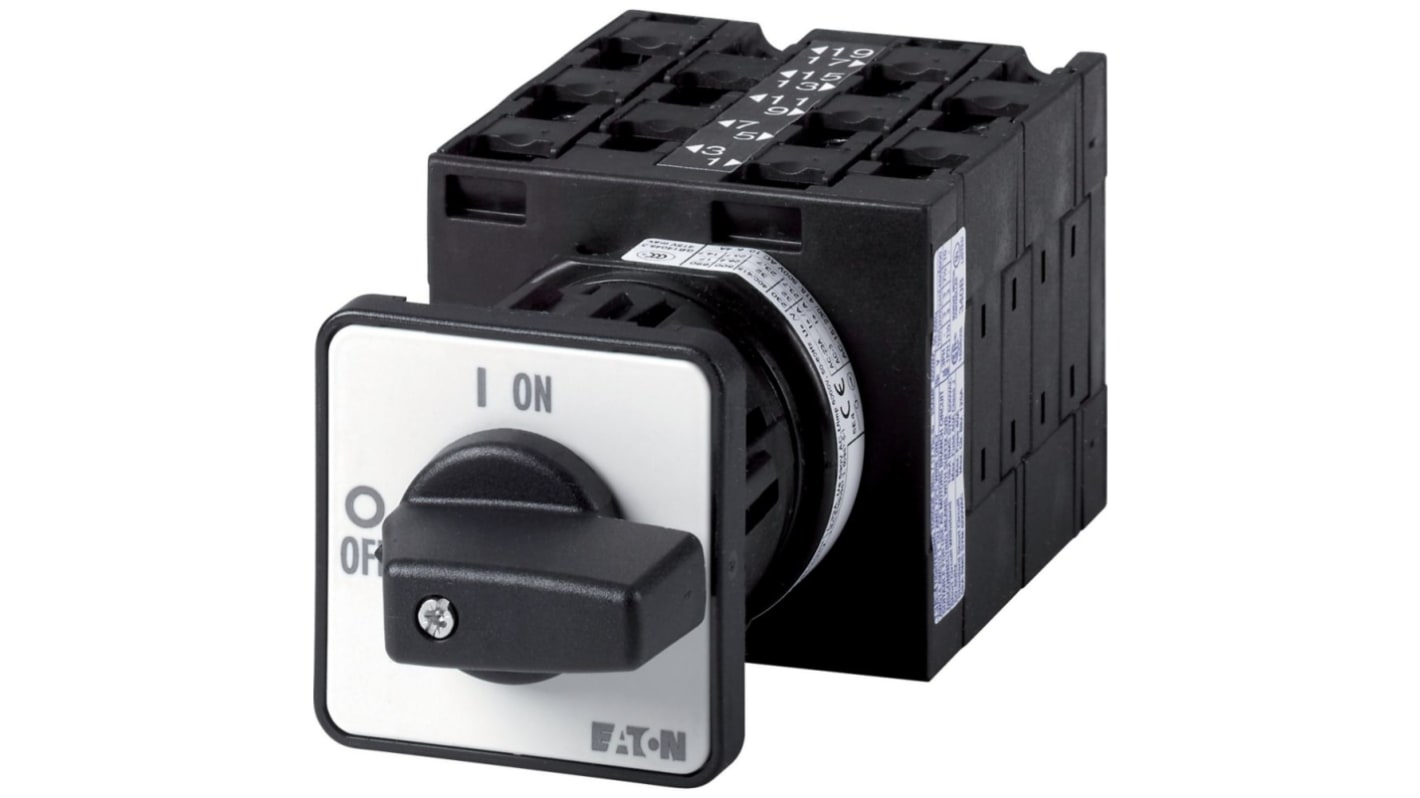

Eaton 9 Position 30 °, Toggle Actuator 32 A
- RS Stock No.:
- 271-5657
- Mfr. Part No.:
- 052372 T3-5-8247/Z
- Brand:
- Eaton
Subtotal (1 unit)*
£102.79
(exc. VAT)
£123.35
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £102.79 |
*price indicative
- RS Stock No.:
- 271-5657
- Mfr. Part No.:
- 052372 T3-5-8247/Z
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | T3 | |
| Electrical Phase | 3 | |
| Mount Type | Rear | |
| Number of Positions | 9 | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Angle of Throw | 30 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 32A | |
| Contact Voltage | 690V | |
| Actuator Type | Toggle | |
| Maximum Operating Temperature | 50°C | |
| Width | 61mm | |
| Depth | 167mm | |
| Length | 167mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | UL, CE, CSA, IEC/EN 60947, IEC/EN 60947-3, VDE 0660 | |
| Mechanical Life | 500000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series T3 | ||
Electrical Phase 3 | ||
Mount Type Rear | ||
Number of Positions 9 | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Angle of Throw 30 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 32A | ||
Contact Voltage 690V | ||
Actuator Type Toggle | ||
Maximum Operating Temperature 50°C | ||
Width 61mm | ||
Depth 167mm | ||
Length 167mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals UL, CE, CSA, IEC/EN 60947, IEC/EN 60947-3, VDE 0660 | ||
Mechanical Life 500000Cycles | ||
The Eaton electrical step switch disconnector used for many switching and control applications for example as ON-OFF, main, main/control or instrument switches. The step switch disconnector has black thumb grip and front plate protective cover.
Standards IEC/EN 60947
VDE approved
CSA approved
Switch-disconnector according to IEC/EN 60947-3
Part group reference T3
