Eaton 3 Position 90 °, Rotary Actuator 20 A
- RS Stock No.:
- 271-5463
- Mfr. Part No.:
- 218983 T0-3-8341/I1/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£57.62
(exc. VAT)
£69.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £57.62 |
*price indicative
- RS Stock No.:
- 271-5463
- Mfr. Part No.:
- 218983 T0-3-8341/I1/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller Series T0 | |
| Product Type | Cam Switch | |
| Number of Positions | 3 | |
| Mount Type | Surface | |
| Terminal Type | Screw | |
| Number of Poles | 5 | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 40°C | |
| Actuator Type | Rotary | |
| Contact Voltage | 690V | |
| Standards/Approvals | IEC/EN 60947, EN/IEC 60204 | |
| Length | 137mm | |
| Hazardous Area Certification | NO | |
| Depth | 130mm | |
| Width | 80mm | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller Series T0 | ||
Product Type Cam Switch | ||
Number of Positions 3 | ||
Mount Type Surface | ||
Terminal Type Screw | ||
Number of Poles 5 | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 40°C | ||
Actuator Type Rotary | ||
Contact Voltage 690V | ||
Standards/Approvals IEC/EN 60947, EN/IEC 60204 | ||
Length 137mm | ||
Hazardous Area Certification NO | ||
Depth 130mm | ||
Width 80mm | ||
Mechanical Life 400000Cycles | ||

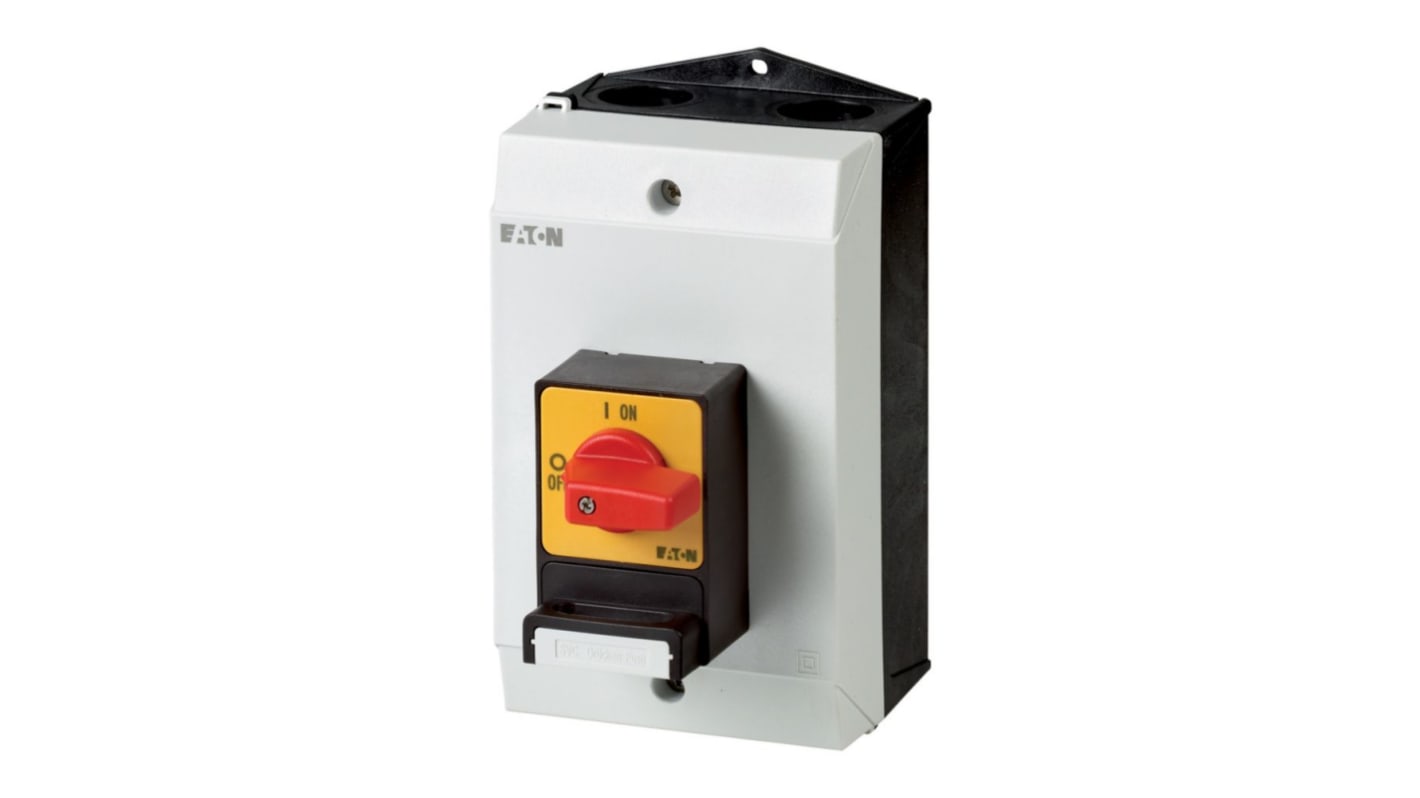

The Eaton Main switch can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. It has red rotary handle and yellow locking ring.
Maintenance switch
Part group reference T0
Emergency switching off function
Degree of protection IP65
