Eaton, 4P 90° On-Off Cam Switch, 690V (Volts), 20A, Door Coupling Rotary Drive Actuator
- RS Stock No.:
- 271-5172
- Mfr. Part No.:
- 098847 T0-2-8324/EA/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£44.20
(exc. VAT)
£53.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £44.20 |
*price indicative
- RS Stock No.:
- 271-5172
- Mfr. Part No.:
- 098847 T0-2-8324/EA/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Cam Switch Type | On-Off Cam Switch | |
Pole and Throw Configuration | 4P | |
Maximum Current | 20A | |
Maximum Voltage | 690V (Volts) | |
Angle of Throw | 90° | |
Actuator Type | Door Coupling Rotary Drive | |
Select all | ||
---|---|---|
Brand Eaton | ||
Cam Switch Type On-Off Cam Switch | ||
Pole and Throw Configuration 4P | ||
Maximum Current 20A | ||
Maximum Voltage 690V (Volts) | ||
Angle of Throw 90° | ||
Actuator Type Door Coupling Rotary Drive | ||
- COO (Country of Origin):
- GB
Eaton Cam Switch, 4P Pole and Throw Configuration, 20A Maximum Current - 098847 T0-2-8324/EA/SVB
This cam switch is a multifunctional electrical device designed for effective control in various settings. As an On-Off cam switch, it features a flush mount design ideal for standard installations. Measuring 111mm in length, 65mm in width, and 74mm in height, this 4 pole cam switch is suitable for reliable operation in diverse electrical applications.
Features & Benefits
• Integrated emergency shutdown functionality for safety
• Rated for a maximum current of 20A for robust performance
• IP65 protection ensures reliability in harsh environments
• Designed for easy installation with screw terminal connections
• Supports both single and three-phase electrical systems for versatility
• Mechanical lifespan of up to 400,000 operations for durability
• Rated for a maximum current of 20A for robust performance
• IP65 protection ensures reliability in harsh environments
• Designed for easy installation with screw terminal connections
• Supports both single and three-phase electrical systems for versatility
• Mechanical lifespan of up to 400,000 operations for durability
Applications
• Used for isolating power in electrical circuits
• Ideal for motor disconnections in industrial settings
• Suitable for flush mounting in control panels
• Effective in maintenance and service operations
• Ideal for motor disconnections in industrial settings
• Suitable for flush mounting in control panels
• Effective in maintenance and service operations
What operational features enhance safety during use?

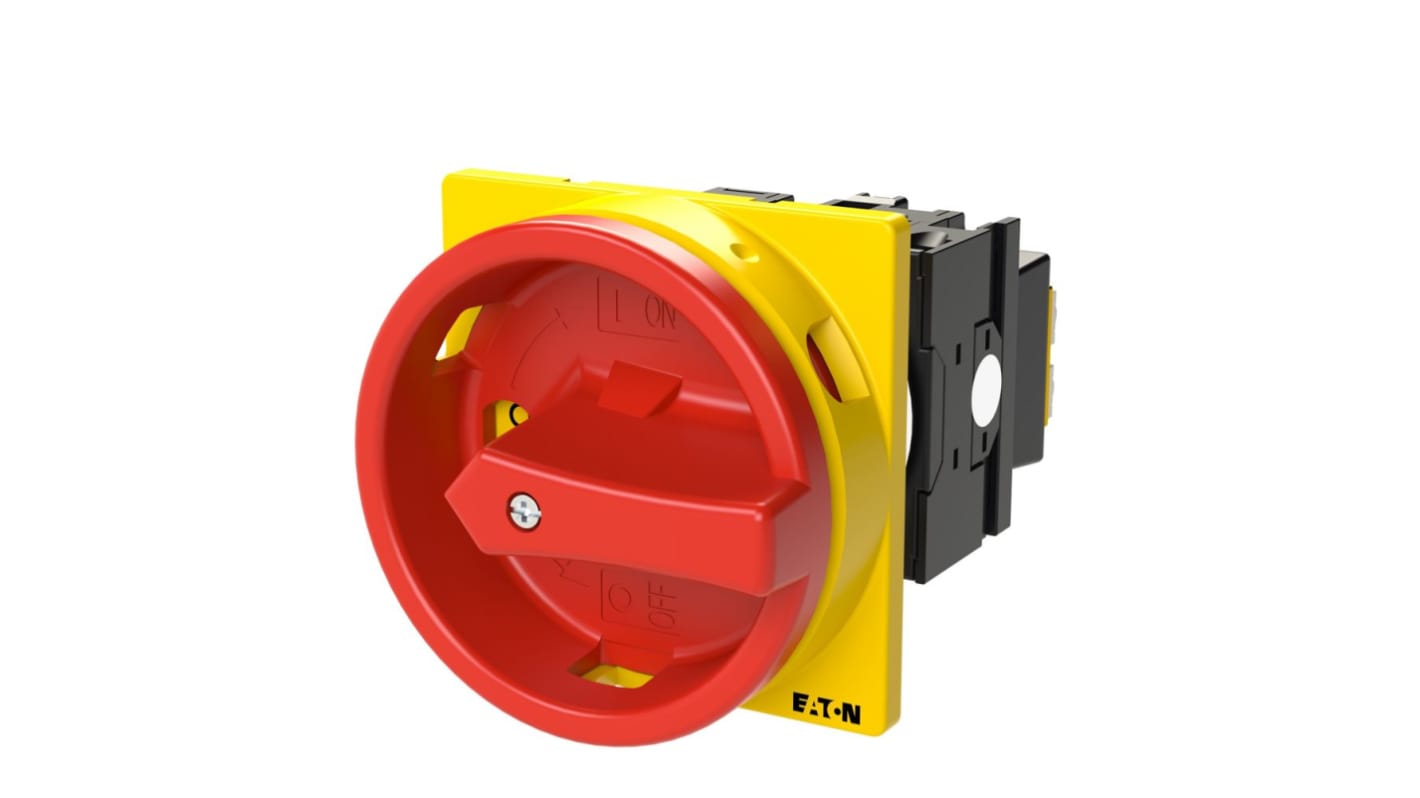

It is fitted with a red rotary handle and a yellow locking ring, ensuring clear visibility and secure operation. This design allows for quick identification, which is essential for emergency situations.
What environmental conditions can it withstand effectively?
The cam switch operates within a temperature range of -25°C to 50°C, making it suitable for varying climates, while its IP65 rating provides excellent protection against dust and water ingress.
How does installation work for this product?
Installation is straightforward, facilitated by its screw terminal connections and the ability for flush mounting on control panels, streamlining setup in various applications.
Note
Eaton formerly known as Moeller
