Eaton, 1P 8 Position 45° Multi Step Cam Switch, 690V (Volts), 20A, Toggle Actuator
- RS Stock No.:
- 271-4961
- Mfr. Part No.:
- 022241 T0-4-8245/EZ
- Brand:
- Eaton
Subtotal (1 unit)*
£45.38
(exc. VAT)
£54.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £45.38 |
*price indicative
- RS Stock No.:
- 271-4961
- Mfr. Part No.:
- 022241 T0-4-8245/EZ
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Pole and Throw Configuration | 1P | |
| Cam Switch Type | Multi Step Cam Switch | |
| Maximum Current | 20A | |
| Maximum Voltage | 690V (Volts) | |
| Number of Positions | 8 | |
| Angle of Throw | 45° | |
| Actuator Type | Toggle | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Pole and Throw Configuration 1P | ||
Cam Switch Type Multi Step Cam Switch | ||
Maximum Current 20A | ||
Maximum Voltage 690V (Volts) | ||
Number of Positions 8 | ||
Angle of Throw 45° | ||
Actuator Type Toggle | ||
- COO (Country of Origin):
- GB

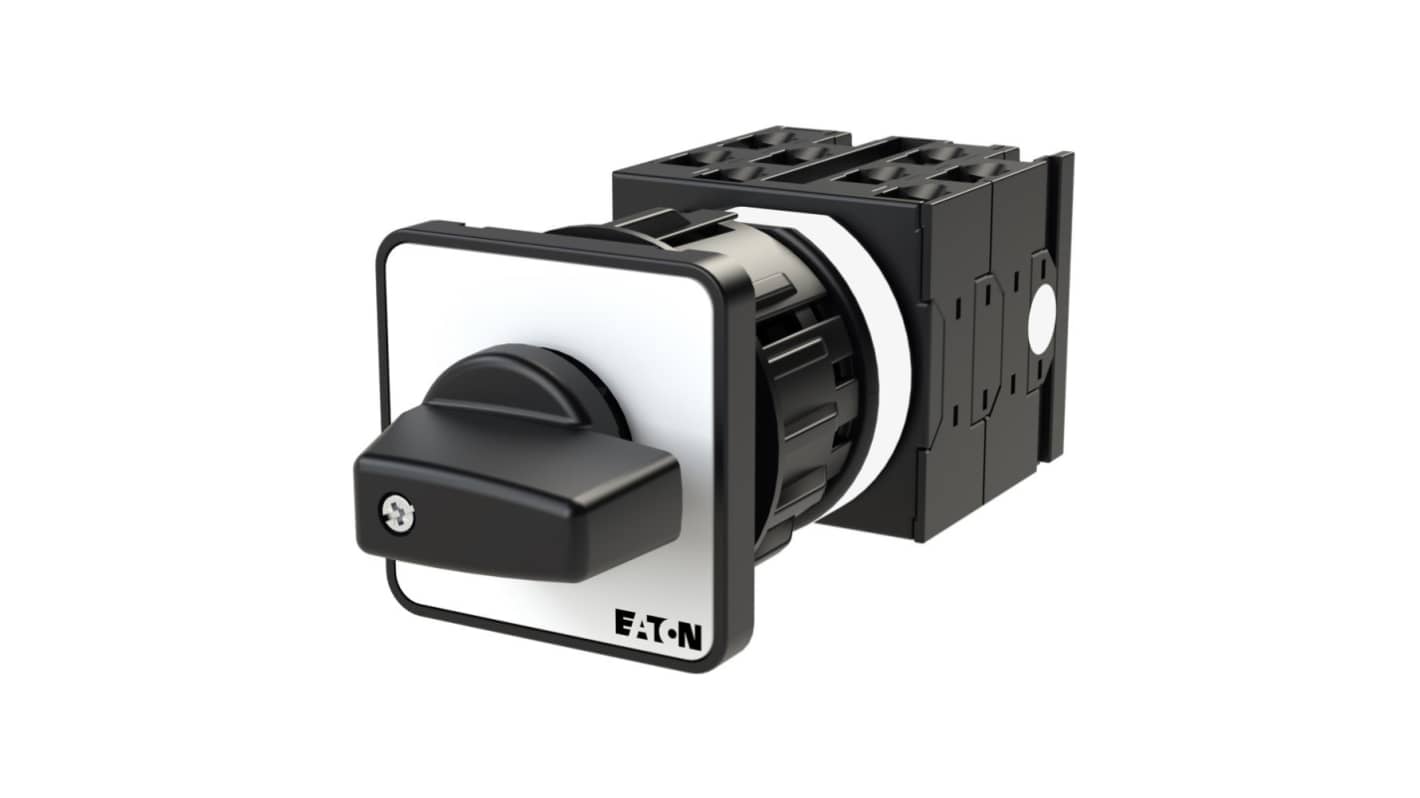

Eaton Cam Switch, 20A Maximum Current, 8 Positions - 022241 T0-4-8245/EZ
This Cam Switch is a versatile multi-step switching device designed for effortless control in electrical settings. With a compact design measuring 125mm x 48mm x 48mm, this front mounting solution effectively supports various applications while maintaining durability and performance standards.
Features & Benefits
• 690V operational limit ensures compatibility with high voltage applications
• Toggle Actuator facilitates user-friendly manual operation
• Multi-step design includes eight switch positions for versatile control
• Screw terminal connections simplify installation and wiring
• High mechanical lifespan of 400,000 operations reduces maintenance costs
• Toggle Actuator facilitates user-friendly manual operation
• Multi-step design includes eight switch positions for versatile control
• Screw terminal connections simplify installation and wiring
• High mechanical lifespan of 400,000 operations reduces maintenance costs
Applications
• Ideal for motor disconnects in branch circuits
• Suitable for electrical control in automation systems
• Utilised in mechanical requiring multi-position control
• Effective in environments where robust switching mechanisms are vital
• Suitable for electrical control in automation systems
• Utilised in mechanical requiring multi-position control
• Effective in environments where robust switching mechanisms are vital
What electrical ratings are suitable for use with this device?
It is rated for a maximum current of 20A and can handle voltages up to 690V, making it suitable for a variety of electrical applications without overloading.
How many switch positions does this device offer?
It features eight distinct switch positions for precise control, enabling flexibility in its applications.
What is the degree of protection provided by this Cam Switch?
The unit offers an IP65 degree of protection, ensuring dust tightness and protection against water ingress, making it suitable for challenging environments.
Can this device be used in damp environments?
Yes, it is designed to withstand damp conditions, making it ideal for various indoor and outdoor applications.
Note
Eaton formerly known as Moeller
