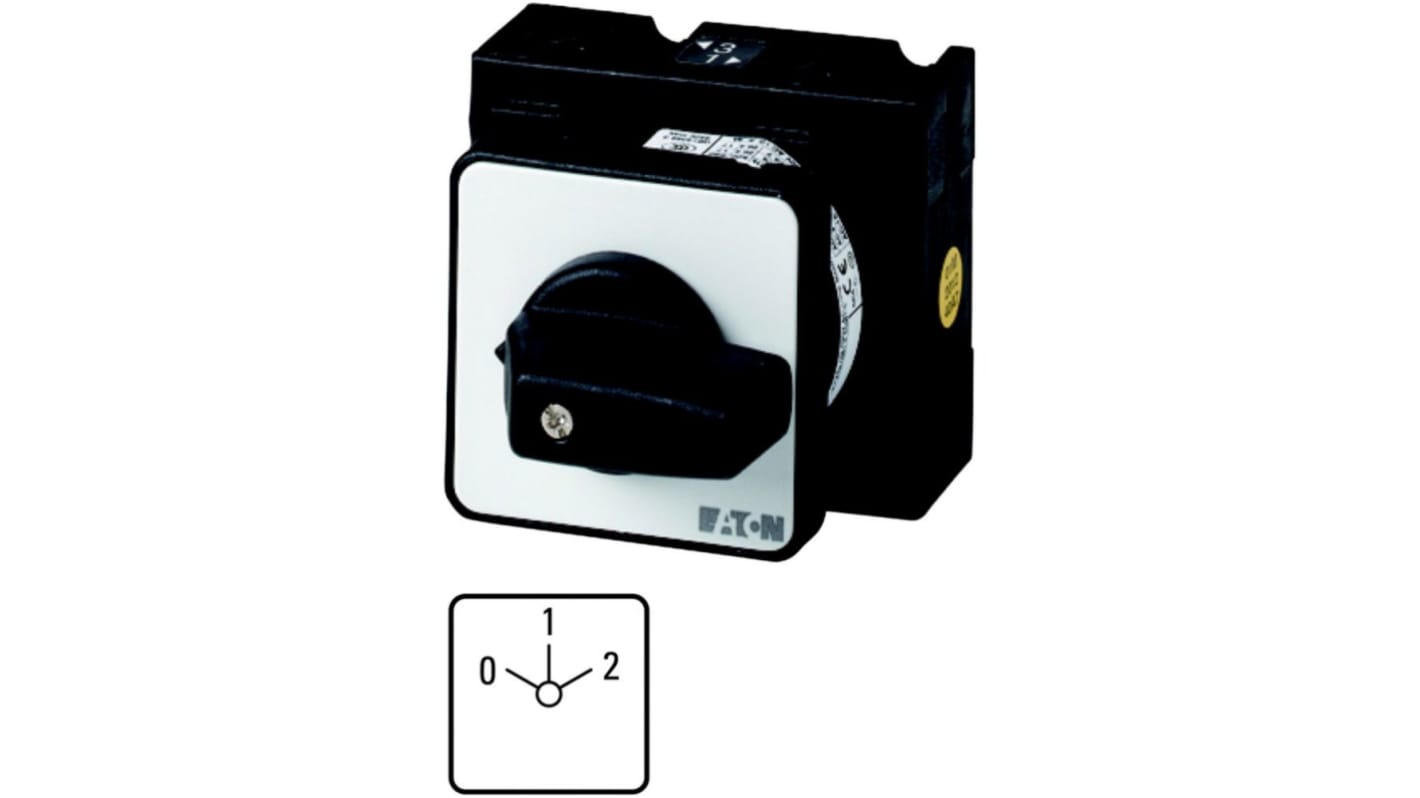

Eaton 3 Position 60 °, Toggle Actuator 32 A
- RS Stock No.:
- 271-4932
- Mfr. Part No.:
- 020484 T3-4-47/E
- Brand:
- Eaton
Subtotal (1 unit)*
£91.61
(exc. VAT)
£109.93
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £91.61 |
*price indicative
- RS Stock No.:
- 271-4932
- Mfr. Part No.:
- 020484 T3-4-47/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Eaton Moeller T3 | |
| Electrical Phase | 3 | |
| Mount Type | Flush | |
| Number of Positions | 3 | |
| Terminal Type | Screw | |
| Number of Poles | 3 | |
| Angle of Throw | 60 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 32A | |
| Maximum Operating Temperature | 50°C | |
| Actuator Type | Toggle | |
| Contact Voltage | 60V | |
| Width | 54mm | |
| Hazardous Area Certification | NO | |
| Depth | 61mm | |
| Length | 114mm | |
| Standards/Approvals | VDE 0660, IEC/EN 60947, IEC/EN 60947-3, UL, CE, CSA, IEC/EN 60204 | |
| Mechanical Life | 500000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Eaton Moeller T3 | ||
Electrical Phase 3 | ||
Mount Type Flush | ||
Number of Positions 3 | ||
Terminal Type Screw | ||
Number of Poles 3 | ||
Angle of Throw 60 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 32A | ||
Maximum Operating Temperature 50°C | ||
Actuator Type Toggle | ||
Contact Voltage 60V | ||
Width 54mm | ||
Hazardous Area Certification NO | ||
Depth 61mm | ||
Length 114mm | ||
Standards/Approvals VDE 0660, IEC/EN 60947, IEC/EN 60947-3, UL, CE, CSA, IEC/EN 60204 | ||
Mechanical Life 500000Cycles | ||
The Eaton Multi-speed control switch is available with black thumb grip and front plate. The switch allow the user to turn a knob or shaft that increases or decreases the resistance conducted through the contacts depending on the direction of the turn.
Degree of protection front IP65
Design flush mounting
Switching function 2 speeds
