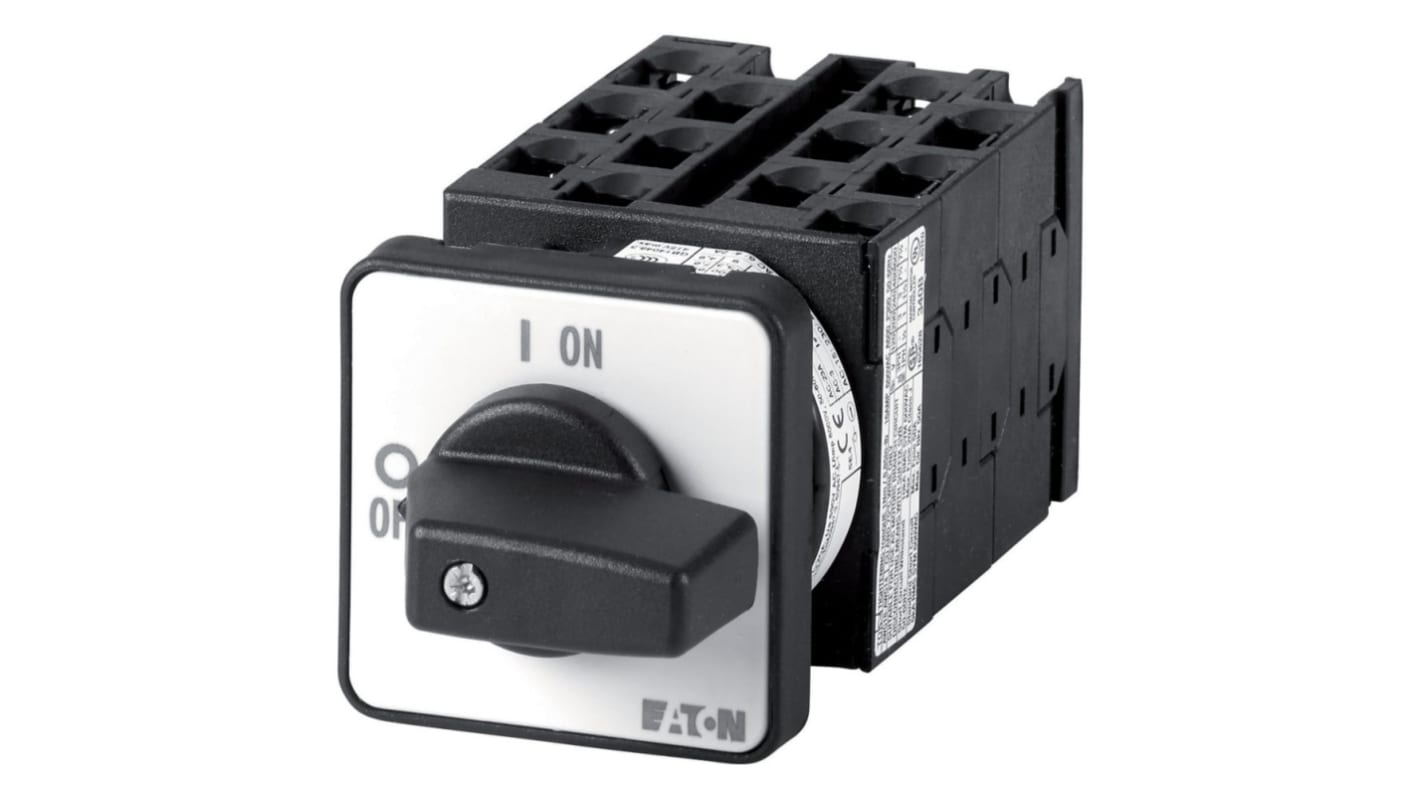

Eaton 7 Position 45 °, Short Thumb Grip Actuator 20 A
- RS Stock No.:
- 271-4675
- Mfr. Part No.:
- 015348 T0-6-15105/E
- Brand:
- Eaton
Subtotal (1 unit)*
£65.03
(exc. VAT)
£78.04
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £65.03 |
*price indicative
- RS Stock No.:
- 271-4675
- Mfr. Part No.:
- 015348 T0-6-15105/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Moeller | |
| Mount Type | Flush | |
| Number of Positions | 7 | |
| Terminal Type | Screw | |
| Number of Poles | 3 | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Contact Voltage | 690V | |
| Actuator Type | Short Thumb Grip | |
| Maximum Operating Temperature | 50°C | |
| Width | 48mm | |
| Hazardous Area Certification | NO | |
| Length | 124mm | |
| Standards/Approvals | UL, CE, CSA, IEC/EN 60947, IEC/EN 60947-3, VDE 0660 | |
| Depth | 124mm | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Moeller | ||
Mount Type Flush | ||
Number of Positions 7 | ||
Terminal Type Screw | ||
Number of Poles 3 | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Contact Voltage 690V | ||
Actuator Type Short Thumb Grip | ||
Maximum Operating Temperature 50°C | ||
Width 48mm | ||
Hazardous Area Certification NO | ||
Length 124mm | ||
Standards/Approvals UL, CE, CSA, IEC/EN 60947, IEC/EN 60947-3, VDE 0660 | ||
Depth 124mm | ||
Mechanical Life 400000Cycles | ||
The Eaton Reversing multi-speed control switch is available with black thumb grip and front plate. The switch allow the user to turn a knob or shaft that increases or decreases the resistance conducted through the contacts depending on the direction of the turn.
Degree of protection front IP65
Design flush mounting
Switching function one tapped winding
Note
Eaton formerly known as Moeller
