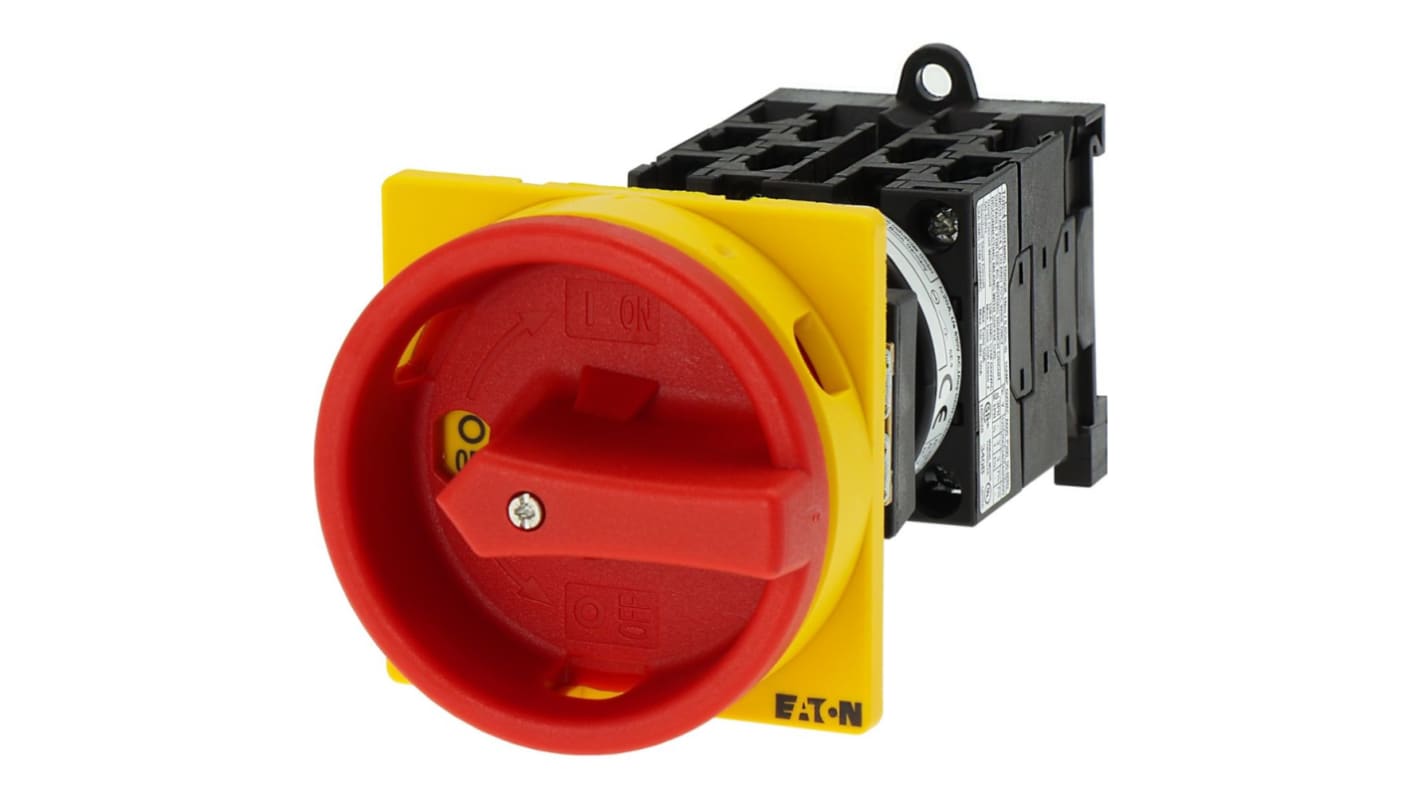

Eaton 2 Position 90 °, Short Thumb Grip Actuator 20 A
- RS Stock No.:
- 271-4550
- Mfr. Part No.:
- 014006 T0-4-8344/IVS
- Brand:
- Eaton
Subtotal (1 unit)*
£48.30
(exc. VAT)
£57.96
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £48.30 |
*price indicative
- RS Stock No.:
- 271-4550
- Mfr. Part No.:
- 014006 T0-4-8344/IVS
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Eaton Moeller | |
| Number of Positions | 2 | |
| Mount Type | Board | |
| Terminal Type | Screw | |
| Number of Poles | 8 | |
| Angle of Throw | 90 ° | |
| IP Rating | IP30 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Contact Voltage | 690V | |
| Actuator Type | Short Thumb Grip | |
| Maximum Operating Temperature | 50°C | |
| Length | 111mm | |
| Width | 54mm | |
| Standards/Approvals | CE, CSA, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL 60947-4-1, VDE 0660 | |
| Hazardous Area Certification | NO | |
| Depth | 55mm | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Eaton Moeller | ||
Number of Positions 2 | ||
Mount Type Board | ||
Terminal Type Screw | ||
Number of Poles 8 | ||
Angle of Throw 90 ° | ||
IP Rating IP30 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Contact Voltage 690V | ||
Actuator Type Short Thumb Grip | ||
Maximum Operating Temperature 50°C | ||
Length 111mm | ||
Width 54mm | ||
Standards/Approvals CE, CSA, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL 60947-4-1, VDE 0660 | ||
Hazardous Area Certification NO | ||
Depth 55mm | ||
Mechanical Life 400000Cycles | ||
Eaton Cam Switch, 20A Maximum Current, 690V Maximum Voltage - 014006 T0-4-8344/IVS
This cam switch is a robust on-off mechanism designed for electrical phase control in various applications. With a compact size of 111mm in length, 54mm in width, and 55mm in height, it features an 8-pole configuration and is suitable for panel mounting. Built to handle a maximum current of 20A and voltage of 690V, this device offers a reliable solution for controlling electrical circuits.
Features & Benefits
• Constructed with high-quality materials for durability
• Black short thumb grip allows for easy operation
• Terminal type is screw-based for secure connections
• Versatile application in single-phase and three-phase systems
• Rated short-time withstand current of 320A for safety
Applications
• Suitable for service distribution board installations
• Ideal for use as a motor disconnect switch
• Effective in controlling branch circuits
• Used in various electrical and mechanical environments
• Designed for ground mounting
What voltage and current ratings does this switch support?
The device is rated for a maximum operational voltage of 690V and can handle a continuous current of up to 20A, making it suitable for various applications.
How does the mechanical lifespan of this switch affect its usage?
With a mechanical lifespan of 400,000 operations, it minimises the need for frequent replacements, enhancing reliability during its operational life.
Can this switch be installed in different mounting positions?
Yes, it is designed to accommodate different mounting positions, providing flexibility in installation across various setups and environments.
Note
Eaton formerly known as Moeller
