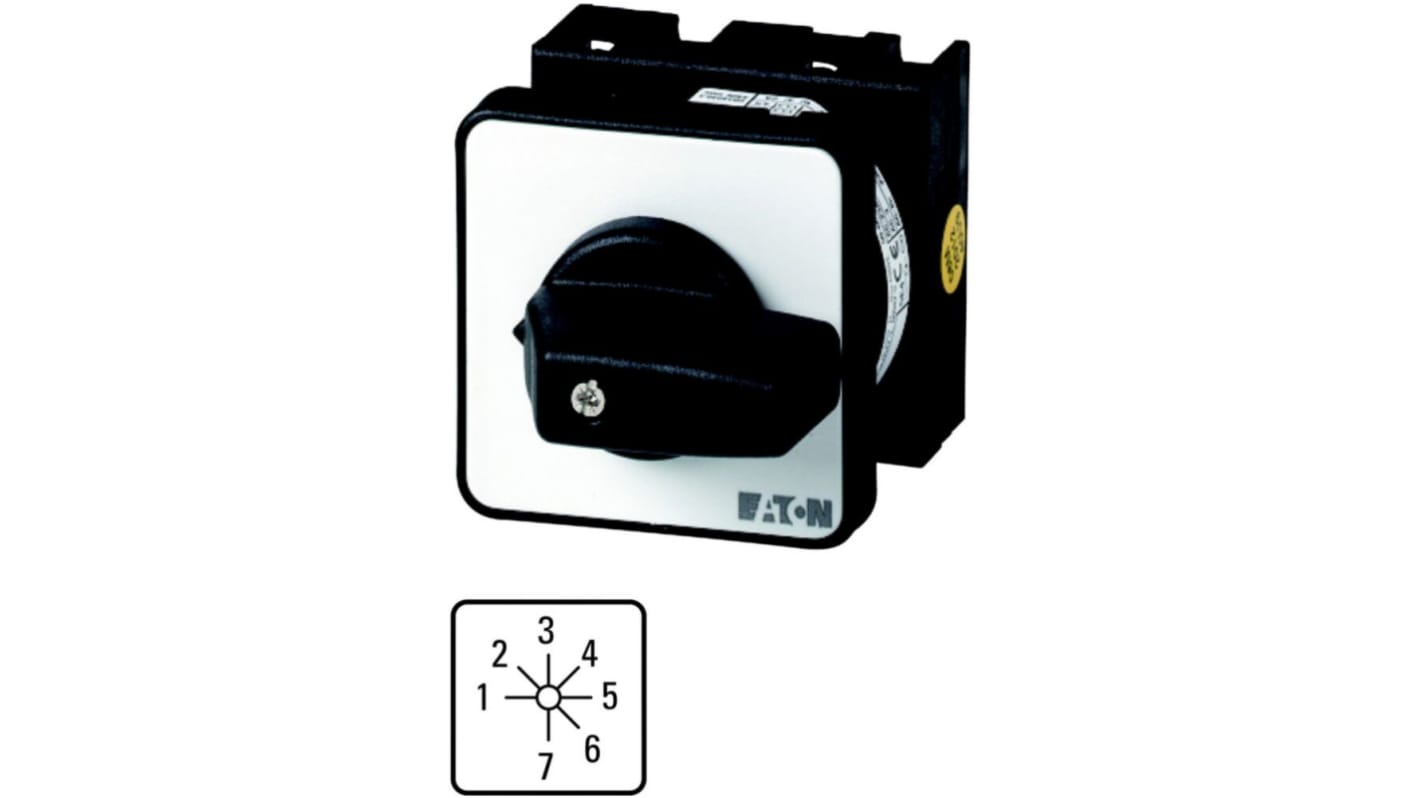

Eaton, 1P 7 Position 45° Multi Step Cam Switch, 690V (Volts), 20A, Toggle Actuator

RS Stock No.:: 271-4514
Mfr. Part No.:: 013794 T0-4-181/E
Brand:: Eaton

Eaton, 1P 7 Position 45° Multi Step Cam Switch, 690V (Volts), 20A, Toggle Actuator

Available to back order for despatch 11/09/2024

Price Each

£46.13

(exc. VAT)

£55.36

(inc. VAT)

Units	Per unit
1 +	£46.13

RS Stock No.:: 271-4514
Mfr. Part No.:: 013794 T0-4-181/E
Brand:: Eaton

Technical Reference

Datasheet - 013794

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

The Eaton electrical step switch disconnector used for many switching and control applications for example as ON-OFF, main, main/control or instrument switches. The step switch disconnector has black thumb grip and front plate protective cover.

Standards IEC/EN 60947
VDE approved
CSA approved
Switch-disconnector according to IEC/EN 60947-3
Part group reference T0

Note

Eaton formerly known as Moeller

Specifications

Attribute	Value
Cam Switch Type	Multi Step Cam Switch
Pole and Throw Configuration	1P
Series	Moeller
Maximum Current	20A
Maximum Voltage	690V (Volts)
Number of Positions	7
Angle of Throw	45°
Actuator Type	Toggle
