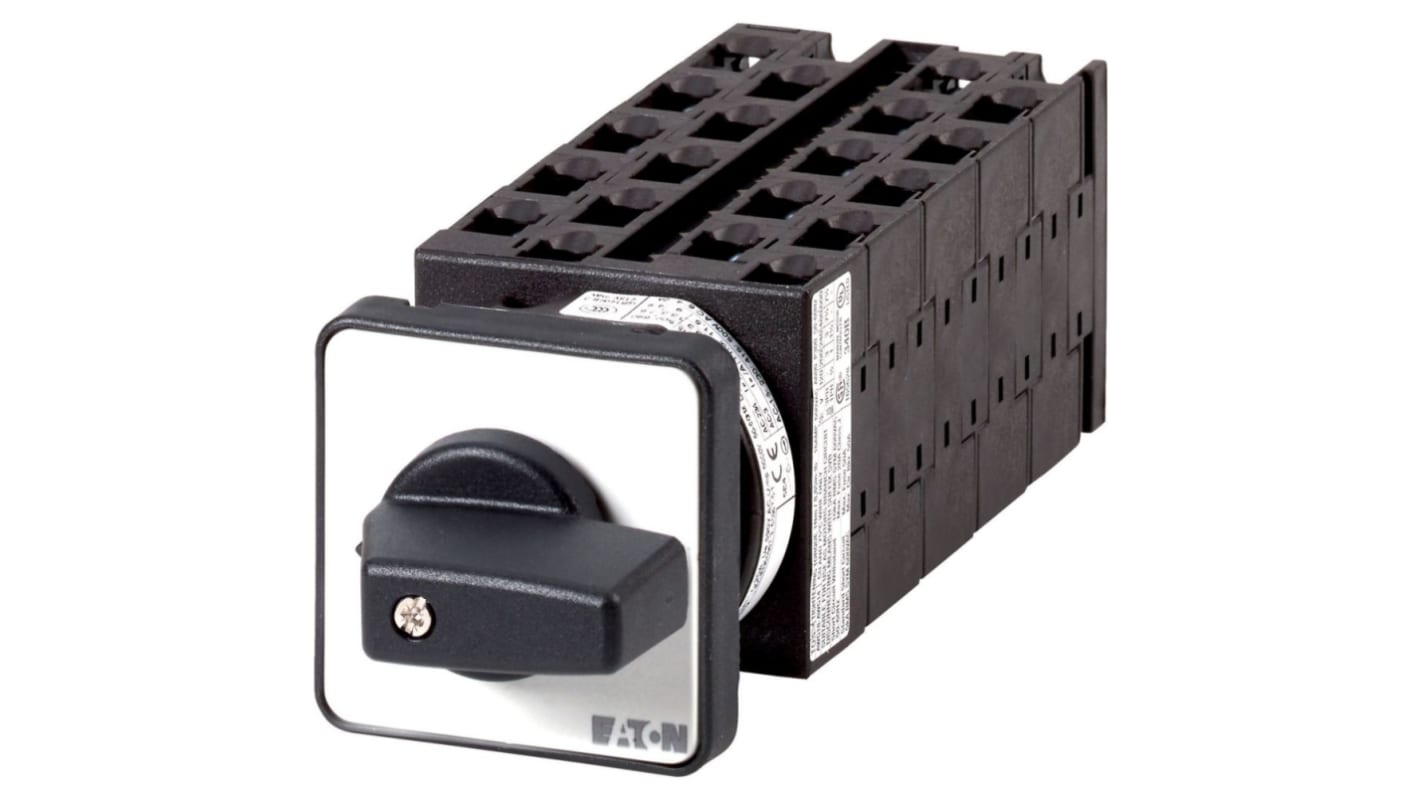

Eaton, 10P 3 Position 60° Changeover Cam Switch, 690V (Volts), 20A, Short Thumb Grip Actuator
- RS Stock No.:
- 271-4200
- Mfr. Part No.:
- 009917 T0-10-8366/E
- Brand:
- Eaton
Subtotal (1 unit)*
£93.55
(exc. VAT)
£112.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £93.55 |
*price indicative
- RS Stock No.:
- 271-4200
- Mfr. Part No.:
- 009917 T0-10-8366/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Pole and Throw Configuration | 10P | |
Cam Switch Type | Changeover Cam Switch | |
Maximum Current | 20A | |
Maximum Voltage | 690V (Volts) | |
Number of Positions | 3 | |
Angle of Throw | 60° | |
Actuator Type | Short Thumb Grip | |
Select all | ||
---|---|---|
Brand Eaton | ||
Pole and Throw Configuration 10P | ||
Cam Switch Type Changeover Cam Switch | ||
Maximum Current 20A | ||
Maximum Voltage 690V (Volts) | ||
Number of Positions 3 | ||
Angle of Throw 60° | ||
Actuator Type Short Thumb Grip | ||
- COO (Country of Origin):
- GB
Eaton Cam Switch, 10P Pole and Throw Configuration, 20A Maximum Current - 009917 T0-10-8366/E
This cam switch is a robust changeover solution designed for diverse electrical applications. It features a compact design measuring 162mm in length, 48mm in width, and a depth of 48mm, making it suitable for flush mounting. Engineered for 1 or 3 phases, it accommodates currents up to 20A and operates at a maximum voltage of 690V. With a lifespan of 400,000 operations, this switch ensures long-lasting performance in challenging environments.
Features & Benefits
• Changeover functionality offers versatile electrical control
• Maximum voltage capacity of 690V supports high-demand usage
• Screw terminal design facilitates simple, secure connections
• 60° angle of throw allows quick and precise switching
• Mechanical durability ensures reliability over extensive operational cycles
• Rated for ambient temperatures from -25°C to 50°C for flexibility
• Maximum voltage capacity of 690V supports high-demand usage
• Screw terminal design facilitates simple, secure connections
• 60° angle of throw allows quick and precise switching
• Mechanical durability ensures reliability over extensive operational cycles
• Rated for ambient temperatures from -25°C to 50°C for flexibility
Applications
• Suitable for branch circuits across various electrical systems
• Ideal for motor disconnection in industrial settings
• Utilised in control panels requiring straightforward switching
• Used in automation where changeover functionality is necessary
• Ideal for motor disconnection in industrial settings
• Utilised in control panels requiring straightforward switching
• Used in automation where changeover functionality is necessary
What current ratings is this cam switch designed to handle?
This switch can handle a rated current of 20A, making it suitable for a wide range of applications, including motor control and branching circuits.
How does the installation of this switch accommodate different mounting styles?
It is designed for flush mounting, which allows for seamless integration into control panels or enclosures, ensuring a clean aesthetic while maintaining functionality.
What protection ratings are associated with this electrical switch?
The product offers IP65 and NEMA 12 ratings, providing excellent resistance to dust and moisture, suitable for both indoor and outdoor applications.
Can two terminal connections of different sizes be used in this product?
Yes, it accommodates terminal capacities for flexible conductors ranging from 0.75mm² to 2.5mm² and solid conductors from 1mm² to 2.5mm², allowing for versatile installation options.
Note
Eaton formerly known as Moeller
