Eaton 90 °, Rotary Actuator 20 A
- RS Stock No.:
- 271-4065
- Mfr. Part No.:
- 007975 T0-2-15169/EA/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£47.11
(exc. VAT)
£56.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.11 |
*price indicative
- RS Stock No.:
- 271-4065
- Mfr. Part No.:
- 007975 T0-2-15169/EA/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Eaton Moeller | |
| Mount Type | Flush | |
| Terminal Type | Screw | |
| Number of Poles | 3 | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Actuator Type | Rotary | |
| Maximum Operating Temperature | 50°C | |
| Contact Voltage | 690V | |
| Depth | 111mm | |
| Standards/Approvals | IEC/EN 60947, CSA, CE, VDE 0660, UL, IEC/EN 60947-3 | |
| Length | 111mm | |
| Hazardous Area Certification | NO | |
| Width | 65mm | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Eaton Moeller | ||
Mount Type Flush | ||
Terminal Type Screw | ||
Number of Poles 3 | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Actuator Type Rotary | ||
Maximum Operating Temperature 50°C | ||
Contact Voltage 690V | ||
Depth 111mm | ||
Standards/Approvals IEC/EN 60947, CSA, CE, VDE 0660, UL, IEC/EN 60947-3 | ||
Length 111mm | ||
Hazardous Area Certification NO | ||
Width 65mm | ||
Mechanical Life 400000Cycles | ||
- COO (Country of Origin):
- GB

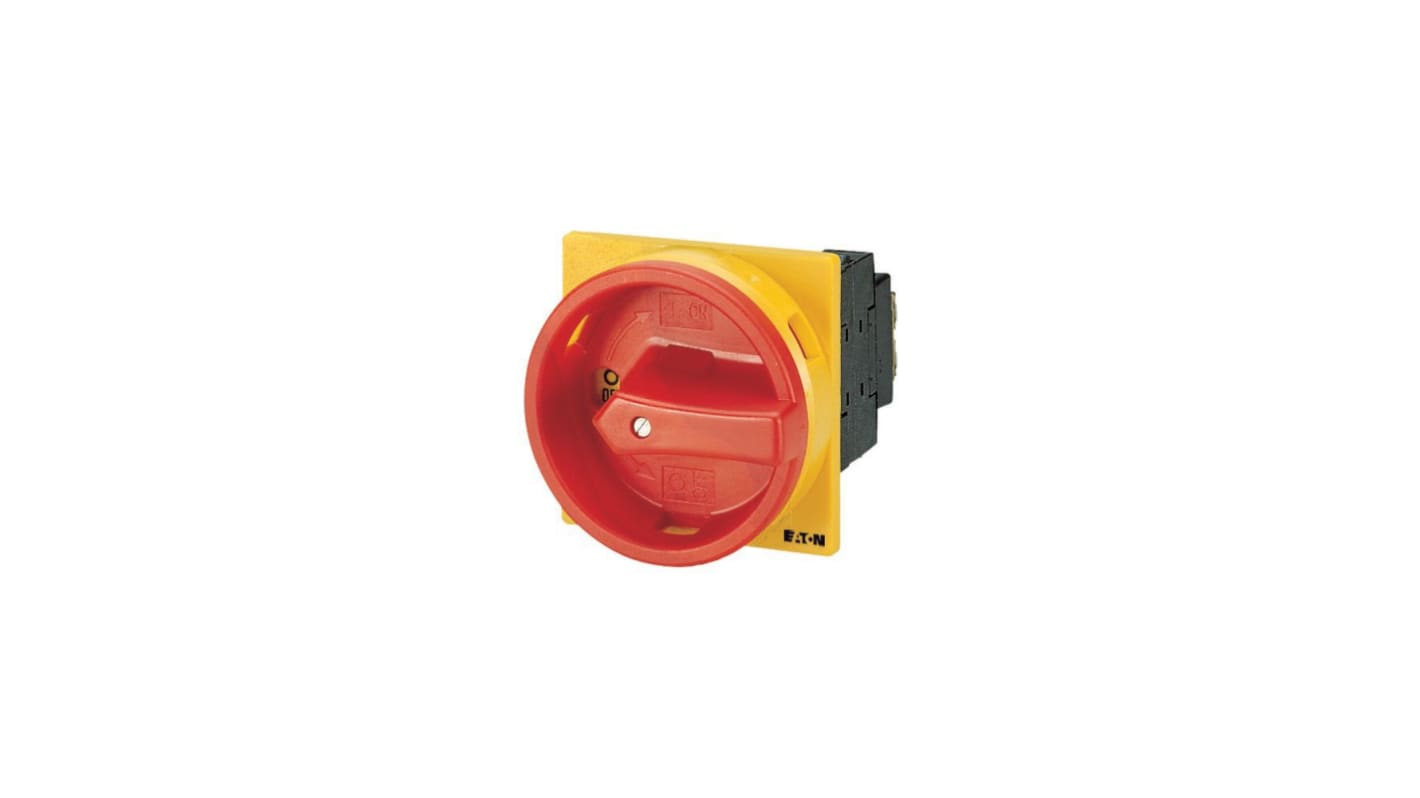

The Eaton Main switch can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. It has red rotary handle and yellow locking ring.
Maintenance switch
Part group reference T0
Emergency switching off function
Degree of protection front IP65
Note
Eaton formerly known as Moeller
