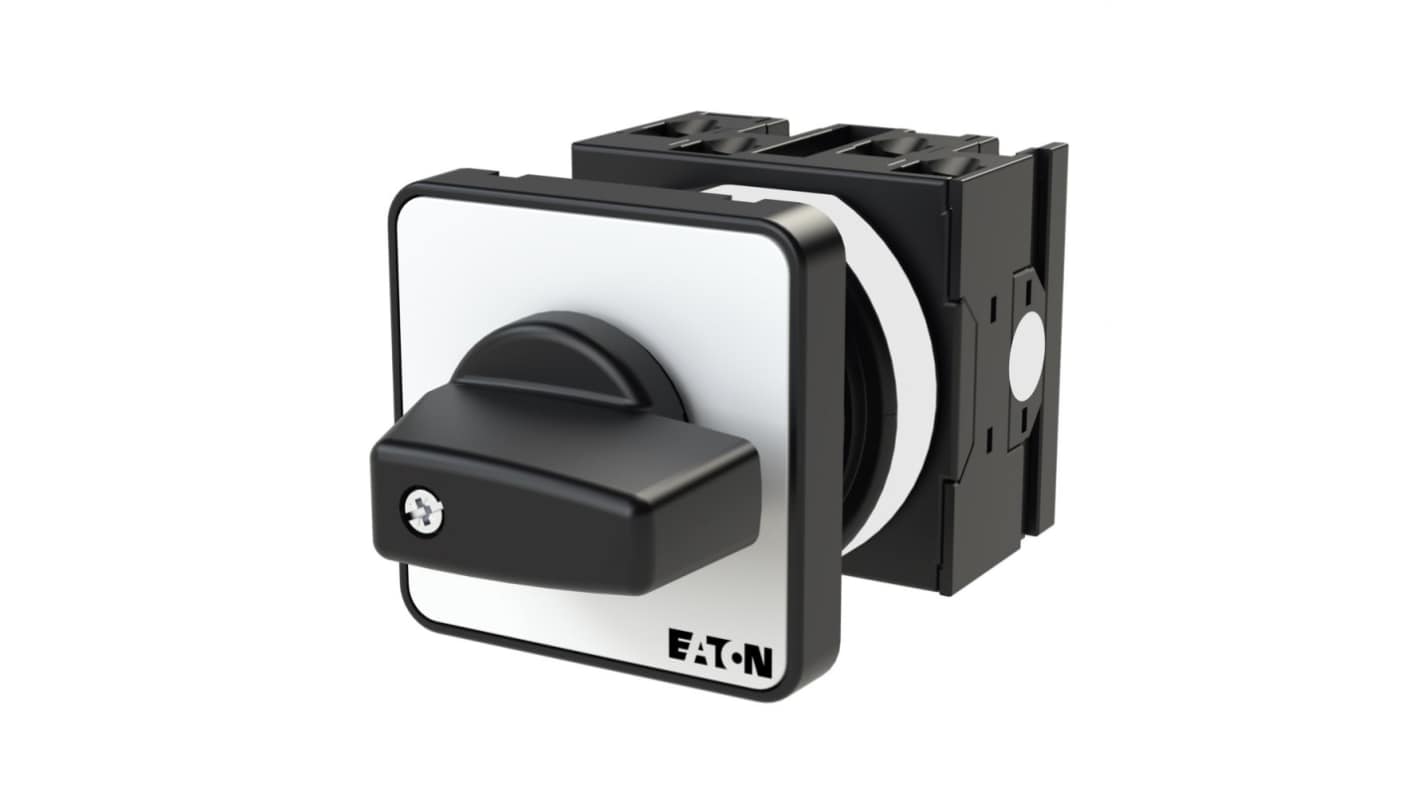

Eaton 5 Position 45 °, Toggle Actuator 20 A
- RS Stock No.:
- 269-9738
- Distrelec Article No.:
- 135-11-938
- Mfr. Part No.:
- 067327 T0-2-8242/E
- Brand:
- Eaton
Subtotal (1 unit)*
£28.93
(exc. VAT)
£34.72
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 17 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.93 |
*price indicative
- RS Stock No.:
- 269-9738
- Distrelec Article No.:
- 135-11-938
- Mfr. Part No.:
- 067327 T0-2-8242/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller Series T0 | |
| Product Type | Cam Switch | |
| Electrical Phase | 3 | |
| Number of Positions | 5 | |
| Mount Type | Flush | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Actuator Type | Toggle | |
| Contact Voltage | 60V ac | |
| Hazardous Area Certification | NO | |
| Length | 86mm | |
| Depth | 86mm | |
| Standards/Approvals | CE, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, VDE 0660, CSA | |
| Width | 48mm | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller Series T0 | ||
Product Type Cam Switch | ||
Electrical Phase 3 | ||
Number of Positions 5 | ||
Mount Type Flush | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Actuator Type Toggle | ||
Contact Voltage 60V ac | ||
Hazardous Area Certification NO | ||
Length 86mm | ||
Depth 86mm | ||
Standards/Approvals CE, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, VDE 0660, CSA | ||
Width 48mm | ||
Mechanical Life 400000Cycles | ||
Eaton Cam Switch, 20A Current, 690V AC Voltage - 067327 T0-2-8242/E
This cam switch is a robust electrical component designed for versatile control in various applications. As part of the Eaton T0 series, this model features a multi-step function with five distinct positions to optimise switching capabilities. Its compact dimensions of 86 x 48 x 48mm make it suitable for flush mounting in diverse environments, enhancing both accessibility and convenience.
Features & Benefits
• Designed for 3-phase applications to manage high electrical loads
• Toggle actuator switch provides easy and precise operation
• Rated for a maximum current of 20A to handle demanding applications
• High voltage capacity of 690V AC ensures compatibility with various systems
• Screw terminal type allows for straightforward electrical connections
• IP65 rated for excellent protection against dust and moisture
Applications
• Utilised for motor disconnections and branch circuit management
• Suited for control panels requiring robust switching solutions
• Ideal for automated systems in industrial environments
• Employed in electrical setups needing reliable performance under load
What is the maximum operating frequency for this model?
The maximum operating frequency is 1200 operations per hour, allowing efficient switching for various applications.
How does this switch handle high voltage requirements?
This model is designed to operate at a maximum voltage of 690V AC, making it suitable for high-voltage applications where reliable performance is essential.
What are the implications of using a multi-step switch?
Having multiple positions enhances flexibility in circuit control, allowing users to define specific operational states, including an off position.
Is the switch resistant to environmental factors?
With an IP65 rating, it offers high resistance to both dust and moisture, ensuring reliability even in harsh conditions.
