Eaton 2 Position 90 °, Toggle Actuator 20 A
- RS Stock No.:
- 176-9752
- Mfr. Part No.:
- 009046 T0-1-102/E-RT
- Brand:
- Eaton
Subtotal (1 unit)*
£19.97
(exc. VAT)
£23.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 17 unit(s) ready to ship
- Plus 24 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.97 |
*price indicative
- RS Stock No.:
- 176-9752
- Mfr. Part No.:
- 009046 T0-1-102/E-RT
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | T0 | |
| Electrical Phase | 1, 3 | |
| Number of Positions | 2 | |
| Mount Type | Flush | |
| Terminal Type | Screw | |
| Number of Poles | 2 | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Maximum Operating Temperature | 50°C | |
| Actuator Type | Toggle | |
| Contact Voltage | 690V ac | |
| Hazardous Area Certification | No | |
| Standards/Approvals | UL, VDE 0660, CE, IEC/EN 60204, CSA, IEC/EN 60947 | |
| Width | 81mm | |
| Length | 75mm | |
| Depth | 90mm | |
| Mechanical Life | 400000Operations | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series T0 | ||
Electrical Phase 1, 3 | ||
Number of Positions 2 | ||
Mount Type Flush | ||
Terminal Type Screw | ||
Number of Poles 2 | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Maximum Operating Temperature 50°C | ||
Actuator Type Toggle | ||
Contact Voltage 690V ac | ||
Hazardous Area Certification No | ||
Standards/Approvals UL, VDE 0660, CE, IEC/EN 60204, CSA, IEC/EN 60947 | ||
Width 81mm | ||
Length 75mm | ||
Depth 90mm | ||
Mechanical Life 400000Operations | ||
- COO (Country of Origin):
- GB

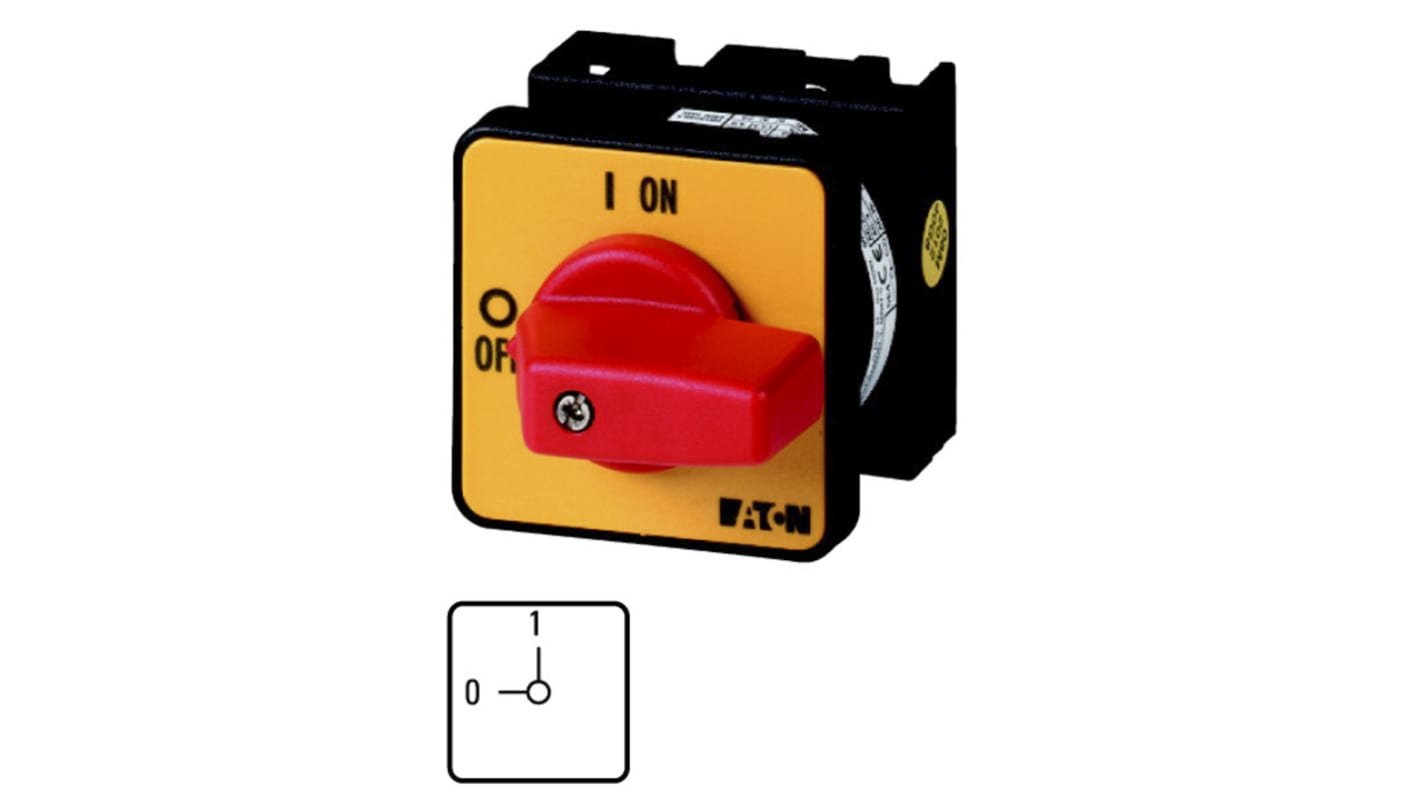

Eaton Rotary Switch, 20A Maximum Current, Flush Mounting - T0 Series - 009046 T0-1-102/E-RT
Cut power supply to selected areas of a circuit with this rotary switch from Eaton. It's used to manually disconnect industrial equipment before servicing and its red and yellow colour makes it easily identifiable as a safety switch. For longevity in harsh industrial environments, it's thermally stable and corrosion-resistant. As the unit's compatible with both single-phase and three-phase circuits, it's a versatile choice. This device is supplied as a complete unit, so comes with mounting accessories for immediate installation. Choose a switch like this for process-control engineering or automated industrial applications.
Features & Benefits
• Meets EN 61140 safety standards for protection against electric shocks
• IP65-rated front face that's dust-tight and protected against low pressure jets of water
• Thumb grip for comfortable manual actuation
• Screw terminals hold wires firmly in place for reduced maintenance
How many positions does this switch have?
For easy use, this switch has two clearly marked positions: on and off.
How long can I expect this switch to last?
This rotary switch has a mechanical lifespan of up to 6 million operations, so you can rely on it to deliver an extended service life.
Note
Eaton formerly known as Moeller
