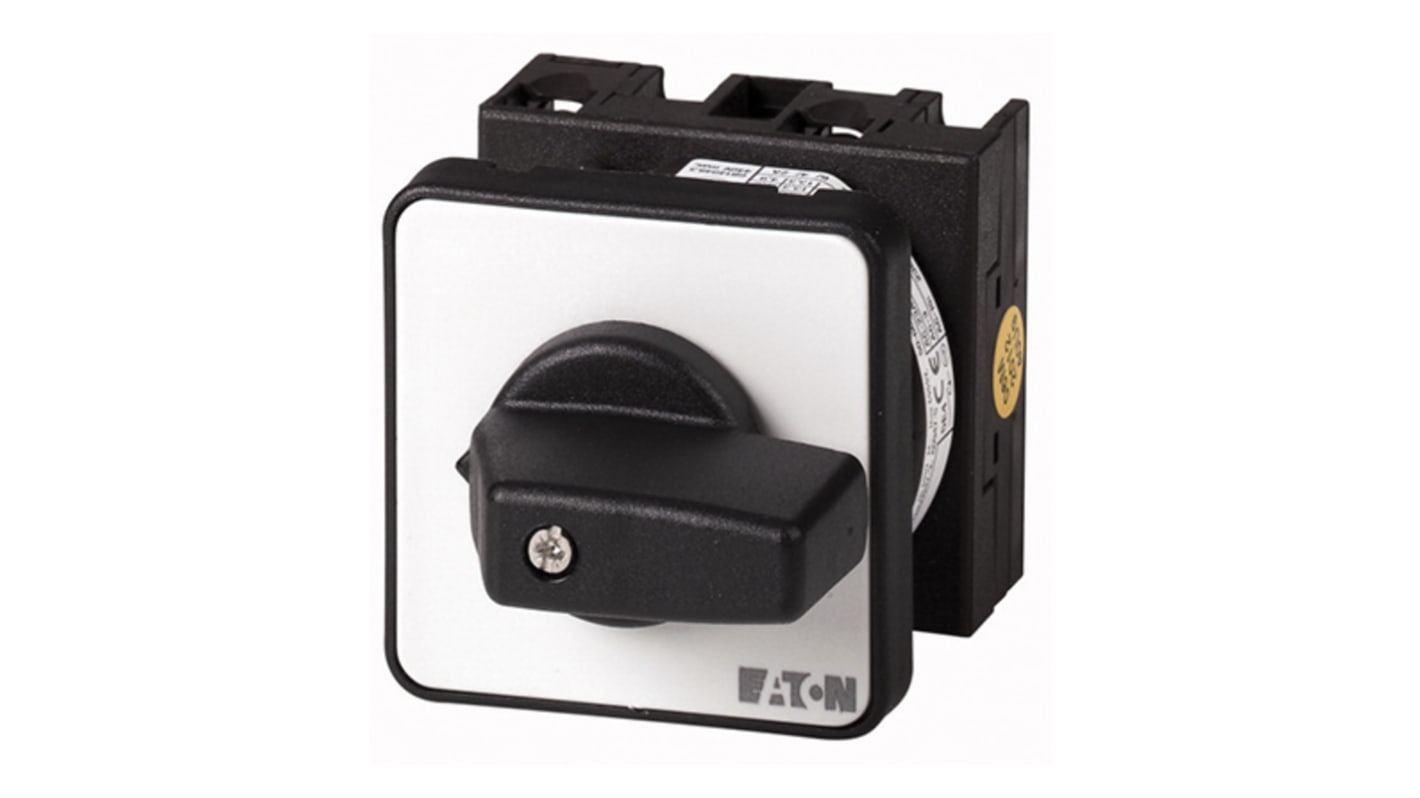

Eaton, 3P 2 Position 90° On-Off Cam Switch, 690 V, 20A, Knob Actuator
- RS Stock No.:
- 103-8470
- Mfr. Part No.:
- 207398 T0-2-8900/E
- Brand:
- Eaton
Subtotal (1 unit)*
£24.83
(exc. VAT)
£29.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6 unit(s) shipping from 27 October 2025
- Plus 7 unit(s) shipping from 27 October 2025
- Plus 14 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £24.83 |
*price indicative
- RS Stock No.:
- 103-8470
- Mfr. Part No.:
- 207398 T0-2-8900/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Pole and Throw Configuration | 3P | |
| Cam Switch Type | On-Off Cam Switch | |
| Normal State Configuration | 3NO | |
| Electrical Phase | 1, 3 | |
| Maximum Current | 20A | |
| Maximum Voltage | 690 V | |
| Number of Positions | 2 | |
| Terminal Type | Screw | |
| Angle of Throw | 90° | |
| Length | 48mm | |
| Width | 90mm | |
| Depth | 65mm | |
| Actuator Type | Knob | |
| Mounting Type | Panel Mount | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Pole and Throw Configuration 3P | ||
Cam Switch Type On-Off Cam Switch | ||
Normal State Configuration 3NO | ||
Electrical Phase 1, 3 | ||
Maximum Current 20A | ||
Maximum Voltage 690 V | ||
Number of Positions 2 | ||
Terminal Type Screw | ||
Angle of Throw 90° | ||
Length 48mm | ||
Width 90mm | ||
Depth 65mm | ||
Actuator Type Knob | ||
Mounting Type Panel Mount | ||
- COO (Country of Origin):
- GB
Eaton Cam Switch, 20A Maximum Current, 690V Maximum Voltage - 207398 T0-2-8900/E
This cam switch is designed for reliable electrical control in various applications. As an On-Off cam switch, it features a 4-pole configuration and operates efficiently at up to 20A and 690V. With dimensions of 86 x 48 x 48mm, this flush mount cam switch incorporates a short thumb grip for easy operation.
Features & Benefits
• 4-pole configuration allows efficient circuit control
• Capable of managing up to 20A current loads
• Rated for a maximum voltage of 690V for versatile applications
• Screw terminal type for straightforward connection and installation
• 90° angle of throw enhances operational efficiency
• IP65 rating provides protection in harsh environments
• Capable of managing up to 20A current loads
• Rated for a maximum voltage of 690V for versatile applications
• Screw terminal type for straightforward connection and installation
• 90° angle of throw enhances operational efficiency
• IP65 rating provides protection in harsh environments
Applications
• Ideal for controlling motor circuits and other electrical systems
• Suitable for automation and industrial machinery usage
• Commonly employed in electrical distribution panels
• Used in environments requiring robust weatherproofing
• Suitable for automation and industrial machinery usage
• Commonly employed in electrical distribution panels
• Used in environments requiring robust weatherproofing
What is the significance of the IP65 rating for this product?
The IP65 rating indicates that the switch is protected against dust ingress and low-pressure water jets, making it suitable for outdoor and demanding indoor environments.
How does the screw terminal type facilitate installation?
The screw terminal type allows for secure connections of solid or stranded cables, ensuring stability and reducing the risk of electrical faults.
What are the temperature limits within which this switch can operate?
The cam switch operates effectively between -25°C and +50°C in open environments, and from -25°C to +40°C when enclosed, accommodating various application scenarios.
Note
Eaton formerly known as Moeller
