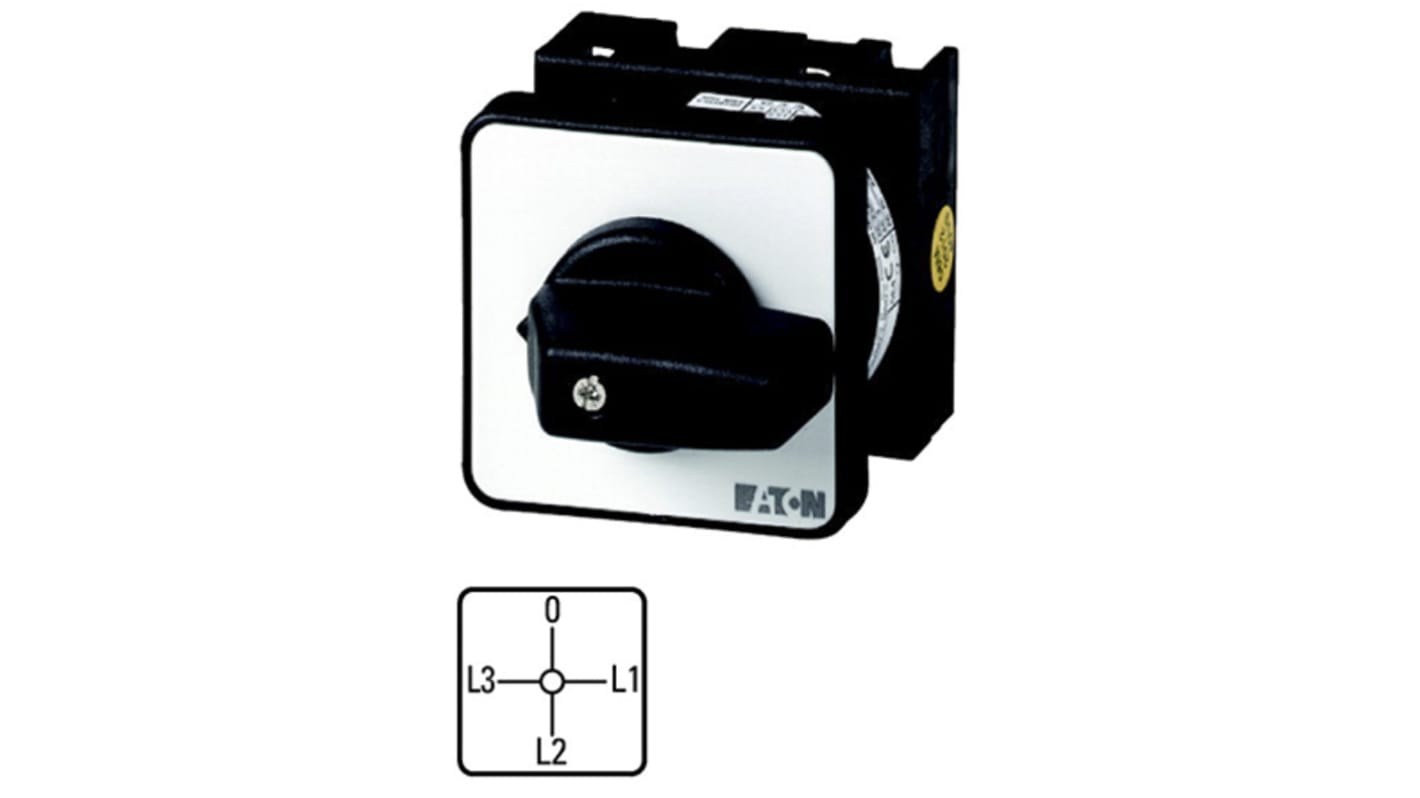

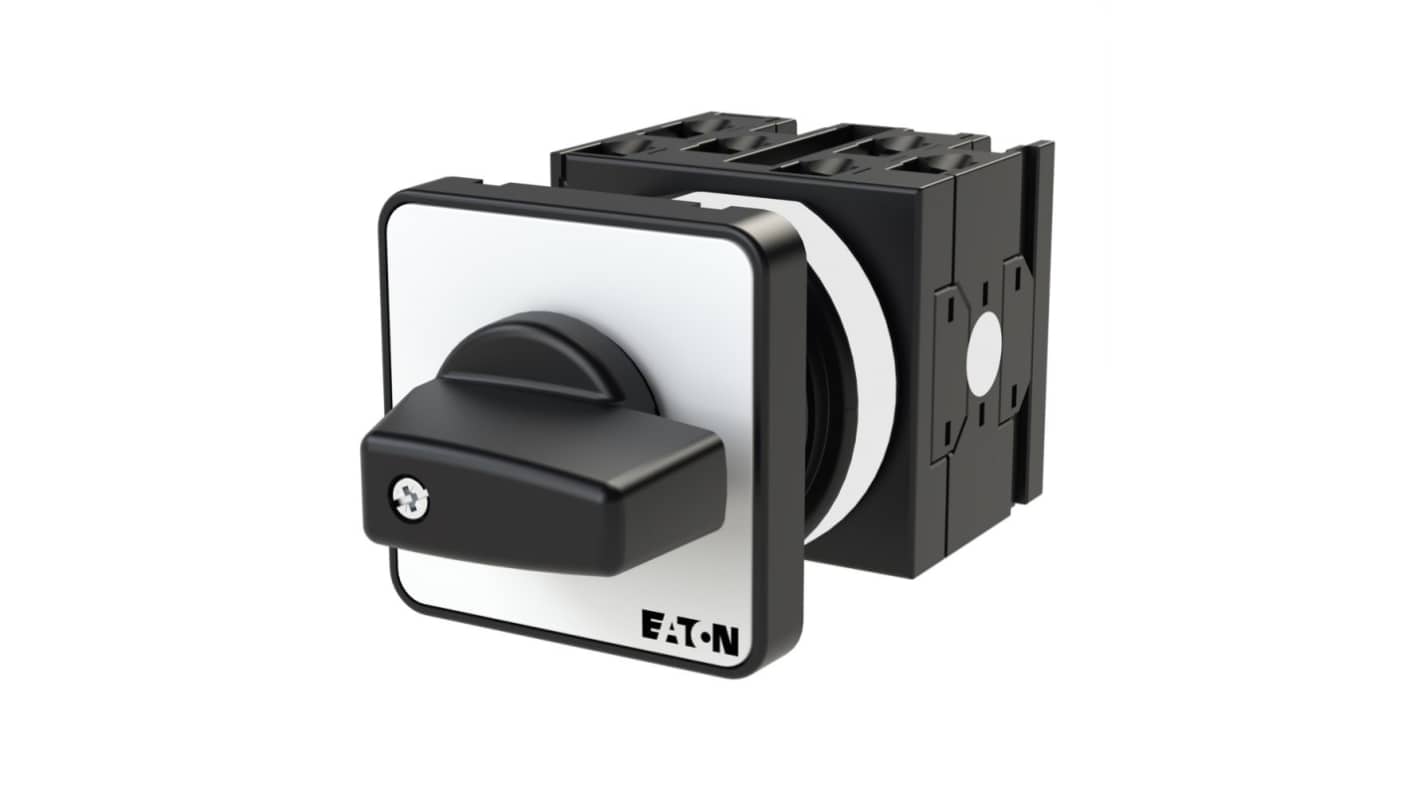

Eaton 4 Position 90° Ammeter Cam Switch, 690V ac, 20A
- RS Stock No.:
- 103-8429
- Mfr. Part No.:
- 034116 T0-3-8048/E
- Brand:
- Eaton
Subtotal (1 unit)*
£36.41
(exc. VAT)
£43.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.41 |
*price indicative
- RS Stock No.:
- 103-8429
- Mfr. Part No.:
- 034116 T0-3-8048/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Cam Switch Type | Ammeter Cam Switch | |
| Electrical Phase | 1, 3 | |
| Maximum Current | 20A | |
| Maximum Voltage | 690V ac | |
| Number of Positions | 4 | |
| Terminal Type | Screw | |
| Angle of Throw | 90° | |
| Length | 48mm | |
| Width | 100mm | |
| Depth | 48mm | |
| Dimensions | 48 x 100 x 48mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Cam Switch Type Ammeter Cam Switch | ||
Electrical Phase 1, 3 | ||
Maximum Current 20A | ||
Maximum Voltage 690V ac | ||
Number of Positions 4 | ||
Terminal Type Screw | ||
Angle of Throw 90° | ||
Length 48mm | ||
Width 100mm | ||
Depth 48mm | ||
Dimensions 48 x 100 x 48mm | ||
- COO (Country of Origin):
- GB
Eaton Cam Switch, 3P Pole Configuration, 20A Current - 034116 T0-3-8048/E
This cam switch is designed for effective control in electrical applications. With dimensions of 95 x 48 x 95mm, it features a toggle actuator and a flush mount design, ensuring seamless integration into various setups. This versatile ammeter cam switch is suitable for applications requiring reliable switching at a maximum voltage of 690V AC.
Features & Benefits
• Designed for single and three-phase configurations for diverse usage
• Rated current capacity of 20A for robust operational performance
• Four distinct positions, including Off, for versatile control options
• Screw terminal connections facilitate secure wiring and easy installation
• High durability with a lifespan of 400,000 mechanical operations
• Maintained function ensures stable position retention during operation
• Rated current capacity of 20A for robust operational performance
• Four distinct positions, including Off, for versatile control options
• Screw terminal connections facilitate secure wiring and easy installation
• High durability with a lifespan of 400,000 mechanical operations
• Maintained function ensures stable position retention during operation
Applications
• Ideal for machinery control in manufacturing environments
• Suitable for electrical panels requiring secure ammeter switching
• Used in automation systems where precise control is essential
• Effective for branch circuits as a motor disconnect switch
• Suitable for electrical panels requiring secure ammeter switching
• Used in automation systems where precise control is essential
• Effective for branch circuits as a motor disconnect switch
How does the design of the screw terminal enhance usability?
The screw terminal design provides a reliable and secure connection, allowing for quick and straightforward installation. This feature is particularly beneficial in complex systems where efficient wiring is critical.
What are the specific environmental conditions this switch can operate in?
It can function effectively in ambient temperatures ranging from -25 °C to 50 °C, making it suitable for various industrial applications, even in challenging conditions.
What are the implications of the flush mount design?
The flush mount design allows for neat integration into control panels, reducing protrusion and potential damage while maintaining a clean aesthetic in electrical installations.
How many positions does this switch offer for operation?
This switch offers four distinct positions, including a zero (Off) position, allowing users to easily navigate different operational settings.
What type of electrical compatibility does it support?
The switch supports a maximum voltage of 690V AC and can manage single-phase as well as three-phase connections, making it adaptable across different electrical systems.
Note
Eaton formerly known as Moeller
