Schneider Electric 45 ° 12 A
- RS Stock No.:
- 429-165
- Mfr. Part No.:
- K1C003QX
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£37.94
(exc. VAT)
£45.53
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £37.94 |
*price indicative
- RS Stock No.:
- 429-165
- Mfr. Part No.:
- K1C003QX
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Cam Switch | |
| Series | Harmony | |
| Electrical Phase | 1, 3 | |
| Number of Poles | 1 | |
| Terminal Type | Screw Clamp | |
| Angle of Throw | 45 ° | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 12A | |
| Maximum Operating Temperature | 55°C | |
| Length | 35mm | |
| Standards/Approvals | IEC 60947-5-1, IEC 60947-3, EN 50013 | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Cam Switch | ||
Series Harmony | ||
Electrical Phase 1, 3 | ||
Number of Poles 1 | ||
Terminal Type Screw Clamp | ||
Angle of Throw 45 ° | ||
Minimum Operating Temperature -25°C | ||
Contact Current 12A | ||
Maximum Operating Temperature 55°C | ||
Length 35mm | ||
Standards/Approvals IEC 60947-5-1, IEC 60947-3, EN 50013 | ||
Hazardous Area Certification NO | ||
Mechanical Life 1000000Cycles | ||

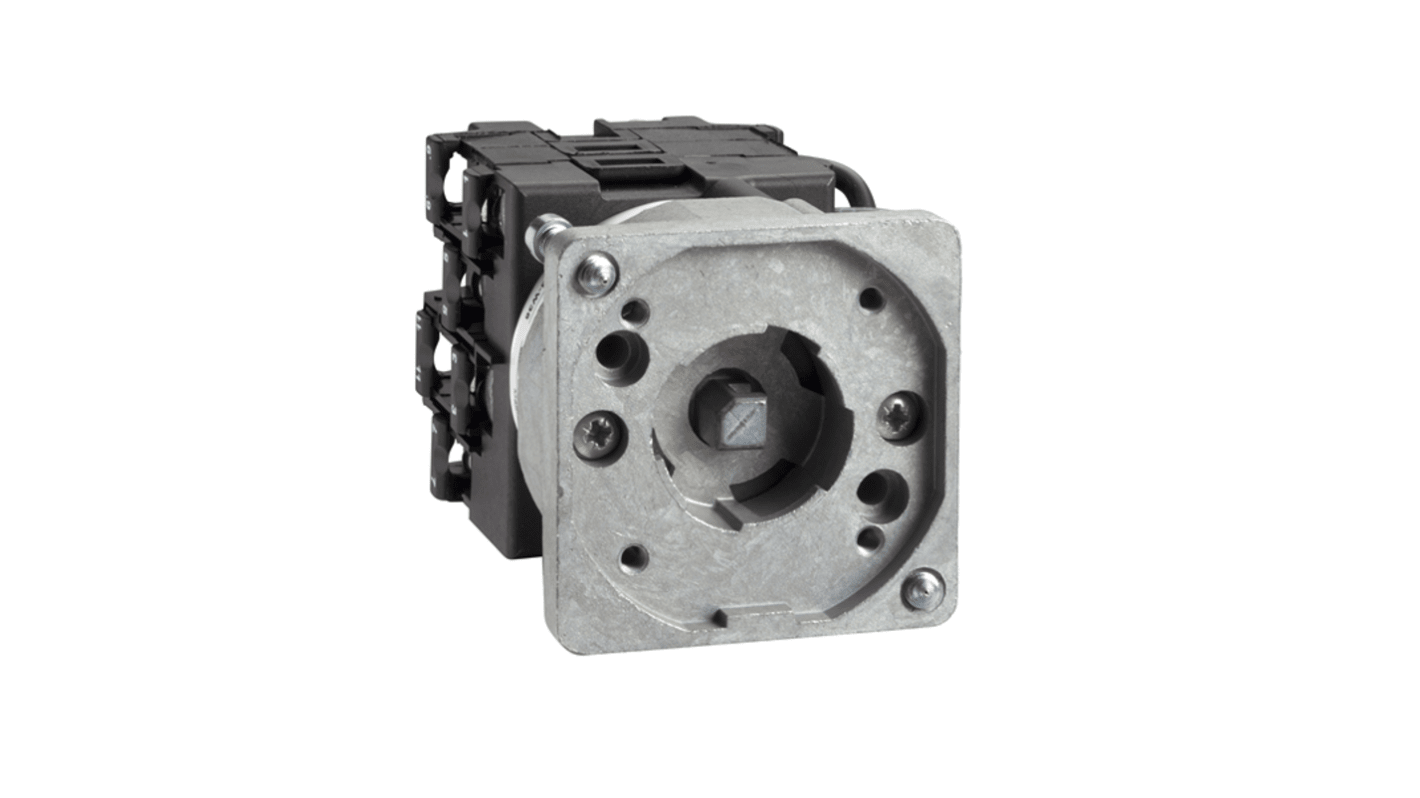

The Schneider Electric K1 cam switch body is a 1 pole stepping switch with an off position, designed for front mounting in a diameter 22mm hole. It features contact blocks with a fixing plate and a metal bezel for durability. Rated for 12A conventional free air thermal current, it offers reliable operation in industrial environments.
Mercury free
RoHS compliant
Toxic heavy metal free
