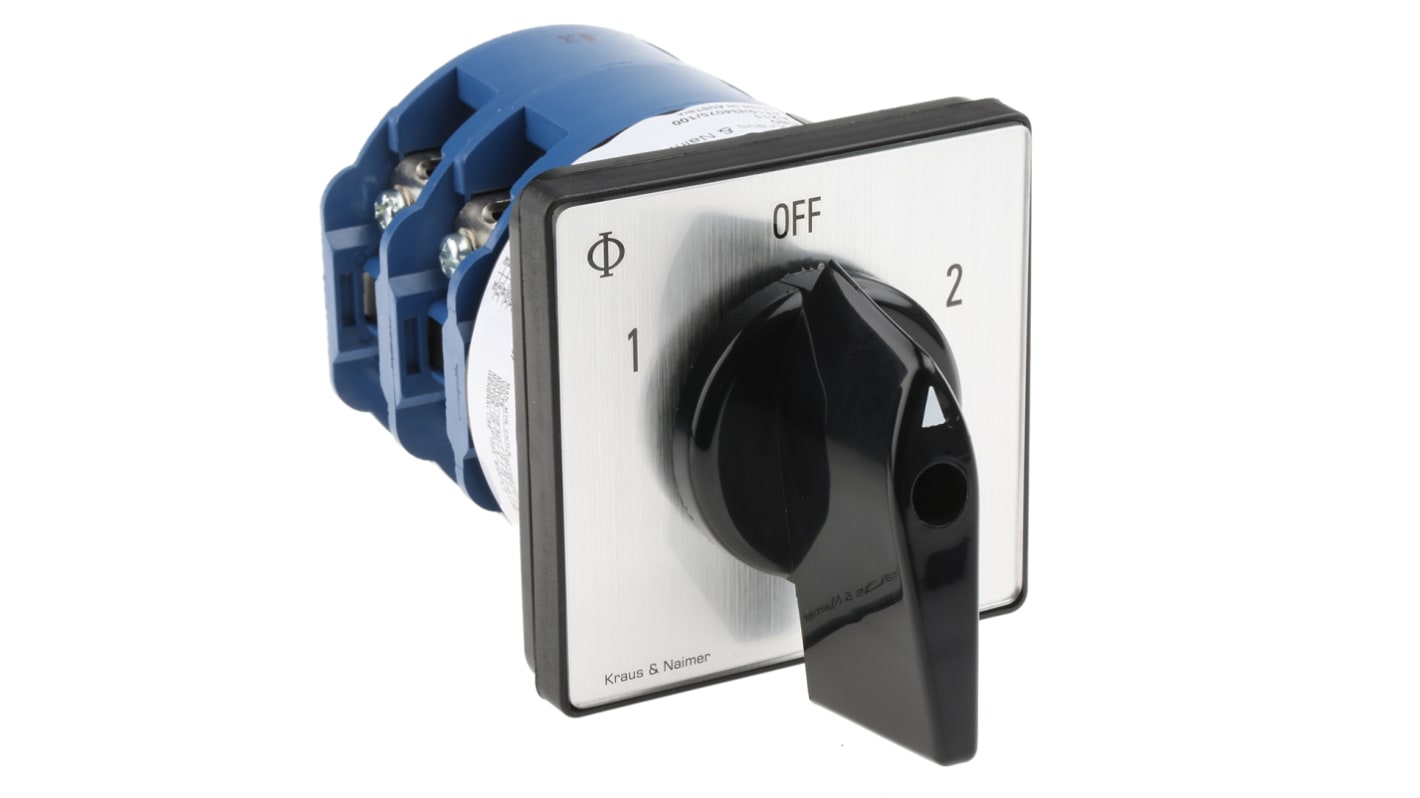

Kraus & Naimer 3 Position, Knob Actuator 115 A
- RS Stock No.:
- 400-501
- Mfr. Part No.:
- C80.A211/GBA001.E
- Brand:
- Kraus & Naimer
Subtotal (1 unit)*
£161.48
(exc. VAT)
£193.78
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £161.48 |
*price indicative
- RS Stock No.:
- 400-501
- Mfr. Part No.:
- C80.A211/GBA001.E
- Brand:
- Kraus & Naimer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kraus & Naimer | |
| Series | 855 | |
| Product Type | Rotary Switch Cam Switch | |
| Number of Positions | 3 | |
| Terminal Type | Cage Clamp | |
| Number of Poles | 2 | |
| IP Rating | IP40 | |
| Contact Current | 115A | |
| Minimum Operating Temperature | -5°C | |
| Contact Voltage | 690V | |
| Maximum Operating Temperature | 50°C | |
| Actuator Type | Knob | |
| Hazardous Area Certification | NO | |
| Length | 88mm | |
| Width | 70mm | |
| Standards/Approvals | CE, EN 61869-1, EN 61869-2, UL:E356480 | |
| Depth | 52mm | |
| Mechanical Life | 1000000Operations | |
| Select all | ||
|---|---|---|
Brand Kraus & Naimer | ||
Series 855 | ||
Product Type Rotary Switch Cam Switch | ||
Number of Positions 3 | ||
Terminal Type Cage Clamp | ||
Number of Poles 2 | ||
IP Rating IP40 | ||
Contact Current 115A | ||
Minimum Operating Temperature -5°C | ||
Contact Voltage 690V | ||
Maximum Operating Temperature 50°C | ||
Actuator Type Knob | ||
Hazardous Area Certification NO | ||
Length 88mm | ||
Width 70mm | ||
Standards/Approvals CE, EN 61869-1, EN 61869-2, UL:E356480 | ||
Depth 52mm | ||
Mechanical Life 1000000Operations | ||
- COO (Country of Origin):
- IE
Changeover (CO) Switches
Suitable for standard low voltage control/load switching and extra low voltage and electronics applications
Ring type terminal or Faston push-on cable end connectors
Switch bodies supplied with appropriate legend plate
Thermal rated current Ith IEC 947-3 (This is detailed in the ’Current Rating’ column in the price table)
Note
The current ratings shown in brackets meet the requirements of IEC 408, BS5419, and VDE 0660
