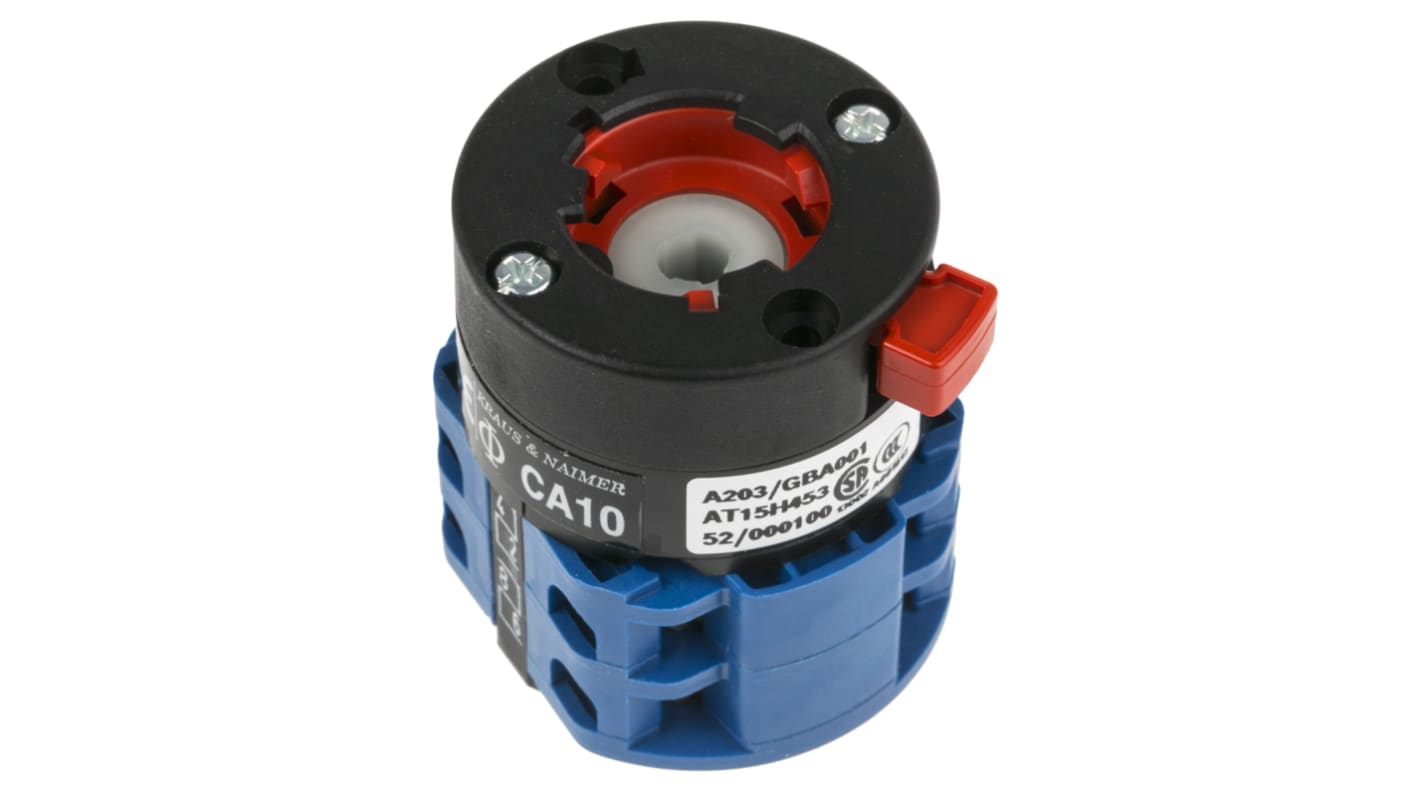

Kraus & Naimer 2 Position 60 °, Rotary Knob Actuator 20 A
- RS Stock No.:
- 323-583
- Mfr. Part No.:
- CA10.A203/GBA001.*FT
- Brand:
- Kraus & Naimer
Subtotal (1 unit)*
£16.21
(exc. VAT)
£19.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 23 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 52 unit(s) shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.21 |
*price indicative
- RS Stock No.:
- 323-583
- Mfr. Part No.:
- CA10.A203/GBA001.*FT
- Brand:
- Kraus & Naimer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kraus & Naimer | |
| Series | CA | |
| Product Type | Rotary Switch Cam Switch | |
| Mount Type | Panel | |
| Number of Positions | 2 | |
| Terminal Type | Finger-Proof Terminal | |
| Number of Poles | 18 | |
| Angle of Throw | 60 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Actuator Type | Rotary Knob | |
| Contact Voltage | 660V | |
| Maximum Operating Temperature | 55°C | |
| Length | 61.2mm | |
| Width | 48mm | |
| Standards/Approvals | CENELEC EN50005 | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 1000000Operations | |
| Select all | ||
|---|---|---|
Brand Kraus & Naimer | ||
Series CA | ||
Product Type Rotary Switch Cam Switch | ||
Mount Type Panel | ||
Number of Positions 2 | ||
Terminal Type Finger-Proof Terminal | ||
Number of Poles 18 | ||
Angle of Throw 60 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Actuator Type Rotary Knob | ||
Contact Voltage 660V | ||
Maximum Operating Temperature 55°C | ||
Length 61.2mm | ||
Width 48mm | ||
Standards/Approvals CENELEC EN50005 | ||
Hazardous Area Certification NO | ||
Mechanical Life 1000000Operations | ||
- COO (Country of Origin):
- IE
Series CA10
Each switch body is supplied with the appropriate legend plate but the switch operator must be ordered separately (see stock no. 350-0840 typically)
Rated at 20A
S0 size (48x48mm)
