Bulk discount available
Subtotal (1 unit)*
£16.13
(exc. VAT)
£19.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 475 unit(s) ready to ship
- Plus 41 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £16.13 |
5 - 9 | £15.81 |
10 - 24 | £15.49 |
25 + | £15.16 |
*price indicative
- RS Stock No.:
- 471-281
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Roller Diameter | 19mm | |
Roller Length | 12mm | |
Type | Yoke | |
Bore Size | 6mm | |
Static Load Rating | 4600N | |
Dynamic Load Rating | 4250N | |
Ring Slide & Track System Bearing Type | Eccentric | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Roller Diameter 19mm | ||
Roller Length 12mm | ||
Type Yoke | ||
Bore Size 6mm | ||
Static Load Rating 4600N | ||
Dynamic Load Rating 4250N | ||
Ring Slide & Track System Bearing Type Eccentric | ||

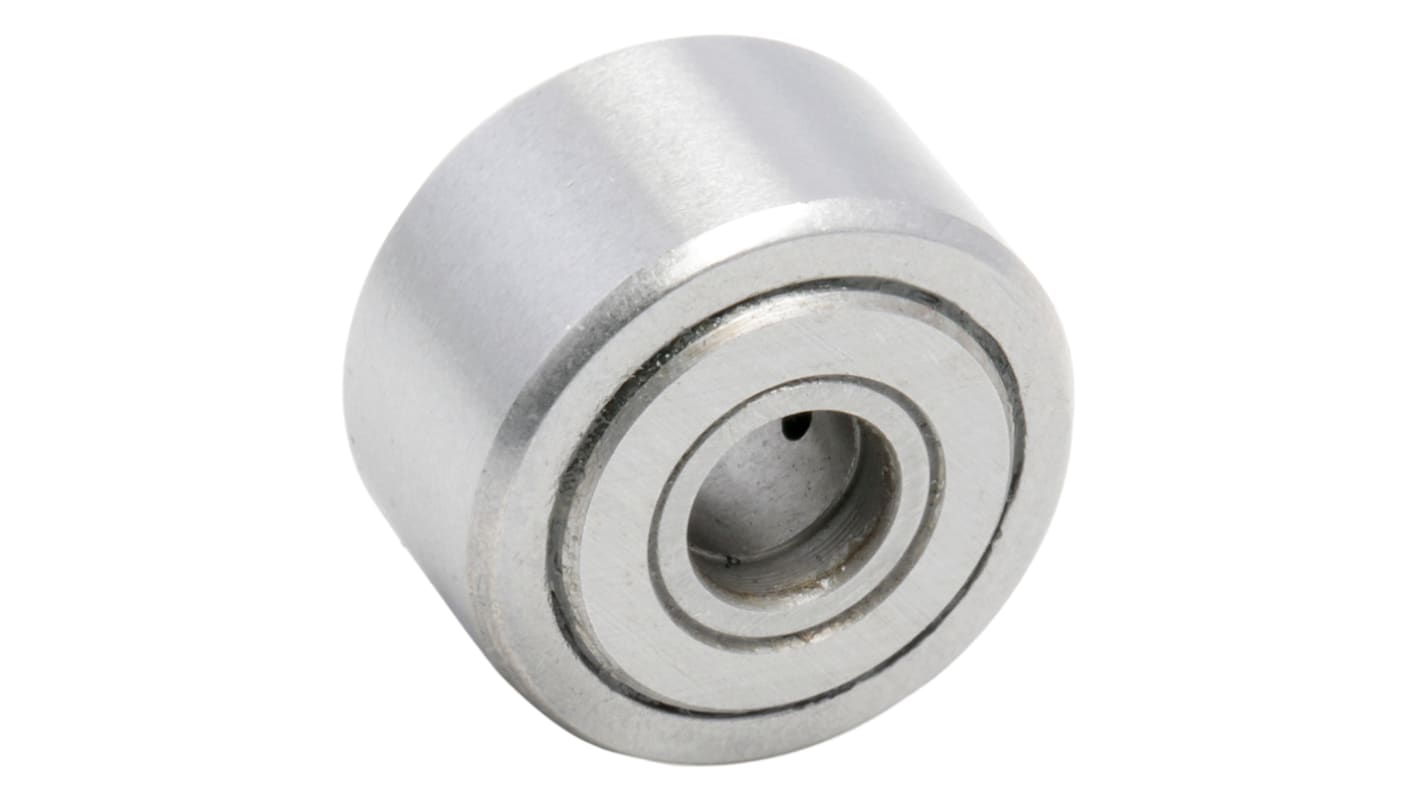

RS PRO Yoke Cam Follower 6 mm ID, 19 mm OD
This yoke cam follower from RS PRO is a specialised component that has been designed to follow cams and tracks in a wide range of motion systems. You'll typically find yoke cam followers of this kind used with weighty dynamic loads, as they help to reduce friction.
With a dynamic load rating of 4250 Newtons (N), you can rest assured that this component will cope well with larger loads. The construction of this bearing consists of a heavy outer ring and inner needle rollers that allow it to work smoothly around moving parts of machines.
This yoke cam follower can also rotate fast, with a maximum speed of 14,000 revolutions per minute (rpm) on grease and 20,000 rpm on oil, so you can use it for high-tempo operations.
With a dynamic load rating of 4250 Newtons (N), you can rest assured that this component will cope well with larger loads. The construction of this bearing consists of a heavy outer ring and inner needle rollers that allow it to work smoothly around moving parts of machines.
This yoke cam follower can also rotate fast, with a maximum speed of 14,000 revolutions per minute (rpm) on grease and 20,000 rpm on oil, so you can use it for high-tempo operations.
Features and Benefits
• Yoke cam follower
• Bore size of 6 mm
• Dynamic load rating of 4250 Newtons (N)
• Static load rating of 4600 Newtons (N)
• Eccentric ring slide and track system bearing type
• Roller diameter of 19 mm
• Roller length of 12 mm
• Bore size of 6 mm
• Dynamic load rating of 4250 Newtons (N)
• Static load rating of 4600 Newtons (N)
• Eccentric ring slide and track system bearing type
• Roller diameter of 19 mm
• Roller length of 12 mm
