Yoke Type Track Rollers NATR Series

INA from Schaeffler yoke type track rollers are single or double row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full complement needle roller or cylindrical roller sets.

The series NATR..-PP have an outside surface with the optimised INA profile.

Features and Benefits

• Lower Hertzian pressure

• Edge loading under tilting is lower

• Wear of the mating track is reduced

• Operating life of the mating track is extended

• Three-stage sealing by plastic axial plain washers

Product Application Information

Yoke type track rollers can support high radial loads and axial loads arising from slight misalignment and skewed running. They are suitable for applications such as cam gears, bed ways and conveying equipment.

Suffixes

PP - Plastic axial plain washer with formed seal lip on both sides of the yoke type track roller, giving a three-stage seal

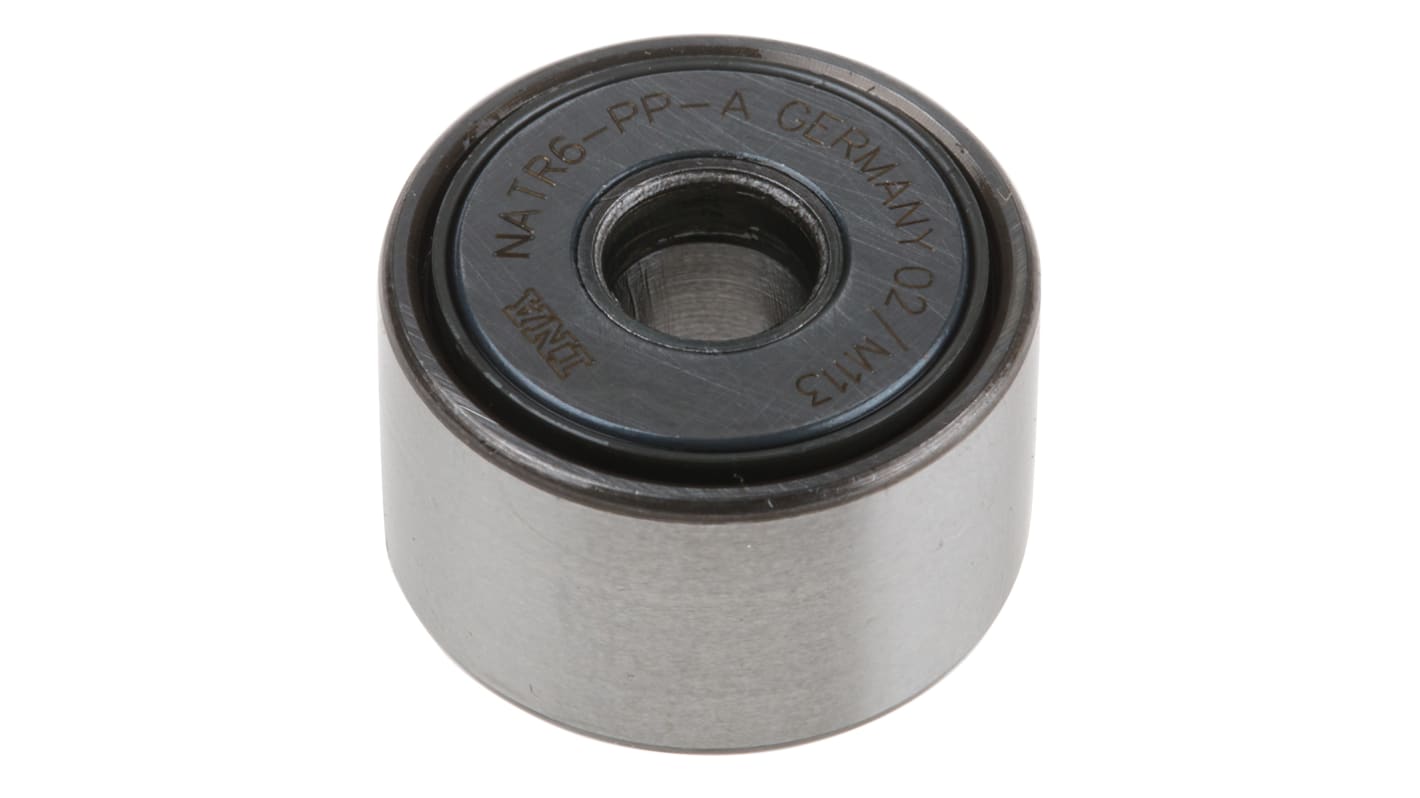

Schaeffler NATR6-PP-A Track Roller, 19mm Roller Diameter, 6mm Bore size - NATR6-PP-A

This track roller is designed for efficient performance in mechanical systems, offering a robust solution with a roller diameter of 19mm and a bore size of 6mm. Built with durable steel, this precision component is pivotal for high-load applications, ensuring seamless operation across various industrial settings.

Features & Benefits

• Yoke design enhances stability and load distribution
• Static load rating of 4000N supports heavy operations
• Dynamic load rating of 3500N offers reliable movement
• Compact dimensions allow for versatile installation options
• Suitable for use in demanding environments with high precision

Applications

• Ideal for automation systems requiring high-load support
• Used for assembly lines for efficient material handling
• Suitable for conveyors in production facilities
• Ideal for robotics for improved motion control
• Recommended for guiding rollers in linear motion systems

What are the load capacities for this roller?

The roller has a static load rating of 4000 N and a dynamic load rating of 3500 N, making it suitable for high-load applications in various industrial environments.

How does the roller's steel construction benefit its performance?

The high-quality steel construction provides durability and resistance to wear and tear, ensuring optimal performance and longevity under significant load conditions.

In what types of systems is this roller typically installed?

It is commonly used in automation systems, conveyors, and robotics, where precise movement and load-bearing capabilities are essential for efficiency.

INA

Units	Per unit
1 - 4	£29.81
5 - 9	£28.61
10 - 24	£28.02
25 +	£27.44

Select all	Attribute	Value
	Brand	INA
	Roller Diameter	19mm
	Roller Length	12mm
	Type	Yoke
	Bore Size	6mm
	Static Load Rating	4000N
	Dynamic Load Rating	3500N
	Material	Steel

	Select all
	Brand INA
	Roller Diameter 19mm
	Roller Length 12mm
	Type Yoke
	Bore Size 6mm
	Static Load Rating 4000N
	Dynamic Load Rating 3500N
	Material Steel

Yoke Track Roller NATR6-PP-A, 6mm ID, 19mm OD
