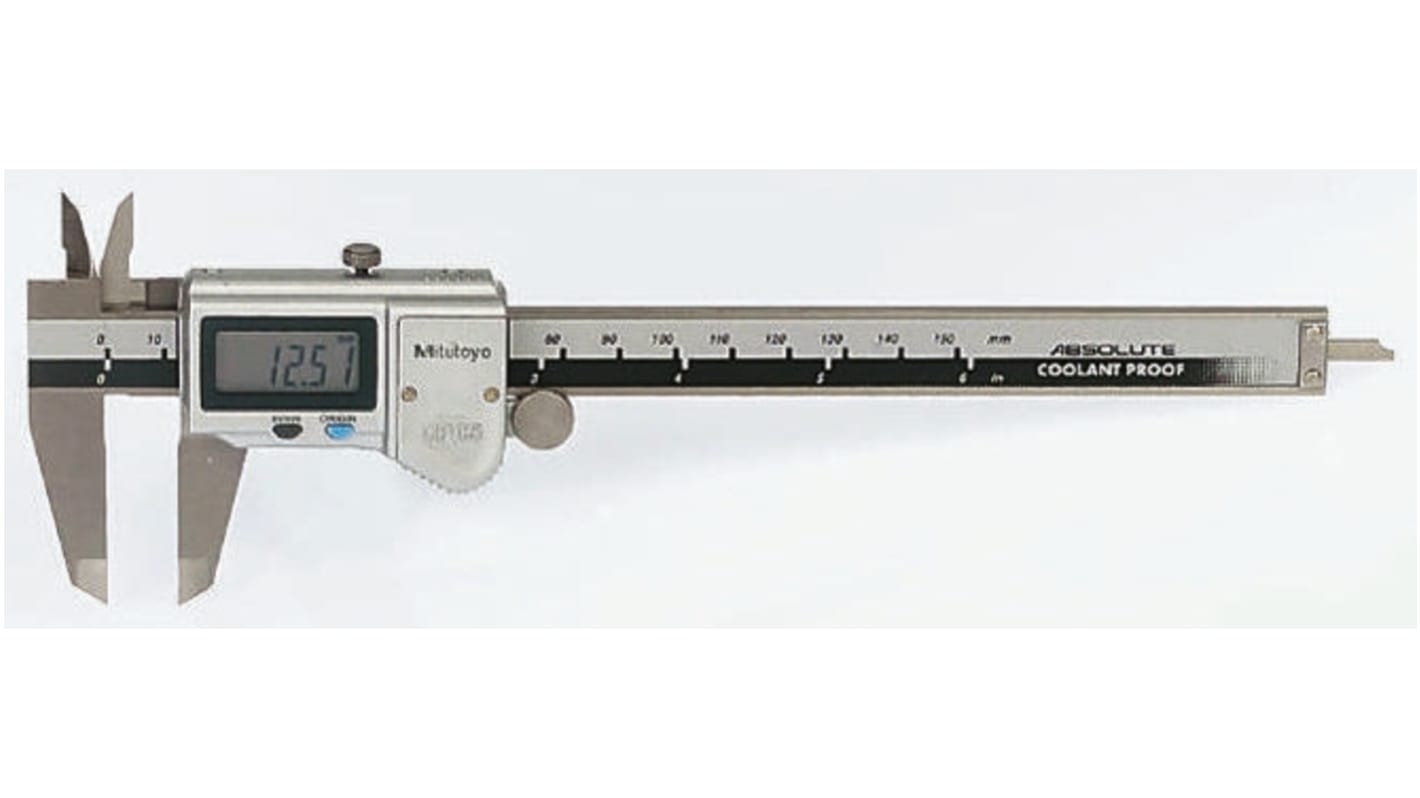

Mitutoyo 150mm, 6in Digital Caliper 0.01 mm Resolution, Imperial, Metric With UKAS Calibration
- RS Stock No.:
- 487-2455
- Mfr. Part No.:
- 500-752-20
- Brand:
- Mitutoyo
Subtotal (1 unit)*
£230.91
(exc. VAT)
£277.09
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 28 unit(s) shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £230.91 |
*price indicative
- RS Stock No.:
- 487-2455
- Mfr. Part No.:
- 500-752-20
- Brand:
- Mitutoyo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mitutoyo | |
| Caliper Type | Digital | |
| Capacity | 150mm, 6in | |
| Imperial or Metric | Imperial, Metric | |
| Display Type | Digital | |
| Calibrated | UKAS | |
| Accuracy | ±0.02 mm | |
| Resolution | 0.01 mm | |
Select all | ||
|---|---|---|
Brand Mitutoyo | ||
Caliper Type Digital | ||
Capacity 150mm, 6in | ||
Imperial or Metric Imperial, Metric | ||
Display Type Digital | ||
Calibrated UKAS | ||
Accuracy ±0.02 mm | ||
Resolution 0.01 mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
Mitutoyo-Absolute
Electronic calipers with an LCD display which will display in either ’metric/imperial (switchable)’ or ’metric only’ reading depending on model.
General Features:
Fully hardened stainless steel beam & jaws with an anti-glare, satin chrome finish
All measuring surfaces are ground and lapped for high accuracy
Capable of measuring: inside, outside, depth and step
Storage Temp: -10°C to +60°C
Operating Temp: 0°C to +40°C
Capable of measuring: inside, outside, depth and step
Storage Temp: -10°C to +60°C
Operating Temp: 0°C to +40°C
Electronic Features:
ON/OFF - Switches unit on, display indicates distance of jaws from pre-set origin point
ABS - Absolute feature re-sets the ’reference’ point of measurement of the instrument jaws
in./mm - Selects imperial or metric display
Origin - Pre-sets the zero point of the instrument. This point is memorised even if the unit is switched off
ABS - Absolute feature re-sets the ’reference’ point of measurement of the instrument jaws
in./mm - Selects imperial or metric display
Origin - Pre-sets the zero point of the instrument. This point is memorised even if the unit is switched off
Note
Imperial/metric versions have thumbwheel where metric does not.
SPC output versions - A connection port continually transmits data (MITUTOYO FORMAT). 1m/2m leads are available separately, see this section
SPC output versions - A connection port continually transmits data (MITUTOYO FORMAT). 1m/2m leads are available separately, see this section
Supplied with
SR44 Battery
Mitutoyo Precision Caliper
The Mitutoyo 0 to 6in range precision calliper is an industry protection standard-compliant device used in length measuring systems. It is ideal for environments where large amounts of cutting oils are being sprayed from various directions (where only vernier callipers could be used before). This device can withstand temporary immersion in water without suffering any damage. Also, it is completely dustproof and coolant proof. It comes with an ABS (absolute) measurement function that automatically starts the absolute-mode measurement without any zero-setting after it is switched on. The calliper also has a data output port and water-resistant connection cable to export data.
Note:
Imperial/metric versions have thumbwheel where metric does not.
SPC output versions -A connection port continually transmits data (MITUTOYO FORMAT). 1m/2m leads are available separately, see this section
Supplied with SR44 Battery
Note:
Imperial/metric versions have thumbwheel where metric does not.
SPC output versions -A connection port continually transmits data (MITUTOYO FORMAT). 1m/2m leads are available separately, see this section
Supplied with SR44 Battery
Features and Benefits
Fully hardened stainless steel beam and jaws
Anti-glare satin chrome finish
All measuring surfaces are ground and lapped for high accuracy
Auto power on/off function
Resolution of 0.01mm
Accuracy of ±0.02mm
Zero point of the instrument is pre-set and memorised even if the unit is switched off
No need to wipe off water and oil from the main scale during use
All measuring surfaces are ground and lapped for high accuracy
Capable of measuring: inside, outside, depth and step
Anti-glare satin chrome finish
All measuring surfaces are ground and lapped for high accuracy
Auto power on/off function
Resolution of 0.01mm
Accuracy of ±0.02mm
Zero point of the instrument is pre-set and memorised even if the unit is switched off
No need to wipe off water and oil from the main scale during use
All measuring surfaces are ground and lapped for high accuracy
Capable of measuring: inside, outside, depth and step
Applications
Mechanical engineering
Aerospace industries
Steel and other metalwork industry
Aerospace industries
Steel and other metalwork industry
