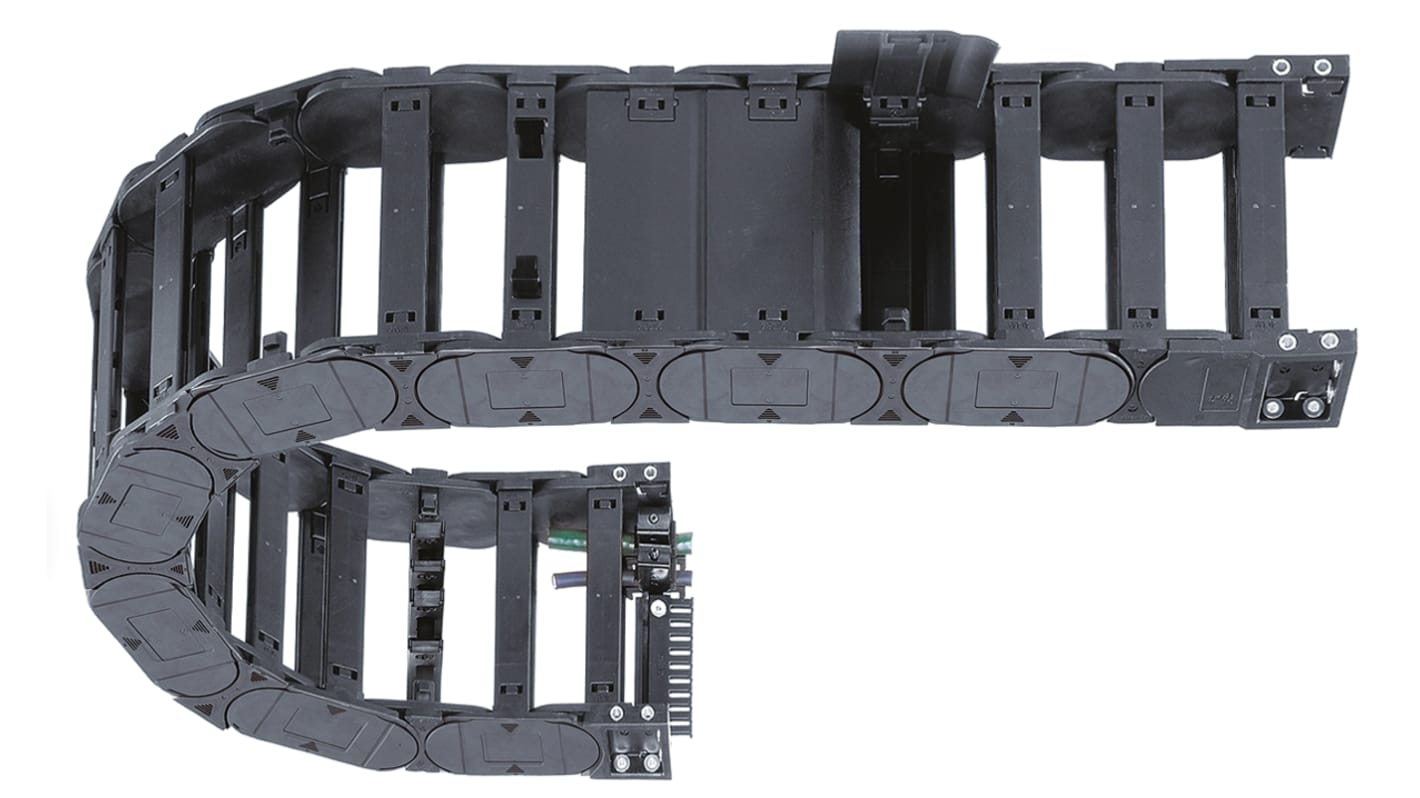

Igus E4.42, e-chain Black Cable Chain - Flexible Slot, W176 mm x D64mm, L1m, 150 mm Min. Bend Radius, Igumid G
- RS Stock No.:
- 814-2042
- Mfr. Part No.:
- E4.42.15.150.0
- Brand:
- Igus
Subtotal (1 unit)*
£165.43
(exc. VAT)
£198.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £165.43 |
*price indicative
- RS Stock No.:
- 814-2042
- Mfr. Part No.:
- E4.42.15.150.0
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Width | 176 mm | |
| Depth | 64mm | |
| Trunking/Chain Type | Cable Chain | |
| Colour | Black | |
| Material | Igumid G | |
| Length | 1m | |
| Slot Type | Flexible | |
| Minimum Bend Radius | 150 mm | |
| Series | E4.42, e-chain | |
Select all | ||
|---|---|---|
Brand Igus | ||
Width 176 mm | ||
Depth 64mm | ||
Trunking/Chain Type Cable Chain | ||
Colour Black | ||
Material Igumid G | ||
Length 1m | ||
Slot Type Flexible | ||
Minimum Bend Radius 150 mm | ||
Series E4.42, e-chain | ||
- COO (Country of Origin):
- DE
Energy Chain® - E4/1 (42 Series)
The igus E4-1 system combines all the benefits of its three predecessors in the E4 range. E4-1 cable carriers offer greater stability with the same or smaller dimensions while almost all the accessories and mounting brackets are the same. With igus® E4-1 cable chains, the service life of your application can be increased and costs significantly reduced.
Smooth, cable friendly interior surfaces
Low noise operation thanks to integrated brake on the radial stop dogs
Sound dampers available as an additional noise-reducing feature
Suitable for a wide range of applications
Numerous interior separation options available
Widths up to 2000 mm through extension links
To open on both sides
Max. travel distance: Over 200 m
Low noise operation thanks to integrated brake on the radial stop dogs
Sound dampers available as an additional noise-reducing feature
Suitable for a wide range of applications
Numerous interior separation options available
Widths up to 2000 mm through extension links
To open on both sides
Max. travel distance: Over 200 m
Energy Chain® - E4/0 (42 Series)
