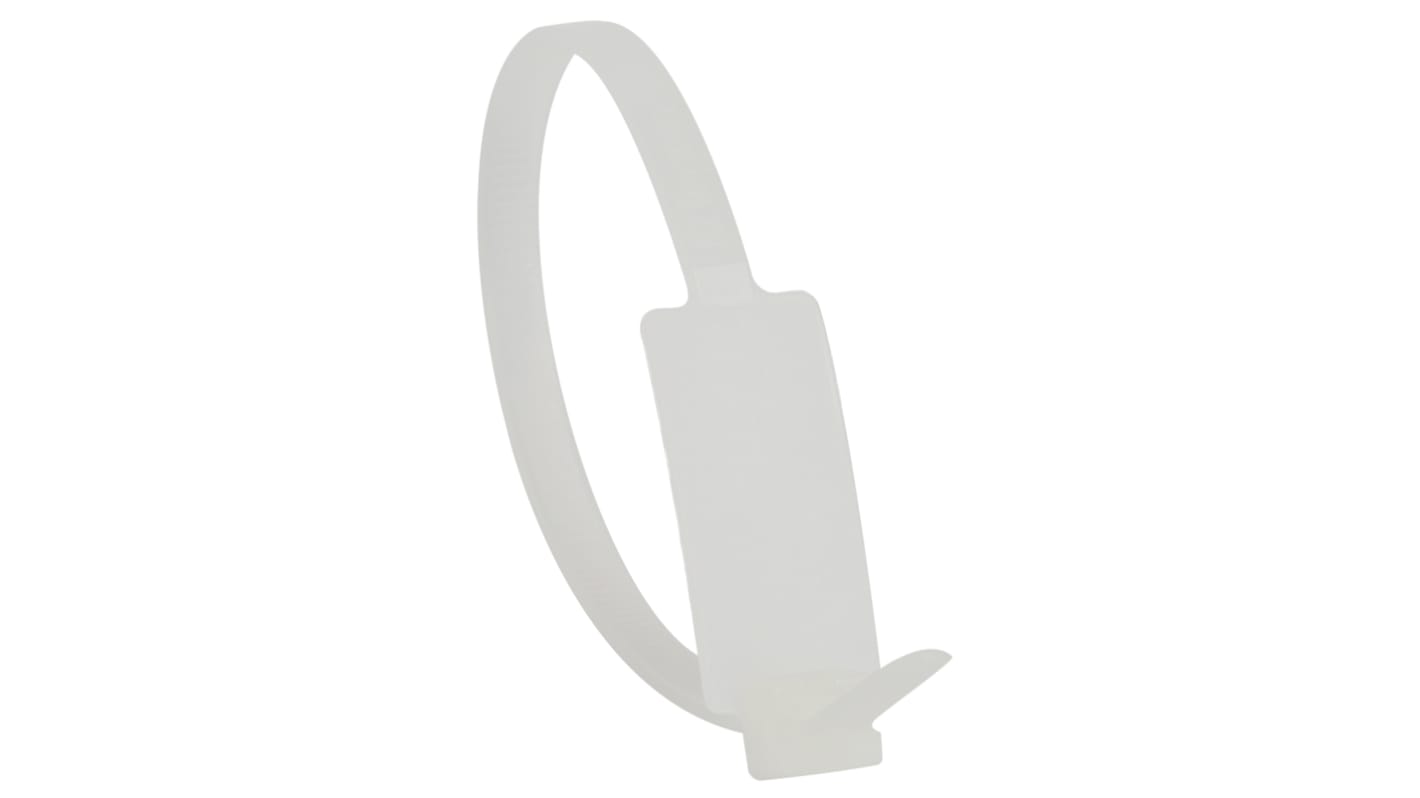

Legrand Cable Tie, Self-Lock Head, 180 mm x 4.6mm, Natural Polyamide
- RS Stock No.:
- 136-2907
- Mfr. Part No.:
- 0 320 63
- Brand:
- Legrand
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 100 units)*
£49.76
(exc. VAT)
£59.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 14 | £49.76 | £0.498 |
| 15 - 49 | £47.27 | £0.473 |
| 50 + | £45.76 | £0.458 |
*price indicative
- RS Stock No.:
- 136-2907
- Mfr. Part No.:
- 0 320 63
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legrand | |
| Product Type | Cable Tie | |
| Length | 180mm | |
| Width | 4.6mm | |
| Colour | Natural | |
| Material | Polyamide | |
| Sub Type | Self-Lock Head | |
| UV Resistant | No | |
| Fire Behaviour | Fire Resistant | |
| Tensile Strength | 22daN | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Series | Colring | |
| Maximum Bundle Diameter | 46mm | |
| Standards/Approvals | EN 62275 Type1 (NFC 68-146), UL 1565, SAE-AS 33671 | |
| Select all | ||
|---|---|---|
Brand Legrand | ||
Product Type Cable Tie | ||
Length 180mm | ||
Width 4.6mm | ||
Colour Natural | ||
Material Polyamide | ||
Sub Type Self-Lock Head | ||
UV Resistant No | ||
Fire Behaviour Fire Resistant | ||
Tensile Strength 22daN | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Series Colring | ||
Maximum Bundle Diameter 46mm | ||
Standards/Approvals EN 62275 Type1 (NFC 68-146), UL 1565, SAE-AS 33671 | ||
RoHS Status: Exempt
Colring™ equipment ties
Ties made from colourless or black 6/6 polyamide with internal teeth.
Resistance to external agents:
Good resistance to base solutions, oils, greases, petroleum products, chlorinated solvents.
Limited resistance to acids.
Not resistant to phenol.
Humidity absorption: 1.2%.
Corrosiveness of smoke: NF C 20-453 < 5 %.
Halogen-free.
Flame-retardant: UL 94 V 2
Approved to UL 1565.
Conformity to SAE ‒ AS 336 71 (except for items marked (1) in the table below).
Standards
EN 62275 type1 (NFC 68-146), UL 1565, SAE-AS 33671
