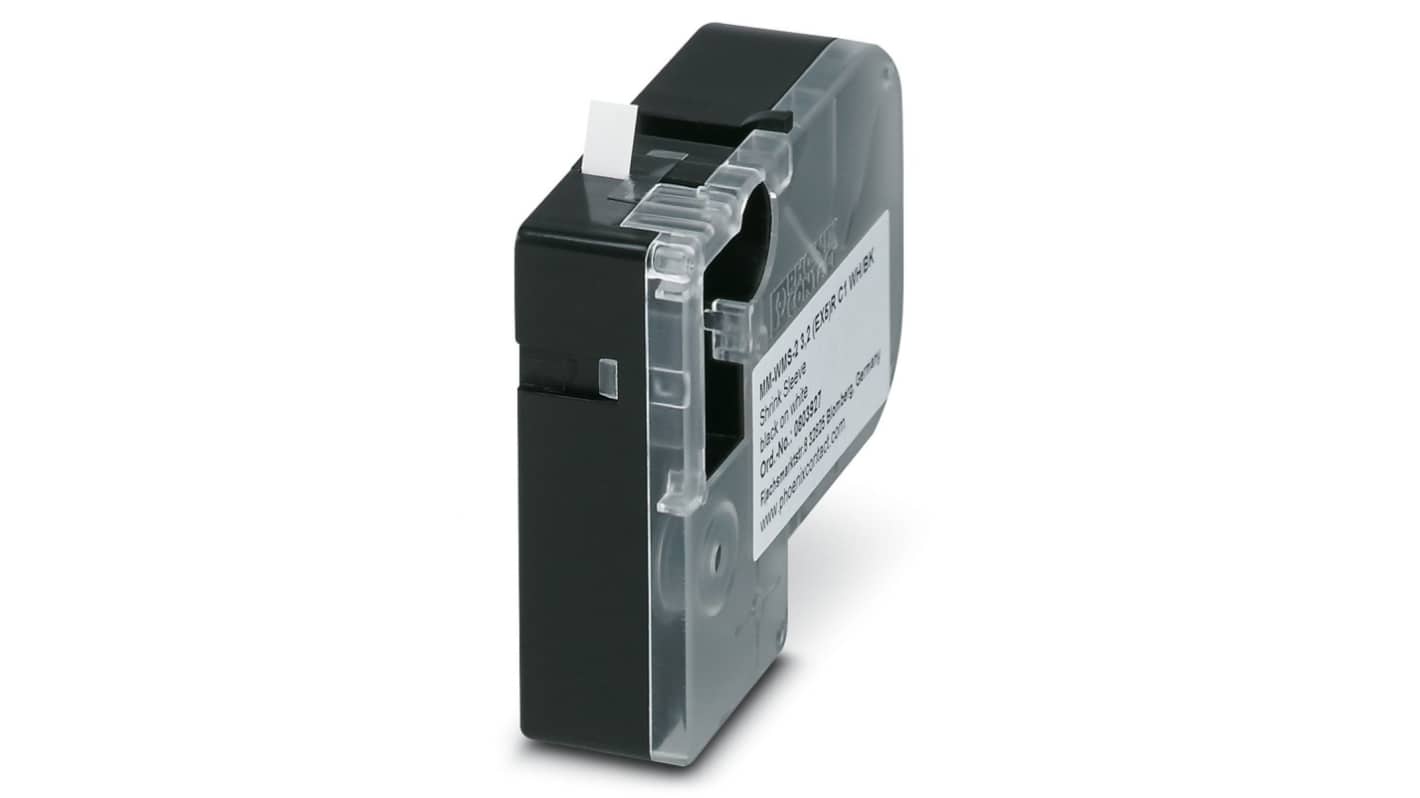

Phoenix Contact MM-WMS Heat Shrink Cable Marker, White, 1 → 3.2mm Cable, for , for THERMOMARK, 0803923
- RS Stock No.:
- 137-2285
- Distrelec Article No.:
- 304-21-913
- Mfr. Part No.:
- 0803923
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£55.91
(exc. VAT)
£67.09
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £55.91 |
*price indicative
- RS Stock No.:
- 137-2285
- Distrelec Article No.:
- 304-21-913
- Mfr. Part No.:
- 0803923
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Affixing Method | Heat Shrink | |
Series | MM-WMS | |
Minimum Cable Diameter | 1mm | |
Maximum Cable Diameter | 3.2mm | |
Cable Diameter Range | 1 → 3.2mm | |
Colour | White | |
Length | 1.8m | |
Width | 5 mm | |
Quantity | 1 | |
Printable | Yes | |
Material | Polyolefin | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +125°C | |
For Use With | THERMOMARK GO, THERMOMARK GO.K | |
Standards Met | cULus | |
Marker Colours | White | |
Kit or Accessory Type | Cable Marker | |
Operating Temperature Range | -55 → +125 °C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Affixing Method Heat Shrink | ||
Series MM-WMS | ||
Minimum Cable Diameter 1mm | ||
Maximum Cable Diameter 3.2mm | ||
Cable Diameter Range 1 → 3.2mm | ||
Colour White | ||
Length 1.8m | ||
Width 5 mm | ||
Quantity 1 | ||
Printable Yes | ||
Material Polyolefin | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
For Use With THERMOMARK GO, THERMOMARK GO.K | ||
Standards Met cULus | ||
Marker Colours White | ||
Kit or Accessory Type Cable Marker | ||
Operating Temperature Range -55 → +125 °C | ||
- COO (Country of Origin):
- CN
THERMOFOX Conductor Marking Labels
The MM-WML and MM-EMT are conductor marking labels for use with the THERMOFOX hand held printer. The MM-WML can be used for retroactive conductor marking. The MM-EMT is suitable for assembling the plastic cable marker KMK.
Features and Benefits
• White with black imprint
• Free from silicone, halogen, and cadmium
• RoHS compliant
• Wipe resistance DIN EN 61010-1 (VDE 0411-1)
• Free from silicone, halogen, and cadmium
• RoHS compliant
• Wipe resistance DIN EN 61010-1 (VDE 0411-1)
MM-WML Self-adhesive Labels
• Vinyl polymer
• -40 °C to +80 °C
• 6.5 m continuous material
• Acrylic adhesive
• -40 °C to +80 °C
• 6.5 m continuous material
• Acrylic adhesive
MM-EMT Non-adhesive Labels
• Polyester
• -5 °C to +49 °C
• 5.5 m continuous material
• -5 °C to +49 °C
• 5.5 m continuous material
Phoenix Contact Cable Marker, 1.8m Length, 5mm Width - MM-WMS 3,2 (EX5)R C1 WH/BK - 803923
Looking for a way to organise your cables and other equipment? Choose this cable marker from Phoenix Contact to put your stamp on things. It can be used with wiring that ranges between 1 and 3.2mm in diameter, making it a versatile option. The heat shrink fixing method is a quick and easy way to label your components, meaning you're not left stuck using adhesives.
It's easy to create tags of lengths specific to your tasks, as the device supports a continuous flow that terminates when you decide. To get marking, simply thread your desired item through the unit's sleeve. The labels are highly-visible and legible in all settings thanks to their white background and black characters. If you want a complete system, this product pairs seamlessly with the THERMOMARK GO handheld label printer kit (237-6644) from Phoenix Contact.
It's easy to create tags of lengths specific to your tasks, as the device supports a continuous flow that terminates when you decide. To get marking, simply thread your desired item through the unit's sleeve. The labels are highly-visible and legible in all settings thanks to their white background and black characters. If you want a complete system, this product pairs seamlessly with the THERMOMARK GO handheld label printer kit (237-6644) from Phoenix Contact.
Features & Benefits
• Free of silicone, cadmium and halogen, so is environmentally friendly and minimally flammable
• Polyolefin material is corrosion-resistant, lightweight and offers high-tensile strength for prolonged performance
• Tested for UV resistance for a longer service life, even in exposed positions
• Operational temperature range of -55°C to +125°C, so it's ideal for industrial applications
• Polyolefin material is corrosion-resistant, lightweight and offers high-tensile strength for prolonged performance
• Tested for UV resistance for a longer service life, even in exposed positions
• Operational temperature range of -55°C to +125°C, so it's ideal for industrial applications
