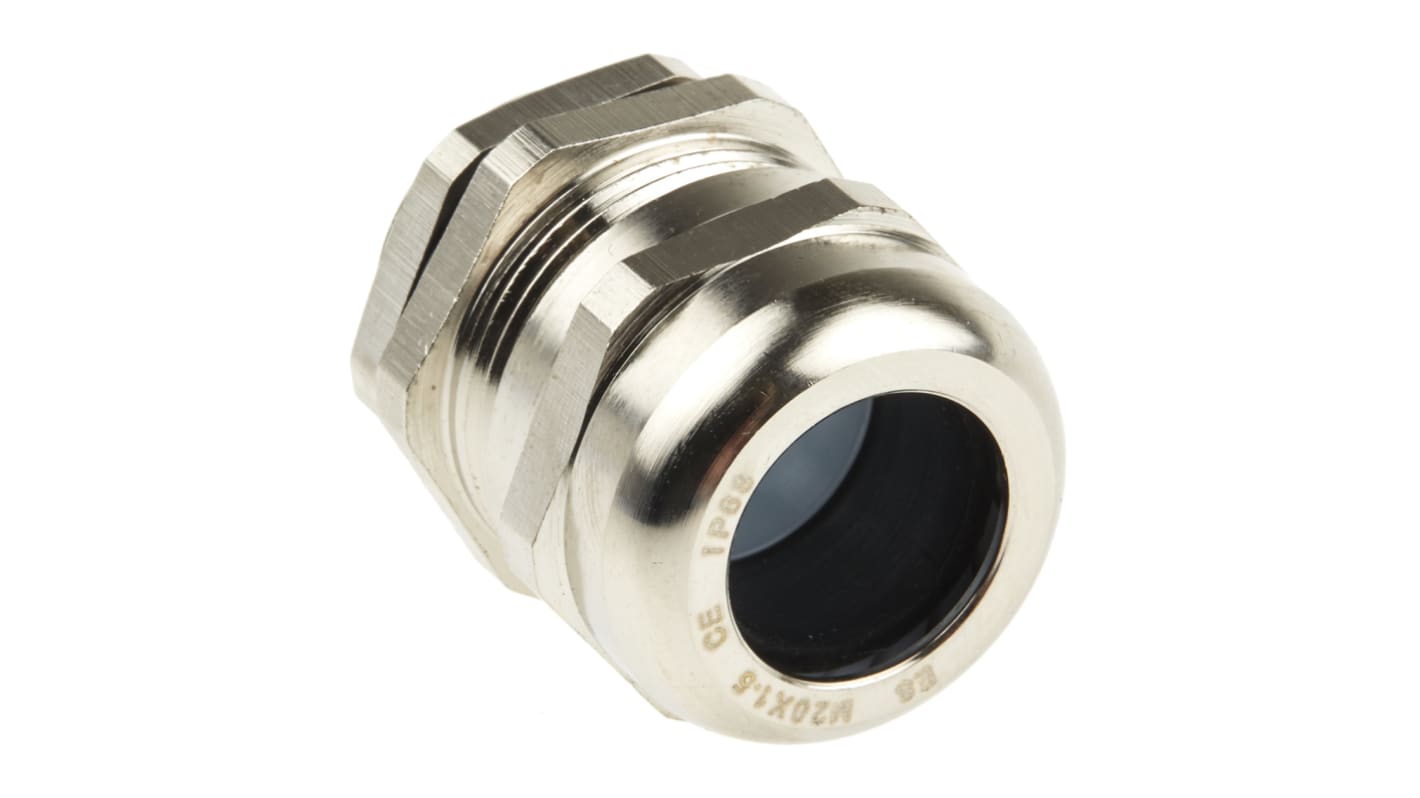

RS PRO M20 Cable Gland With Locknut, Nickel Plated Brass, IP68

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro Brass Cable Gland - IP68

From RS Pro, a range of brass cable glands offering excellent strain relief and cable protection. Cable glands allow you to mount a cable into a pre-drilled hole. Commonly used within construction and by electrical engineers, cable glands are simple and easy to use. Each gland is rated as IP68, ensuring the level of cable protection is incredibly resilient to the outdoors and other harsh environments, such as oil rigs and ocean shipping. All models are highly reliable and excellent quality.

Features and Benefits

• Various threads are available
• Completely sealed against dust
• Excellent water resistance
• Locknut and seal supplied
• High quality nickel plated brass

What is a cable gland?

Cable glands are a standard cable entry device. They are handy accessories for ensuring a tight seal and complete protection from the area which the cable is feeding into. They work by being screwed into an already threaded hole or socket. The wire, still sealing the wall or enclosure, will then enter through the carefully sized hole. These particular brass cable glands are rated at IP68, which provide excellent use within indoor or outdoor environments.

What are cable glands used for?

There are various types of applications which would benefit from, or require a cable gland. Used by electrical engineers who need to run cables and wires through to an area which will need to be enclosed or sealed. There are a variety of sizes available for applications that require it. As an example, some of the uses of cable glands would be:

• Machinery with delicate internals
• Telecommunications
• Flow meters
• Underwater power generators

What kind of protection is available on these glands?

Rated at IP68, the level of protection provided by these glands are valuable to almost any environment. With a water tight seal and excellent durability, certain possible problems like dust or water will become non-issues to any application. Keeping the cable secure and protected from various outcomes.

Extra Information

This particular gland has a thread size of M20. Please ensure the cut out size has the correct size to complete installation.

Specifications
Attribute Value
Thread Size M20
Material Nickel Plated Brass
Maximum Cable Diameter 14mm
Minimum Cable Diameter 8mm
Colour Metallic
IP Rating IP68
Minimum Operating Temperature -40°C
Maximum Operating Temperature +100°C
Standards Met RoHS Compliant
Locknut Included Yes
3970 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 3.722
(exc. VAT)
£ 4.466
(inc. VAT)
Units
Per unit
Per Pack*
5 - 45
£3.722
£18.61
50 - 95
£3.574
£17.87
100 - 145
£3.462
£17.31
150 - 195
£3.276
£16.38
200 +
£3.202
£16.01
*price indicative
