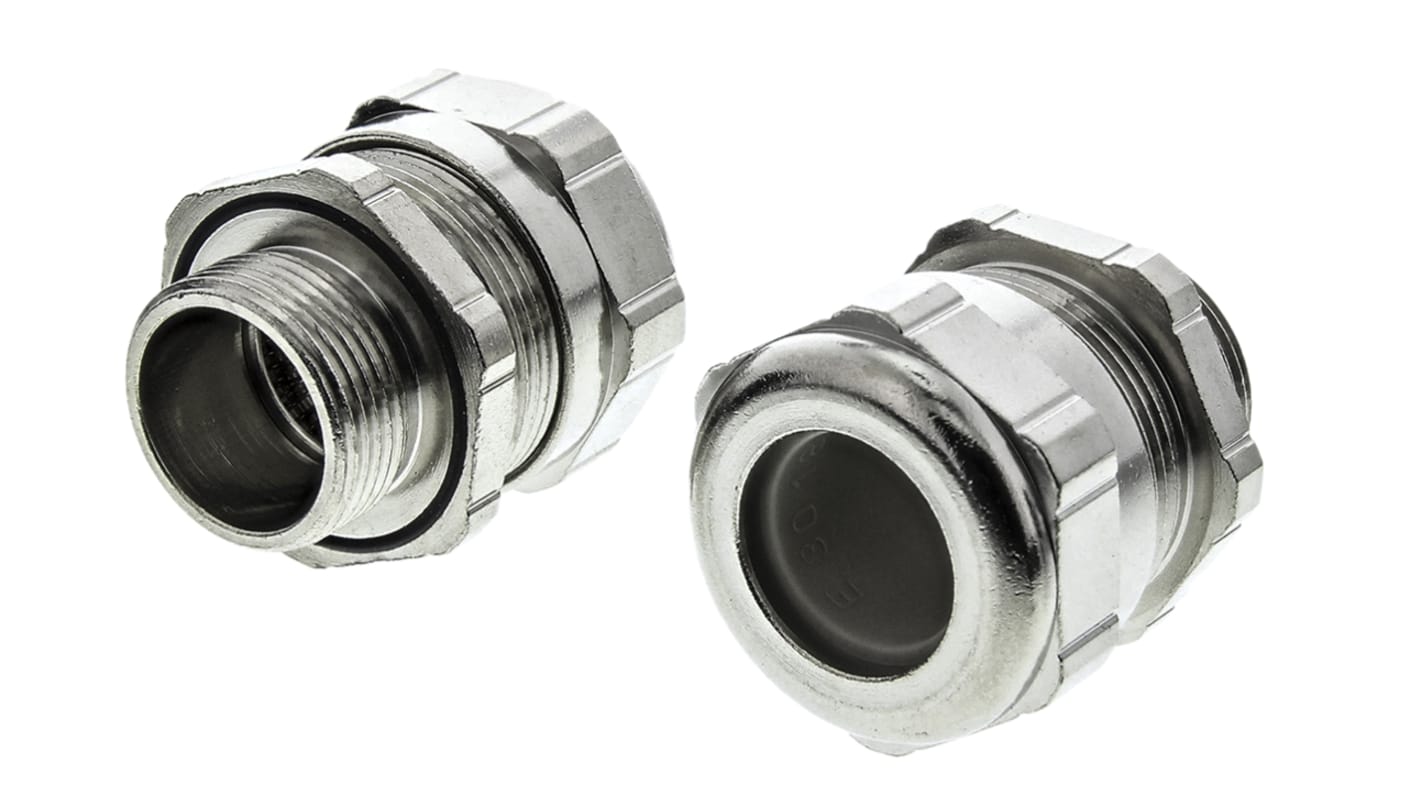

    ABB Metallic Nickel Plated Brass Cable Gland, M25 Thread, 14mm Min, 18mm Max, IP68

    RS Stock No.:
    264-7409
    Brand:
    ABB
    ABB
    View all Cable Glands
    3 In stock - FREE next working day delivery available
    Add to Basket
    Bag(s)

    Added

    Price 1 Bag of 5

    £113.09

    (exc. VAT)

    £135.71

    (inc. VAT)

    Bag(s)Per BagPer unit*
    1 - 9£113.09£22.618
    10 - 19£109.94£21.988
    20 - 29£106.97£21.394
    30 - 39£104.16£20.832
    40 +£101.49£20.298
    *price indicative
    RS Stock No.:
    264-7409
    Brand:
    ABB

    Legislation and Compliance


    Product Details

    Metric Cable Gland


    These cable glands are used throughout a number of industries, in relation to cable and wiring, particularly in instrumentation and control, automated systems, lighting, data and telecommunications environments.

    What are Cable Glands?


    Cable glands, also known as cable connectors are essential when it comes to terminating cables in a hazardous or a harsh environment, sealing and grounding which are all a necessity when it comes to safely passing a wire or a cable through an enclosure. The ingress protection provides a high level of environmental resistance, making them ideal in conditions where protection from moisture, fluid, dirt and dust is needed.

    These glands are to be used with screened cables and are designed to connect the screen of the cable to the enclosure screening system. This is achieved by the use of 2 tapered rings applying force onto an endless spring washer against the screen to ensure a positive contact.

    These cable glands for use with a screened cable are made from brass material and are metallic in colour. They have a polyolefin rubber seal, which provides good resistance to both chemicals and the weather. They are highly durable and operate in temperatures that are expansive. These metal glands have metric threads which provide strain relief for cables, preventing them from breaking and ensuring their reliability and stability.

    Features and Benefits


    • IP68 rated cable glands
    • Quick and easy to assemble
    • Various thread sized glands available depending upon your requirements
    • Different cable diameters available
    • Nickel plated brass body cable glands with santoprene (polyolefin) rubber seal
    • Metallic in colour
    • Glands operate over an expansive temperature range
    • Accessory locknut is NOT included

    Note

    Locknut is NOT included.

    Standards

    EN50262

    Standards

    EN50 082 - 1/2

    Specifications

    AttributeValue
    Thread SizeM25
    Maximum Cable Diameter18mm
    Minimum Cable Diameter14mm
    MaterialNickel Plated Brass
    ColourMetallic
    IP RatingIP68
    Locknut IncludedNo
    Minimum Operating Temperature-40°C
    Maximum Operating Temperature+135°C
    Standards MetCE, EN 50262
