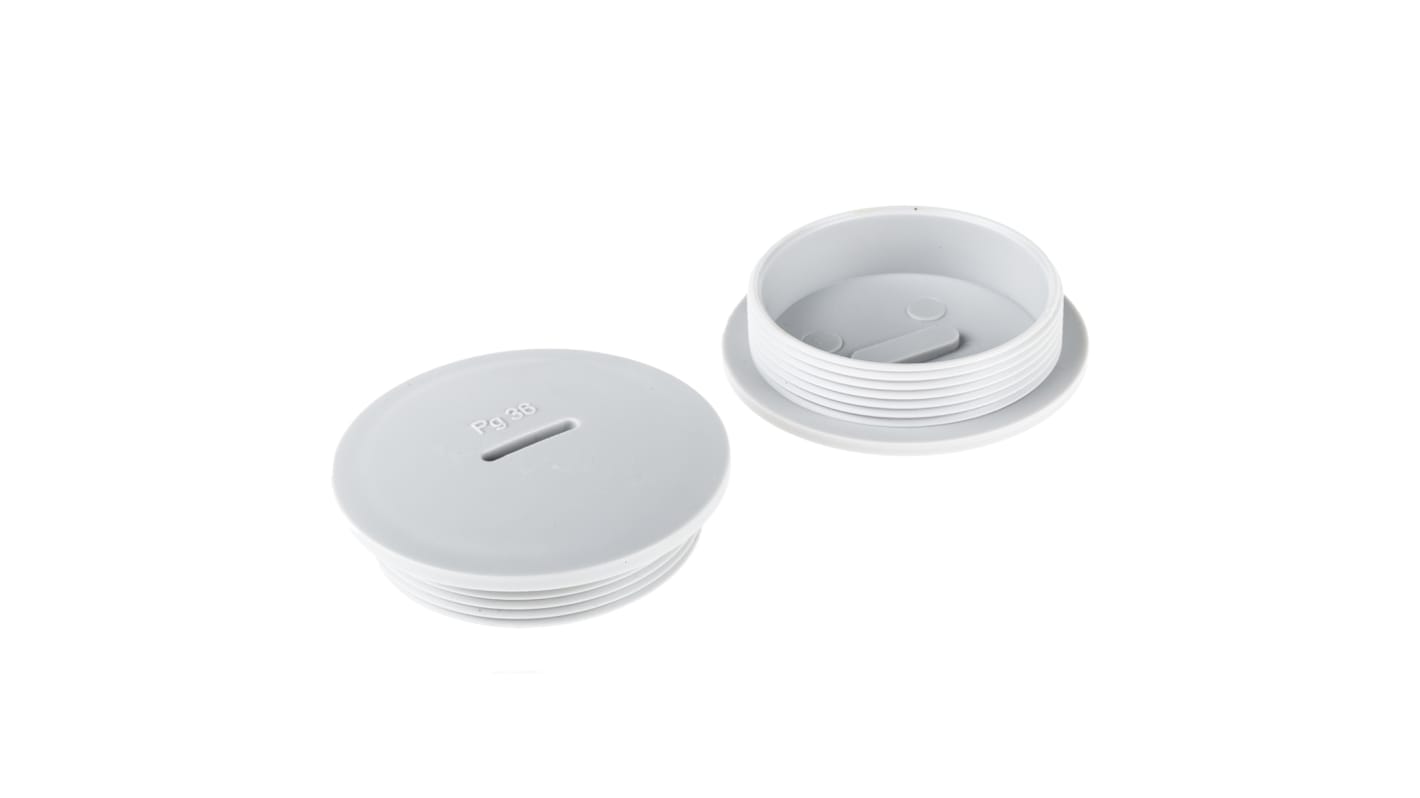

Lapp Blanking Plug, PG36, PS, 55mm Diameter, Threaded
- RS Stock No.:
- 243-9365
- Mfr. Part No.:
- 52006010
- Brand:
- Lapp
Save 10% when you buy 50 units
Subtotal (1 pack of 5 units)*
£8.73
(exc. VAT)
£10.475
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 220 unit(s) ready to ship
- Plus 65 unit(s) ready to ship from another location
- Plus 390 unit(s) shipping from 16 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £1.746 | £8.73 |
25 - 45 | £1.662 | £8.31 |
50 + | £1.57 | £7.85 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£14.97
(exc. VAT)
£17.96
(inc. VAT)
- RS Stock No.:
- 243-9365
- Mfr. Part No.:
- 52006010
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Thread Size | PG36 | |
Material | PS | |
Plug Type | Blanking | |
Diameter | 55mm | |
Threaded/Unthreaded | Threaded | |
Colour | Grey | |
IP Rating | IP54 | |
For Use With | Cable Screw Gland | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +70°C | |
Series | 5200 | |
Select all | ||
---|---|---|
Brand Lapp | ||
Thread Size PG36 | ||
Material PS | ||
Plug Type Blanking | ||
Diameter 55mm | ||
Threaded/Unthreaded Threaded | ||
Colour Grey | ||
IP Rating IP54 | ||
For Use With Cable Screw Gland | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Series 5200 | ||
- COO (Country of Origin):
- DE
Lapp Blanking Plug - PG
From Lapp, these blanking plugs are used to close other pre-drilled threaded bore holes. If a cable opening in a panel, junction box or machine housing has become redundant, these blanking plugs can be used to seal the bore hole.
Ensuring a low level of environmental resistance (or higher when coupled with an o-ring) these blind plugs have far more use than the merely aesthetic, and can help protect wiring and machinery components.
Features and Benefits
• Robust Glass Fibre Reinforced Construction
• IP54 Protection (IP68 when used with appropriate o-ring)
• PG Sizes
Applications
These blind plugs can be used in;
• Control Cabinet Manufacturing
• Distribution Boxes
• Junction Boxes
Accessories
These blind plugs can be used with corresponding Lapp o-rings for added environmental sealing.
• 664-4609 are M 12 x 1.5mm O-Rings
• 664-4606 are M 12 x 2.0mm O-Rings
• 664-4603 are M 16 x 1.5mm O-Rings
• 664-4612 are M 16 x 2.0mm O-Rings
• 664-4619 are M 20 x 1.5mm O-Rings
• 664-4615 are M 20 x 2.0mm O-Rings
• 664-4628 are M 25 x 2.0mm O-Rings
• 664-4621 are M 32 x 2.0mm O-Rings
• 664-4625 are M 40 x 2.0mm O-Rings
• 664-4634 are M 50 x 2.0mm O-Rings
