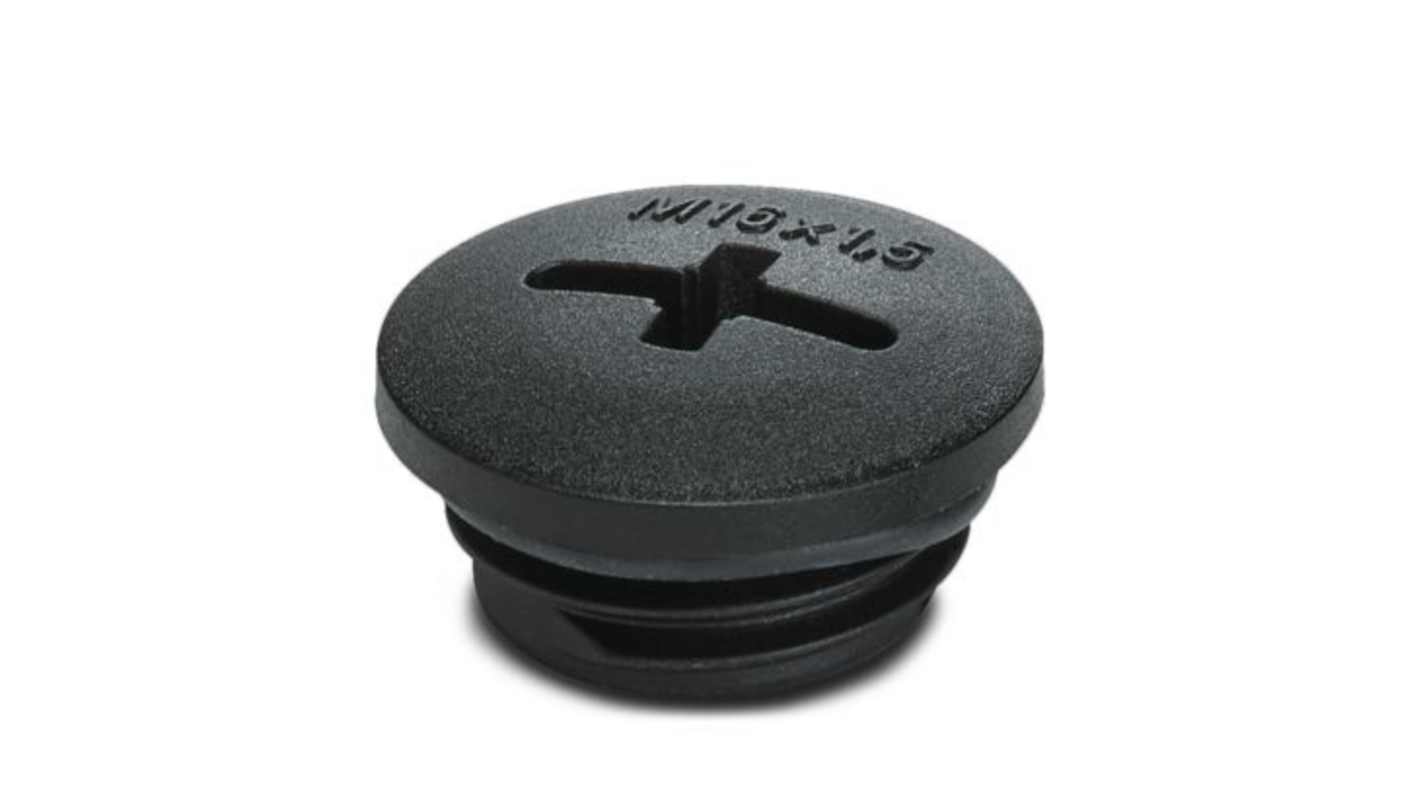

Phoenix Contact, M16 x 1.5 mm Thread, Polyamide, 20 mm Diameter Threaded
- RS Stock No.:
- 566-242
- Mfr. Part No.:
- 1045817
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£2.90
(exc. VAT)
£3.48
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 10 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £2.90 | £0.29 |
*price indicative
- RS Stock No.:
- 566-242
- Mfr. Part No.:
- 1045817
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Thread Size | M16 x 1.5 mm | |
| Product Type | Cable Gland Plug | |
| Threaded | Yes | |
| Material | Polyamide | |
| Diameter | 20mm | |
| Colour | Jet Black | |
| Hazardous Area Certification | No | |
| IP Rating | IP68, IP66 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Series | A-INSP-M16-68N-P-BK | |
| Standards/Approvals | EU REACH SVHC, EU RoHS, CHINA RoHS | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Thread Size M16 x 1.5 mm | ||
Product Type Cable Gland Plug | ||
Threaded Yes | ||
Material Polyamide | ||
Diameter 20mm | ||
Colour Jet Black | ||
Hazardous Area Certification No | ||
IP Rating IP68, IP66 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Series A-INSP-M16-68N-P-BK | ||
Standards/Approvals EU REACH SVHC, EU RoHS, CHINA RoHS | ||
- COO (Country of Origin):
- DE
The Phoenix Contact screw plug is engineered to provide robust connection solutions in a variety of settings. Crafted from high-quality PA material, it ensures durability and reliable performance, even in harsh environments. The product features a sleek jet black finish compliant with RAL 9005 standards, giving it a professional aesthetic. Designed for cable screw glands, this plug boasts practical dimensions and a secure M16 x 1.5 thread for seamless installation. Its exceptional degree of protection, rated at IP68 and IP66, guarantees reliable operation under challenging conditions, with ambient temperature support ranging from -40 °C to 100 °C. The inclusion of an EPDM O-ring enhances seal integrity, making it an ideal choice for demanding applications while reflecting the manufacturer’s commitment to quality and safety.
Constructed from durable PA material for longevity
Suitable for ambient temperatures extending from -40 °C to 100 °C
IP68 and IP66 rated for reliable protection against dust and water
Tightening torque of 1 Nm ensures a secure fit
Fitted with an EPDM O-ring for optimal sealing performance
Compact dimensions facilitate easy installation in confined spaces
